M0290-01Model 4900
2-18 Rev. 8/19
TM
Machine Operation
FUNCTION
FOLDPLANT
OFF
HITCH
FOLD
OFF
AXLE
WING
WHEELS
DP INCR L INCR
VACUUM
R INCR
DP DECR L DECR
R DECR
WORK
LIGHTS
BF
ONLY
OFF
MARKERS
OFF
RIGHTLEFT
OFF
RIGHT
LEFT
POINT ROW
TM

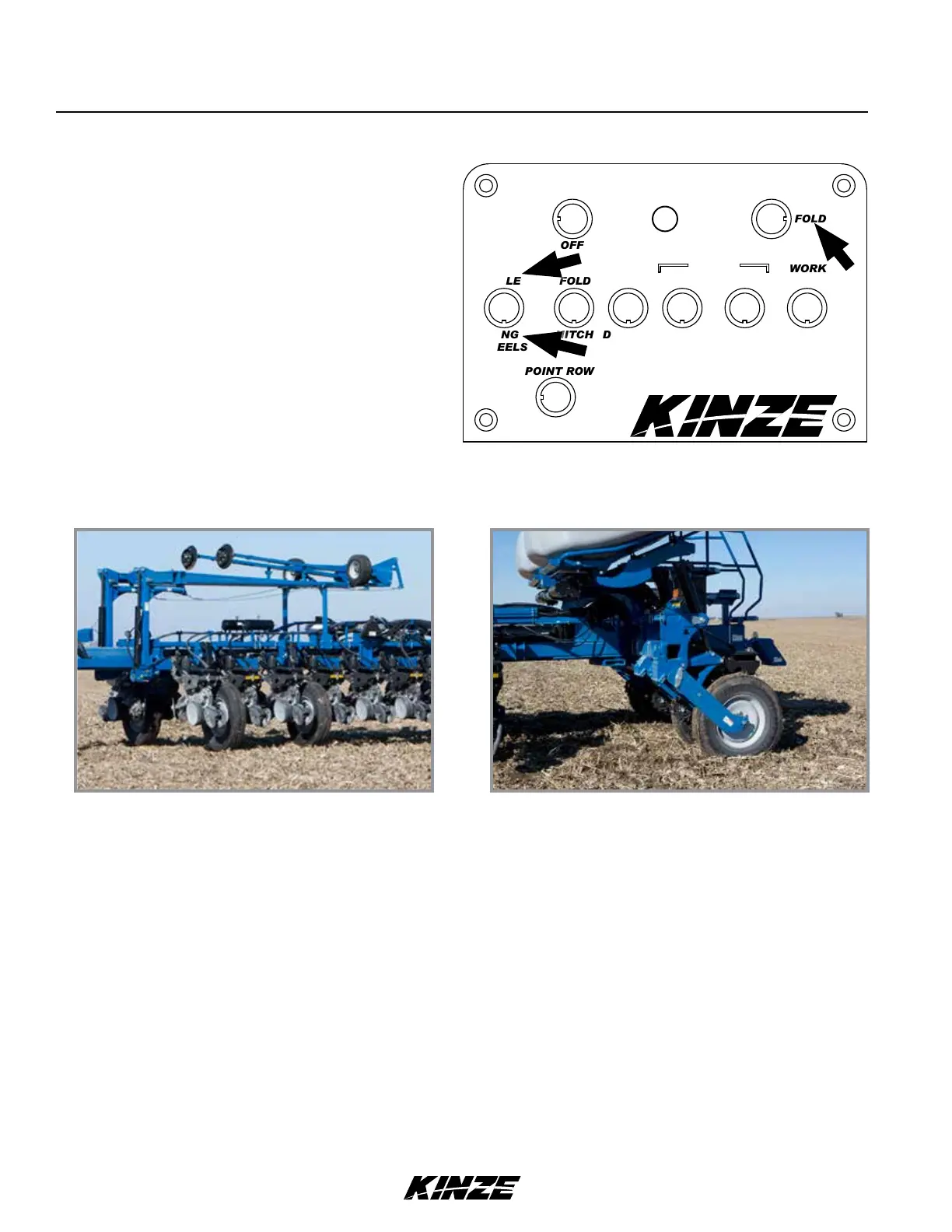

Control Box
2. Place FUNCTION switch on control box in fold
position.
3. Operate the proper hydraulic tractor control and press
and hold the WING WHEEL switch down to lower wing
wheels into field turnaround position.
4. Operate the proper hydraulic tractor control and press
and hold the AXLE switch up to lower transport axle
to field turnaround position. If equipped with flip axle,
move tires to field turnaround position as shown below.
Wing Wheels in Field Turnaround Position
Flip Axle in Field Turnaround Position
