Machine Operation
FUNCTION
FOLDPLANT
OFF
HITCH
FOLD
OFF
AXLE
WING
WHEELS
DP INCR L INCR
VACUUM
R INCR
DP DECR L DECR
R DECR
WORK
LIGHTS
BF
ONLY
OFF
MARKERS
OFF
RIGHTLEFT
OFF
RIGHT
LEFT
POINT ROW
TM
5. For planters equipped with drawbar hitch,
operate proper hydraulic tractor control and
press and hold the HITCH button down to
raise drawbar to unhook wings.
For planters equipped with 2-point hitch,
operate proper hydraulic tractor control to
lower drawbar to unhook wings.

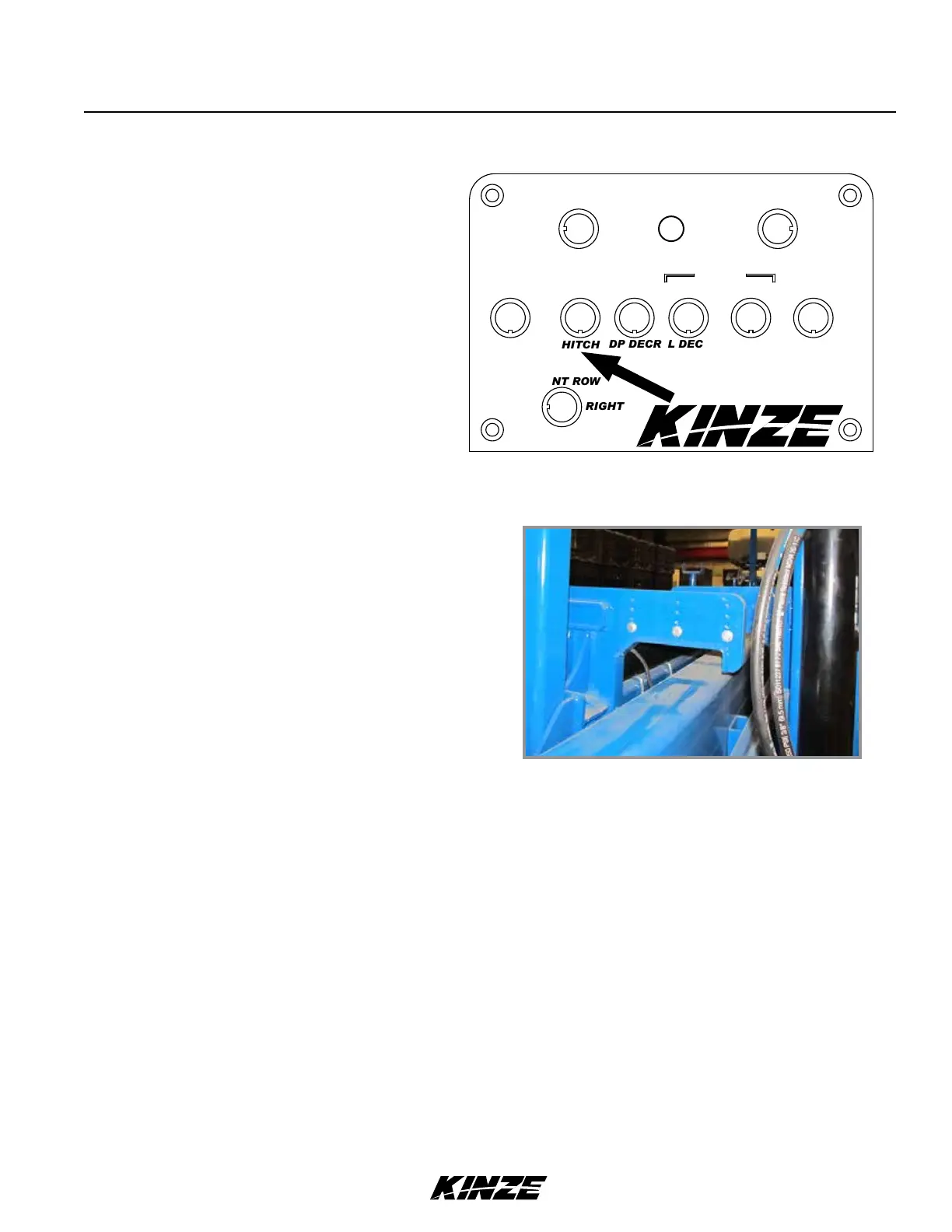

Control Box
Hitch Release from Wing Hook
To Next Page
