Kinze 4900 - Page 44

M0290-01Model 4900
2-24 Rev. 8/19
TM
Machine Operation
2. Operate proper hydraulic tractor control to raise planter into field turnaround position.
FUNCTION
FOLDPLANT
OFF
HITCH
FOLD
OFF
AXLE
WING
WHEELS
DP INCR L INCR
VACUUM
R INCR
DP DECR L DECR
R DECR
WORK
LIGHTS
BF
ONLY
OFF
MARKERS
OFF
RIGHTLEFT
OFF
RIGHT
LEFT
POINT ROW
TM
3. Place FUNCTION switch on control box in fold
position.
4. For planters equipped with drawbar hitch,
operate proper hydraulic tractor control and
press the HITCH switch down to raise drawbar
to level planter frame.
For planters equipped with 2-point hitch,
operate proper hydraulic tractor control to
raise drawbar to level planter frame.
Control Box
TM

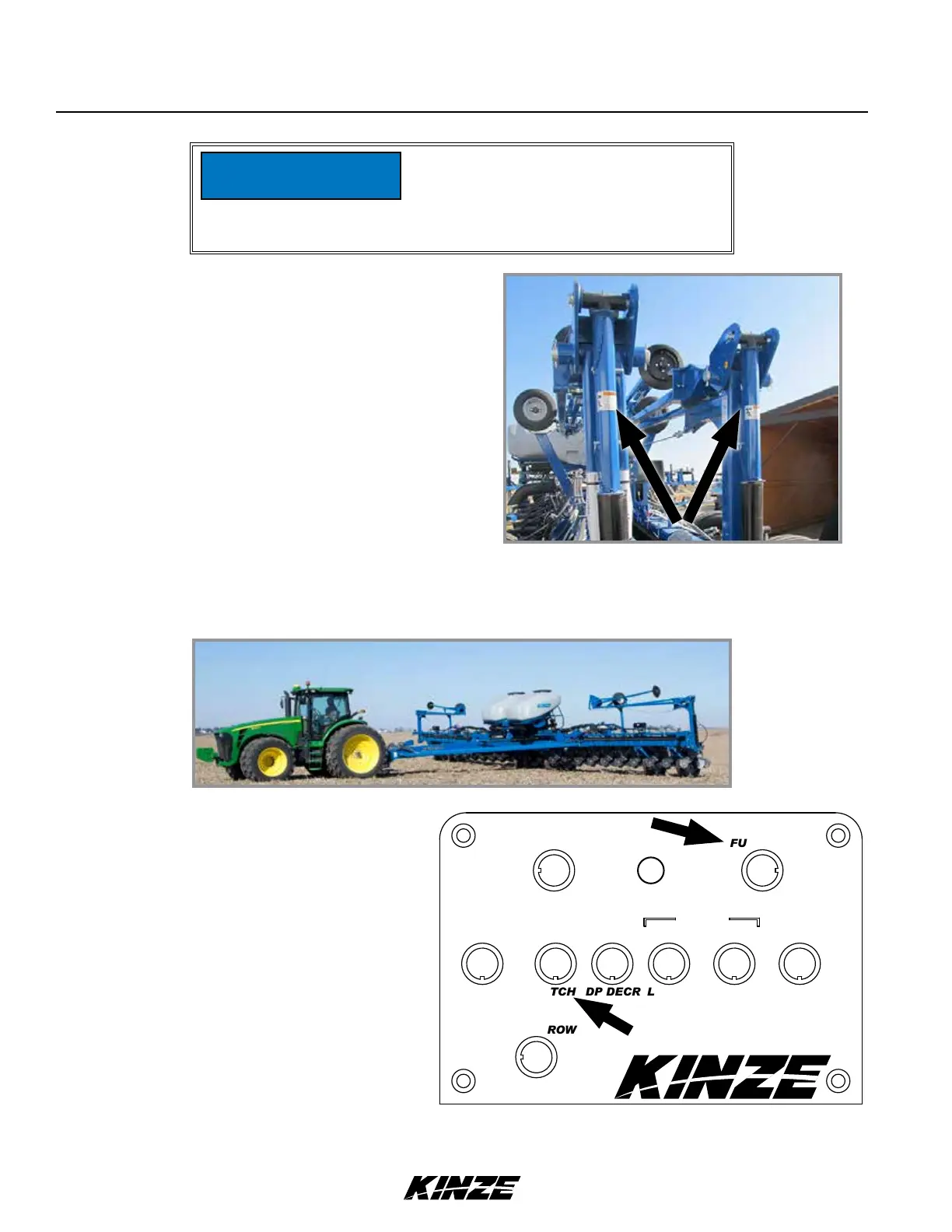

1. If equipped with row markers, remove lockups
from storage and install on marker cylinder rods.
Row Marker Safety Lockup Installed
DO NOT fold or unfold planter without
planter attached to a tractor. DO NOT
unhitch planter from tractor unless fully
folded for transport or fully unfolded with
planting units lowered to ground.
NOTICE
