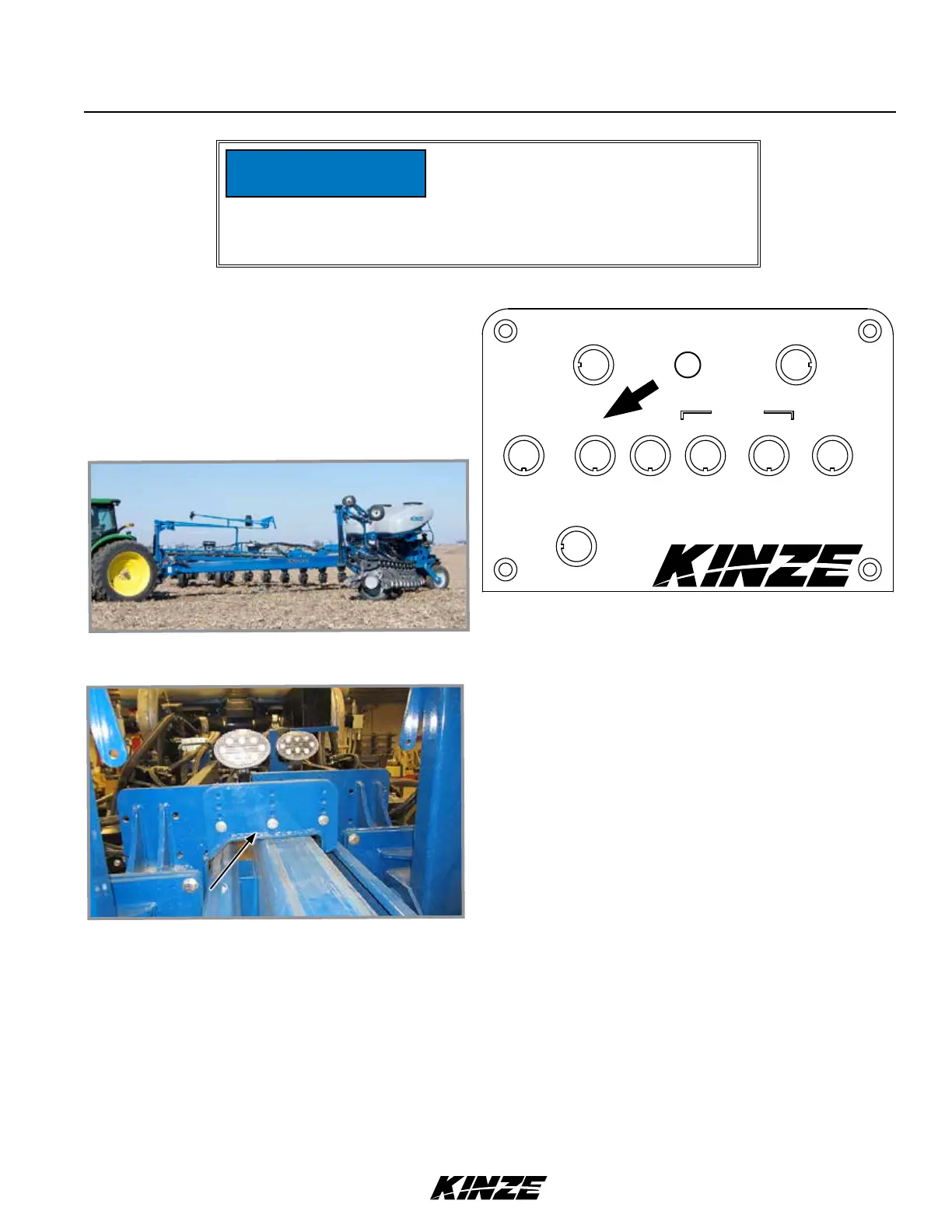

Machine Operation
5. Operate the proper hydraulic tractor control and
press the FOLD switch up until 2 hooks are over the
top of the inner hitch.
6. Lift drawbar or 2-point hitch to lock wings into place
after folding.
Planter Folding
Wing Hook Locked
FUNCTION
FOLDPLANT
OFF
HITCH
FOLD
OFF
AXLE
WING
WHEELS
DP INCR L INCR
VACUUM
R INCR
DP DECR L DECR
R DECR
WORK
LIGHTS
BF
ONLY
OFF
MARKERS
OFF
RIGHTLEFT
OFF
RIGHT
LEFT
POINT ROW
TM
Control Box
Unfolding planter without using tractor
to assist may cause equipment damage
especially in soft conditions or when
loaded with seed or fertilizer. Use tractor
to reduce stress on frame, drive, and
transport components.
NOTICE
