M0290-01Model 4900
2-26 Rev. 8/19
TM
Machine Operation
Control Box
FUNCTION
FOLDPLANT
OFF
HITCH
FOLD
OFF
AXLE
WING
WHEELS
DP INCR L INCR
VACUUM
R INCR
DP DECR L DECR
R DECR
WORK
LIGHTS
BF
ONLY
OFF
MARKERS
OFF
RIGHTLEFT
OFF
RIGHT
LEFT
POINT ROW
TM

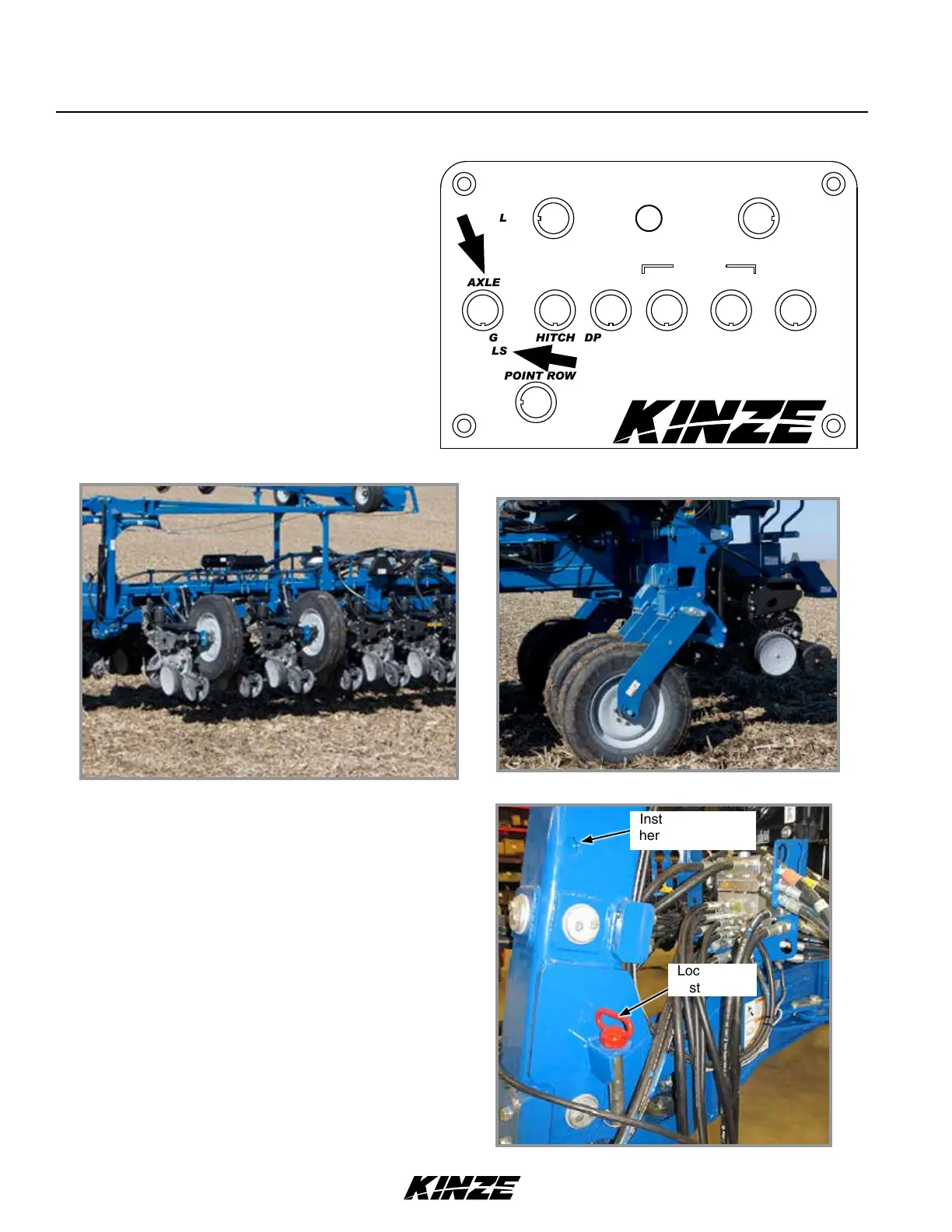

7. Operate the proper hydraulic tractor control and
press the AXLE switch up to raise transport axle
to either transport height, or if equipped with flip
axle, to the rest position as shown below.
8. Operate the proper hydraulic tractor control and
press the WING WHEELS switch down to raise
wing wheels into transport position.
Flip Axle in Rest Position
Wing Wheels in Transport Position
Install locking pin
here for transport
Locking pin
storage
9. Install locking pin on drawbar.
10. Install lockups.
Locking Pin for Drawbar Hitch
To Next Page
