INSTALLATION AND REMOVAL OF 3-POINT HITCH IMPLEMENT (WITH PTO SHAFT)
1. Place im p l ement on the level
ground.
2. Drive the tractor backward to move
as close as possible to an imple-
ment (approx. 5 cm). Then, adjust
the height of the lower link to be
parallel to the pins of the imple-
ment.
3. Put all the shift levers in the neu-
tral position.
H61O608b

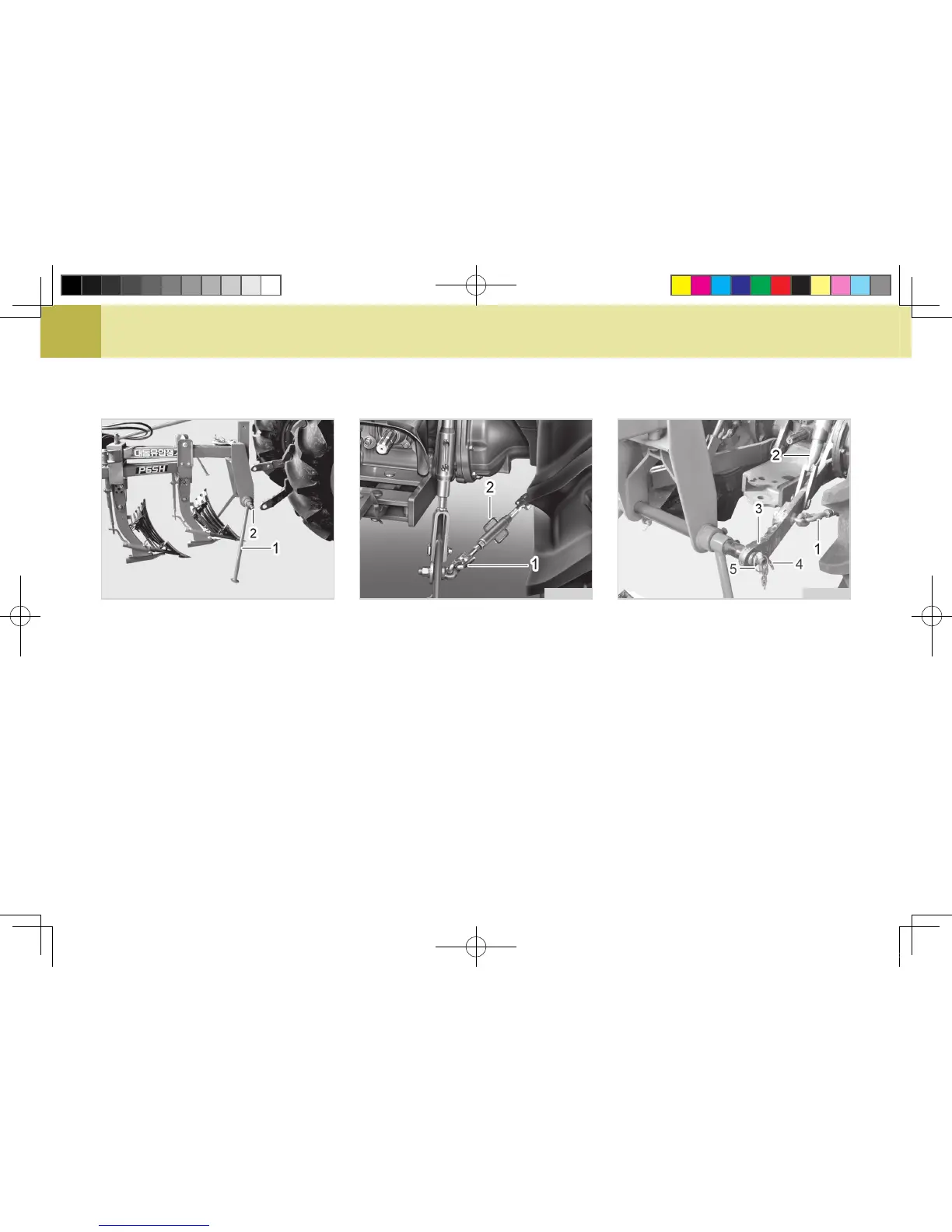

(1) Implement Support (2) Implement Pin (1) Check Link (2) Turn Buckle
H61O601A
4. Lengthen the chain by turning the
check link turn buckle.
5. First install the left lower link to the
implement pin and insert lynch pin
into the hole and turn the ring to
hold implement pin securely.
6. Install the right lower link to the
implement pin and insert lynch pin
into the hole and turn the ring to
hold implement pin securely .
H61O615A
(1) Turn Buckle (2) Lift Rod (RH)
(3) Lower Link (4) Implement Pin
(5) Lynch Pin
