U26O605A
ADJUSTMENT OF STABILIZER

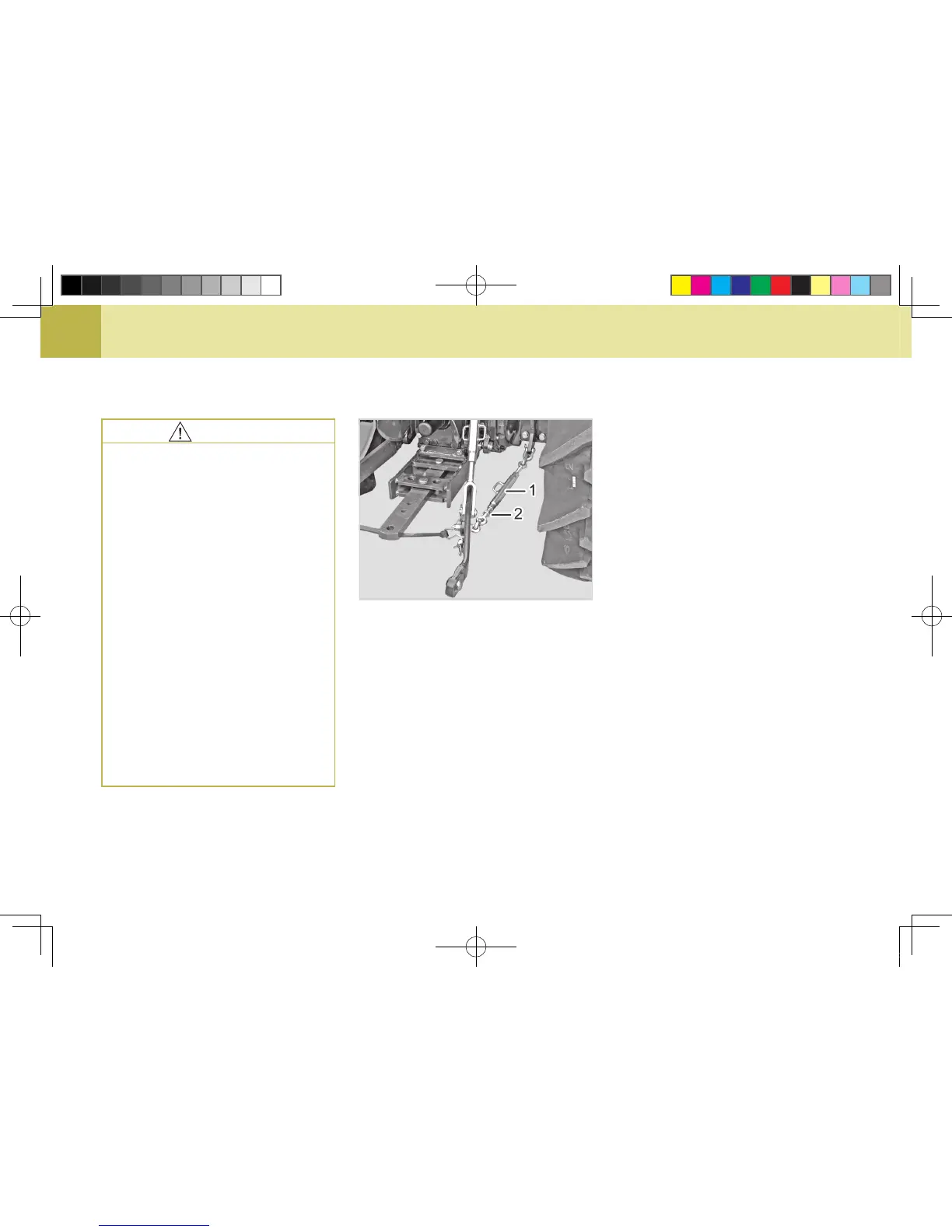

(1) Turn Buckle (2) Nut
1. Adjust the check chain to control
horizontal sway of the implement.
It is also used to set the implement
on the back of the tractor in center.
2. To adjust the check chain, pull out
the turn buckle and adjust it until
the desired transverse moving dis-
tance is obtained.
A plate describing how to at-
tach the implement is placed
on the standard implement of
our company.
When you are attaching an
implement not requiring any
traction, mount the assem-
bling spot of the top link into
the hole A.
When you are attaching an
implement (like plow) requir-
ing some traction, mount the
assembling spot of the top
link into the hole B, C.
When driving with an imple-
ment attached, make sure to
install the top link to the hole
A or B or put the draft control
to the “Deep” position.
CAUTION
THE IMPLEMENT
1. Park the tractor with the implement
on the level ground and lower the
implement all the way down.
Install the implement support as
needed.
2. Disconnect the top link and lower
links from the implement by re-
moving the pins.
3. Be sure to insert the set pins, lynch
pins and snap pins back to the
implement securely to keep those
safe.
4. Stop the engine and move the re-
mote hydraulic control lever back
and forth to relief the hydraulic
pressure in the system before dis-
connecting hydraulic couplers.
5. Put the top link back to its hook.
Hold both lower links together with
a rubber band. Otherwise, the low-
er links can contact with rear tires
and cause damage to the lower
links and tires while driving.
