Kioti DS3510 - Shuttle Shift Lever; P.T.O Shift Lever

4
-
15

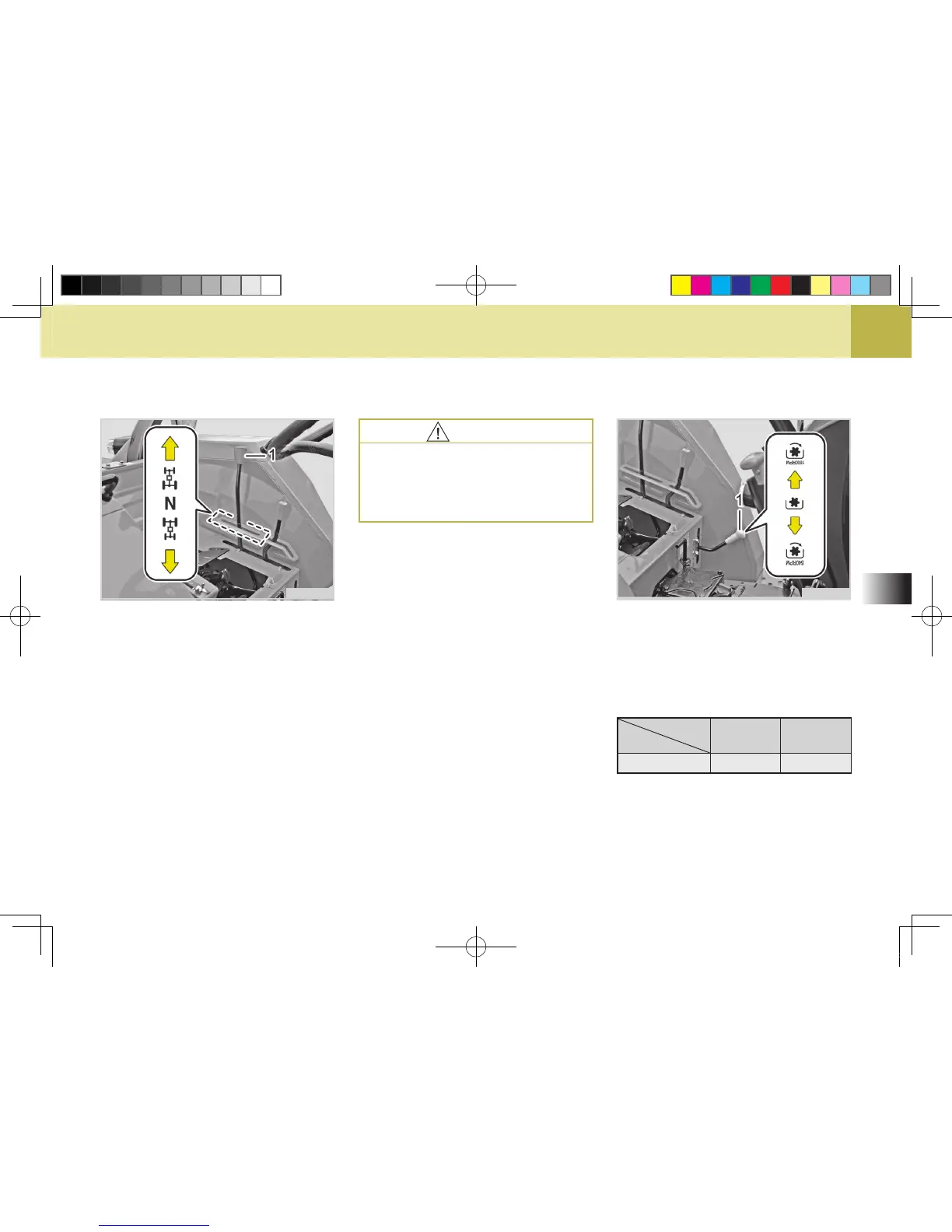

DESCRIPTION OF OPERATING SYSTEM
4
SHUTTLE SHIFT LEVER
U26O420A
(1) Shuttle Shift Lever
(F) Forward (R) Reverse
(N) Neutral

Reduce the speed before mov-
ing this lever since it is very
dangerous to switch the driv-
ing direction at a high speed.
CAUTION
(1) P.T.O Shift Lever
P.T.O SHIFT LEVER
U26O421A
This lever is to shift the P.T.O speed
into 2 speeds.
Shift
Model
1st 2nd
DS3510 540 1,000
(rpm)
This lever is to select the forward and
reverse driving direction. As it is a
synchromesh transmission, shift the
lever with the clutch disengaged com-
pletely.
Shifting this lever frequently can de-
teriorate the trans-mission’s life and
durability.
Put this lever into the neutral position
when the tractor is not driven.
