U26O430A

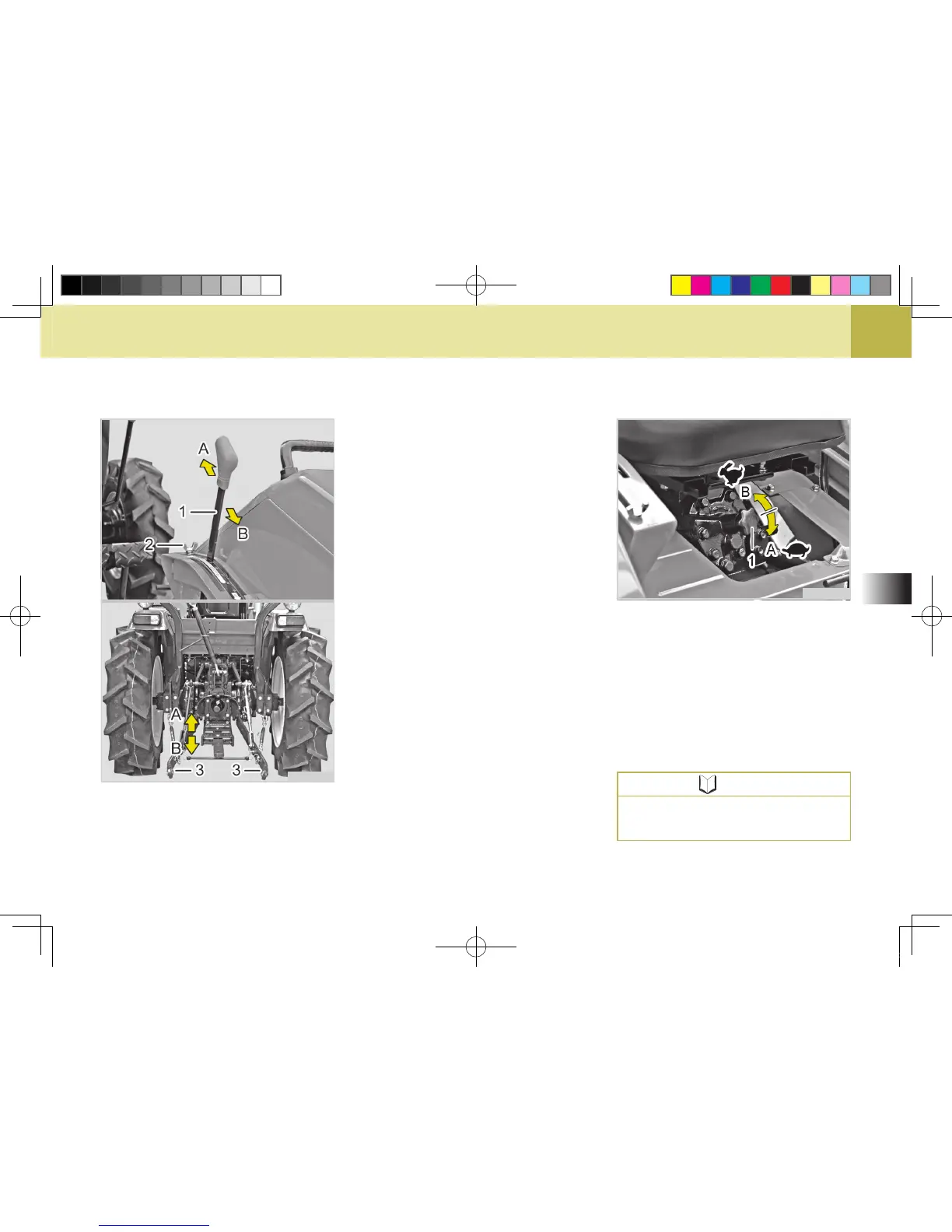

POSITION CONTROL LEVER
(1) Position Control Lever (2) Lock Bolt
(3) Lower Link
(A) Lowering (B) Lifting
The position control lever is used to
keep the plowing depth constant dur-
ing work.
The implement attached to the lifting
arm can be lowered by pushing the
lever while the implement is raised
by pulling the lever.
In order to limit the lowering height of
implements, use the lock bolt (2) to
limit the operating range of the lever.
Turning the lever counterclockwise
increases the lowering speed while
turning it clockwise decreases the
lowering speed. Also, turning it clock-
wise to its end can x the implement
to a certain position.
(1) Lowering Speed Control Knob
(A) Low Speed (B) High Speed
U26O431A
LIFTING ARM (LOWER LINK)
SPEED CONTROL KNOB
This lever does not control the
lifting speed of the lifting arm.
NOTE
