COMBINATION SWITCH

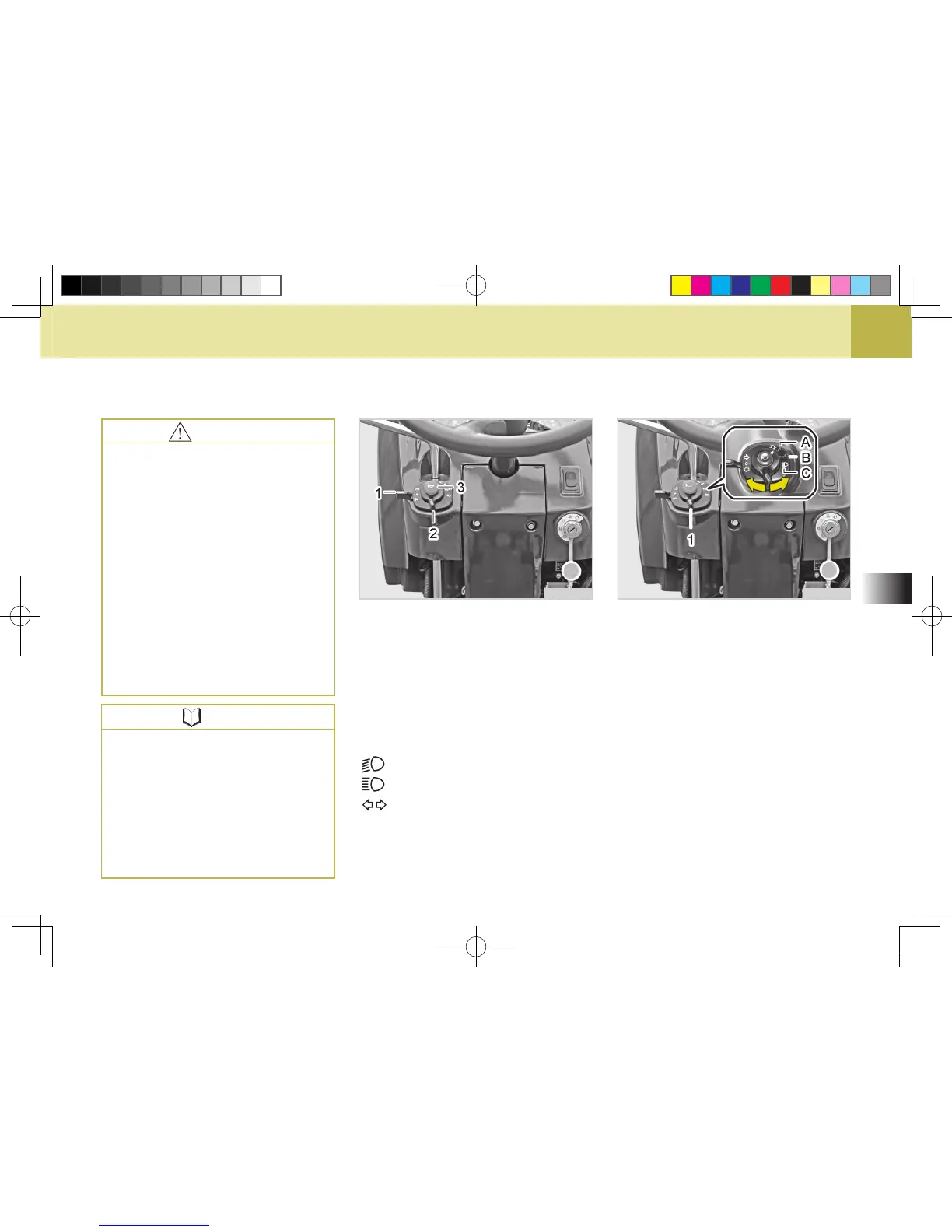

(1) Head Light Switch
(A) “OFF” (B) Low Beam "ON"
(C) High Beam "ON"
U26O406A
The combination switch consists of
the head light, turn signal light, and
horn switches. Its function by its po-
sition is as follows:
HEAD LIGHT SWITCH
The head light switch can be operated
only while the key switch is turned to
the “ON” position. Turning the head
light switch clockwise one click will
illuminate the low beam head lights
while turning it one more click will il-
luminate the high beam head lights.
U26O405A
(1) Turn Signal Light Switch
(2) Head Light Switch
(3) Horn Switch
OFF: Head light and tail light “OFF”
: Low beam and tail light "ON"
: High beam "ON"
: Turn signal light and tail light "ON"
Stop the engine immediately if
the oil pressure warning lamp
does not go “OFF” after the
engine is started.
The engine
may be severely damaged.
If the battery charge warning
lamp does not go “OFF” after
the engine is started, check
the electrical systems, such
as the alternator, for damage.
Continuing to use the engine
under this condition can dis-
charge the battery or damage
other electrical devices.
CAUTION
The ignition key is not directional
and can be inserted in any direc-
tion. Also, be careful not to leave
the tractor unattended while key
is in ignition.
The horn, turn signal lamp, and
hazard lamp can be operated
without the key inserted.
NOTE
