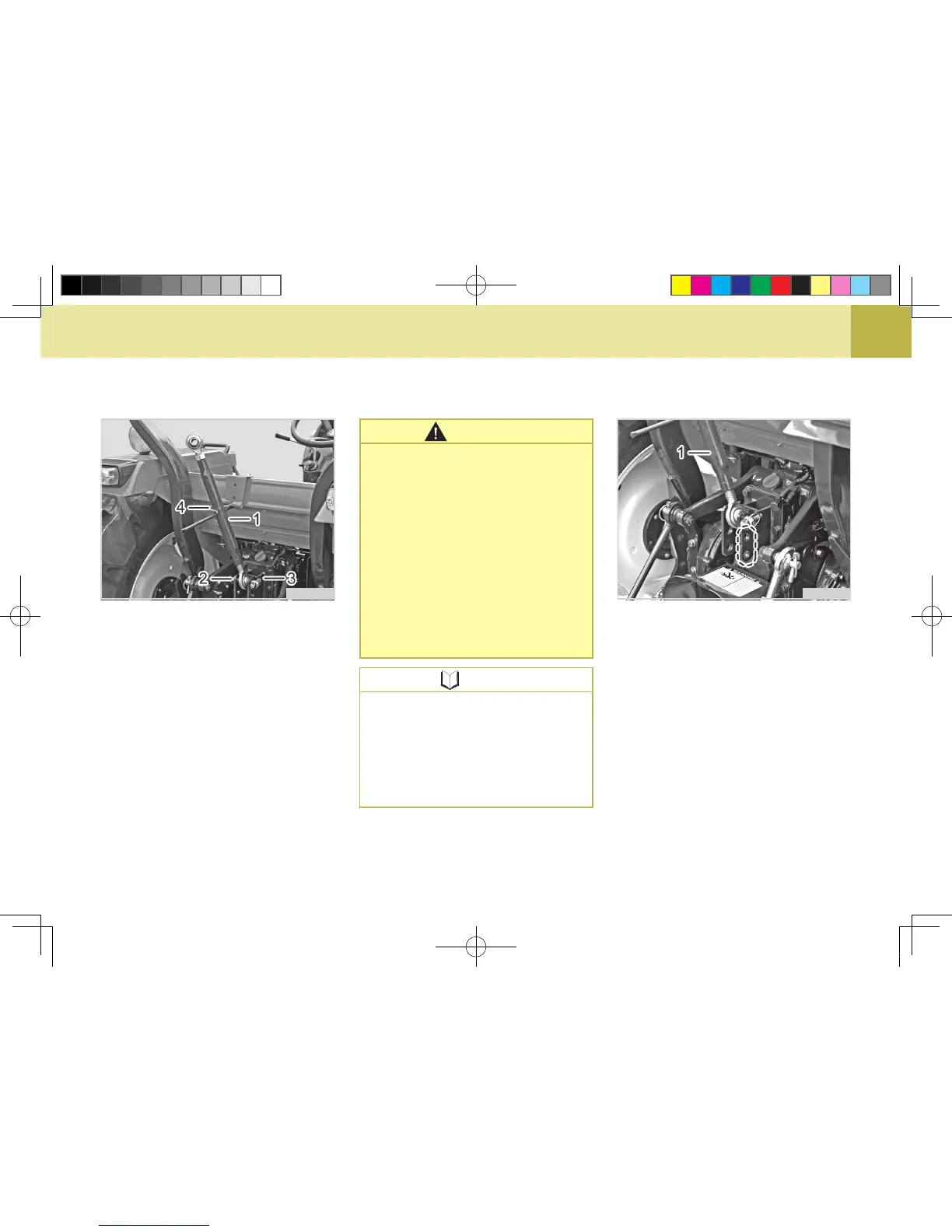

3-POINT HITCH IMPLEMENT OPERATION
6
-
5
PRECAUTION FOR INSTALLING
AND USE OF TOP LINK HOLES
U26O604A
1. Adjust an angle of the implements
to the desired position by shorten-
ing or lengthening the top link.
2. Adjusting a proper length of imple-
ments varies as a type of imple-
ments used.
(1) Top Link(1) Top Link (2) Pin
(3) Retainer Pin (4) Top Link Hook
1. Install the top link to the desired
position, and install the pin and re-
tainer pin.
2.Fixtoplinkwithxednutafterad-
justing top link.
U26O603A
ADJUSTMENT OF TOP LINK

Stop the engine and lower
the attachment on the ground
prior to disconnecting the lift
rod from the lower link. Check
that the attachment for proper
supporting and there’s pres-
sure remained in the hydraulic
system to remove the lift rod
holding the pin. To eliminate
the remained pressure, move
the hydraulic adjusting lever
back and forth several times.
WARNING

When there is no implement at-
tached, fix the lower link to the
check link (LH/RH) so that it
does not contact with the rear
wheel.
Secure the top link to the hook.
NOTE
