U26O731A

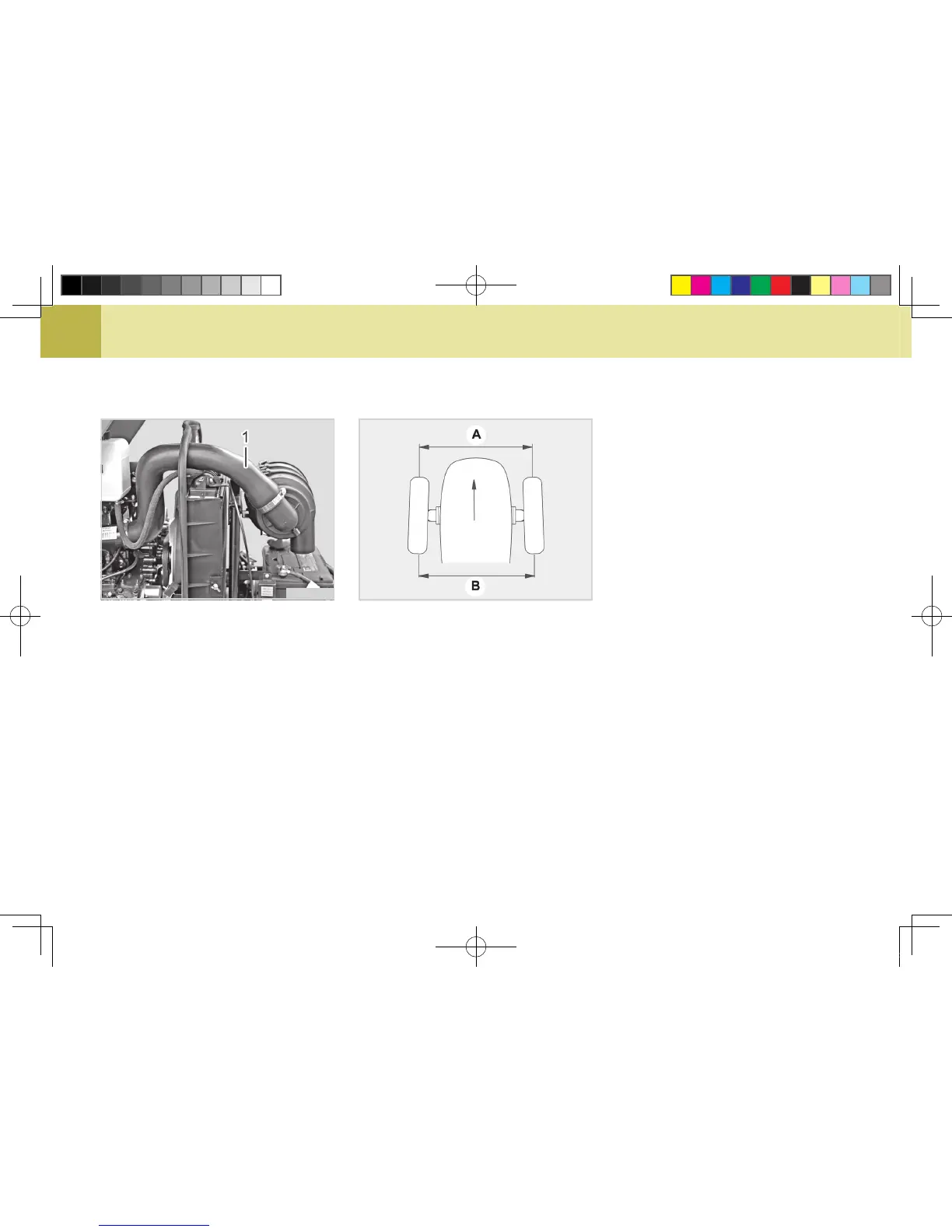

(1) Air Line Hose
T46OA36A
1. If the hose clamps are loose, tight-
en clamps securely.
2. If the hoses and clamps are dam-
aged, you must replace them at
once. Failure to do so could lead
to engine damage.
3. Loosen clamp may allow dust and
contaminants to enter engine.
(A) Wheel - To - Wheel Distance At Front
(B) Wheel - To - Wheel Distance At Rear
1. Park tractor on a at place.
2. Tu r n s t e e r i n g w h e e l s o f r o n t
wheels are pointed straight ahead.
3. Lower the implement, lock the
parking brake and stop the engine.
4. Measure distance between tire
beads (center) at front of tire and
hub height.
5. Measure distance between tire
beads at the rear of tire and hub
height.
6. Front distance should be 2~8 mm
less than rear distance. If not, ad-
just ball joint length.
To Next Page
