To avoid accidents:
Pressurized diesel fuel or hy-
draulic fluid may be sprayed
on your skin or eyes, lead-
ing to a severe injury or even
death.
To check leakage, use a board
and wear protective gloves
and goggles.
If your eyes come into contact
with the hydraulic fluid, see
your doctor immediately.
Never try to disconnect the
tube and quick coupler while
the tractor and implement are
in operation. Release the pres-
sure by operating the lever
after the engine is stopped.
WARNING
HYDRAULIC BLOCK
Never let anyone get in the
loader and use the loader as a
workbench. Otherwise, it may
lead to injury or even death.
Do not stand under the lifted
loader or get close to it. Also,
lower the loader arm onto the
gro u n d befor e leaving the
tractor. Otherwise, it may lead
to injury or even death.
Never carry a big object with
the loader unless a proper
implement is attached. Keep a
carried object low during driv-
ing. Otherwise, it may lead to
injury or even death.
WARNING
The hoses and couplers for in-
stallation are supplied with the
loader.
For detail about implement in-
stallation method, refer to KIOTI
front loader owner’s manual.
NOTE

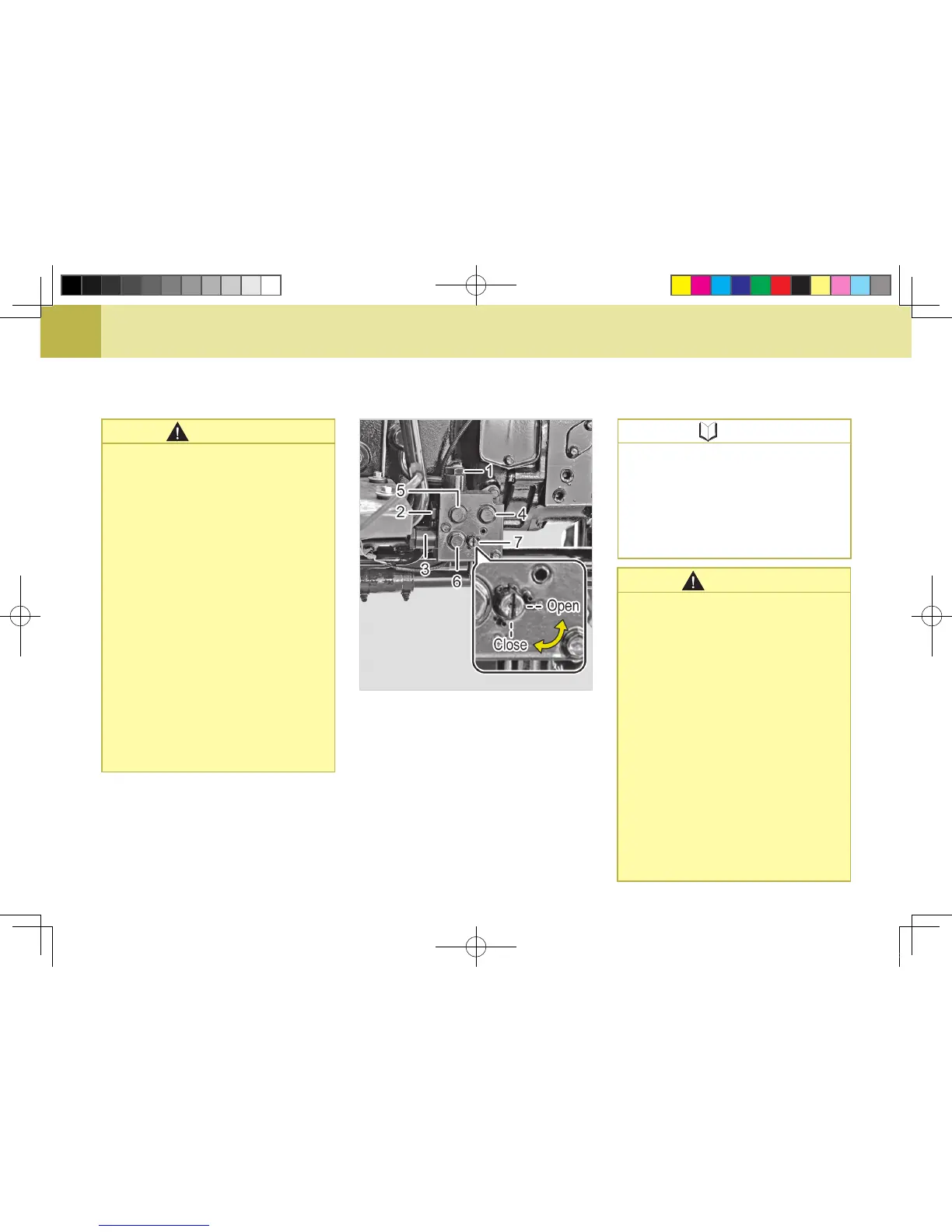

(1) To the Tank (2) Relief Valve
(3) To The Hydraulic Cylinder
(4) OUT PORT (To The Exterior Implement)
(5) IN PORT (“T” PORT Of The Exterior Implement)
(6) R PORT (
Carry-Over Port Of The Exterior Implement
)
(7) Adjusting Screw
U26O432A
To Next Page
