M55O4M3A

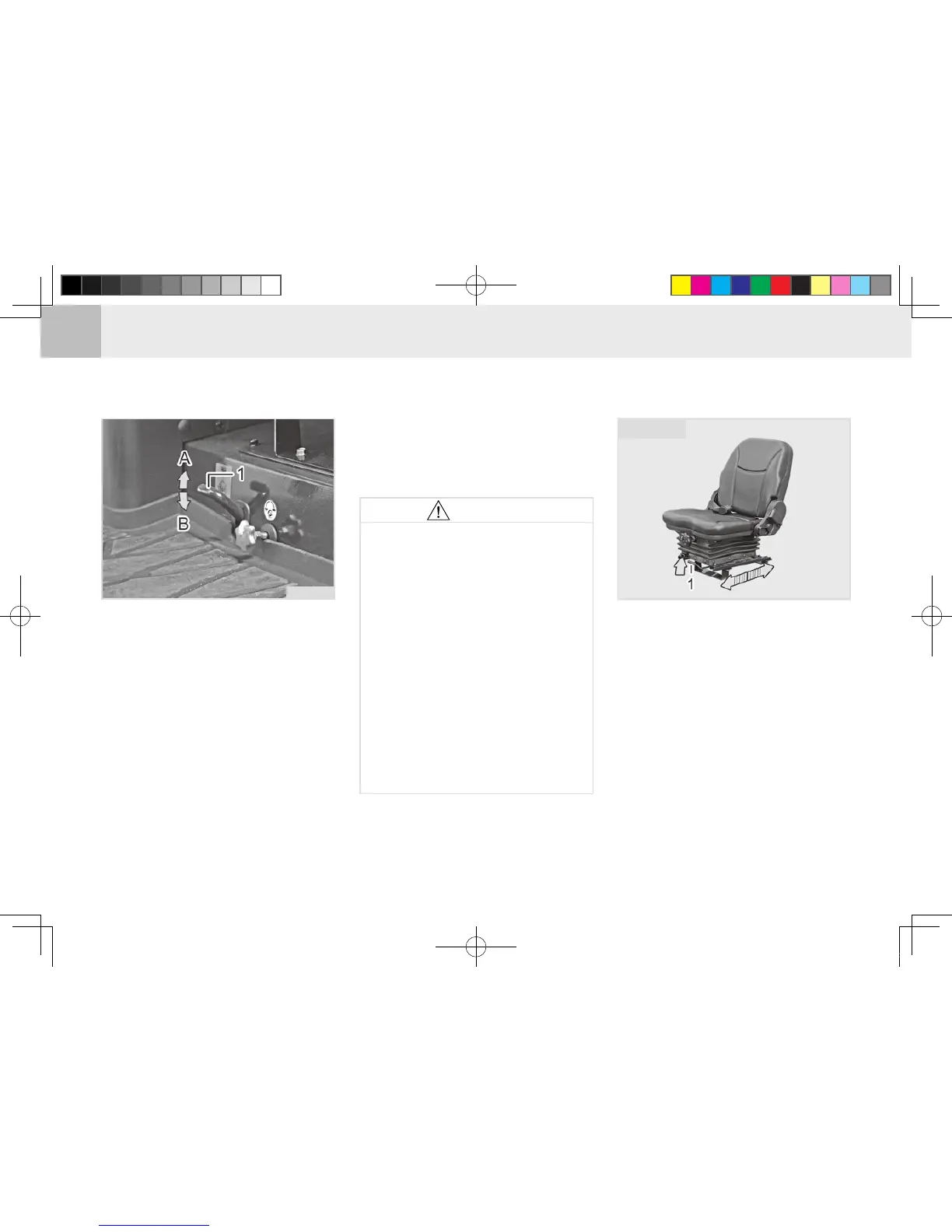

DIFFERENTIAL LOCK PEDAL
(1) Lock Pedal
(A) Release to "DISENGAGE"
(B) Depress to "ENGAGE"
The differential lock is to secure the
differential system and keep the
wheel rotation on both sides the
same in order to enhance the trac-
tion of the rear axle.
Depressing the pedal engages the
differential lock while releasing the
pedal disengages the differential lock.
Use this system under the following
conditions:
1. When any wheel slips and the
tractor does not move in the eld.
2. When it is hard to break away
from a soft or muddy eld.
The differential lock should be
engaged only while the driving
clutch is engaged. If the differ-
ential lock pedal does not move
when depressing it, try to de-
press it again after releasing it.
When engaging the differential
lock, reduce the engine speed.
After engaging it, accelerate
the tractor.
Make sure to set the steering
wheel in the straight ahead po-
sition while the differential lock
is in use. Otherwise, the differ-
ential system can be damaged.
•
•
•
CAUTION
(1) Seat Adjustment Lever
M55O4M4A
SEAT ADJUSTMENT
SEAT SLIDING
To adjust the seat position, pull the
lever (1) up under the front of the
seat, slide the seat to the desired po-
sition, and then release the lever.
Make sure that the seat is rmly xed
by moving it gently after adjustment.
CABIN
