Reduce speed before moving
this lever since it is very dan-
gerous to switch the driving
direction at a high speed.
•
CAUTION
celerated under 5.6 m/h (9 Km/h)
and then the driving direction is
changed to reverse.
If the shuttle shift lever is placed in
the neutral position from forward or
reverse, the tractor is decelerated
slowly due to the lose of powers.

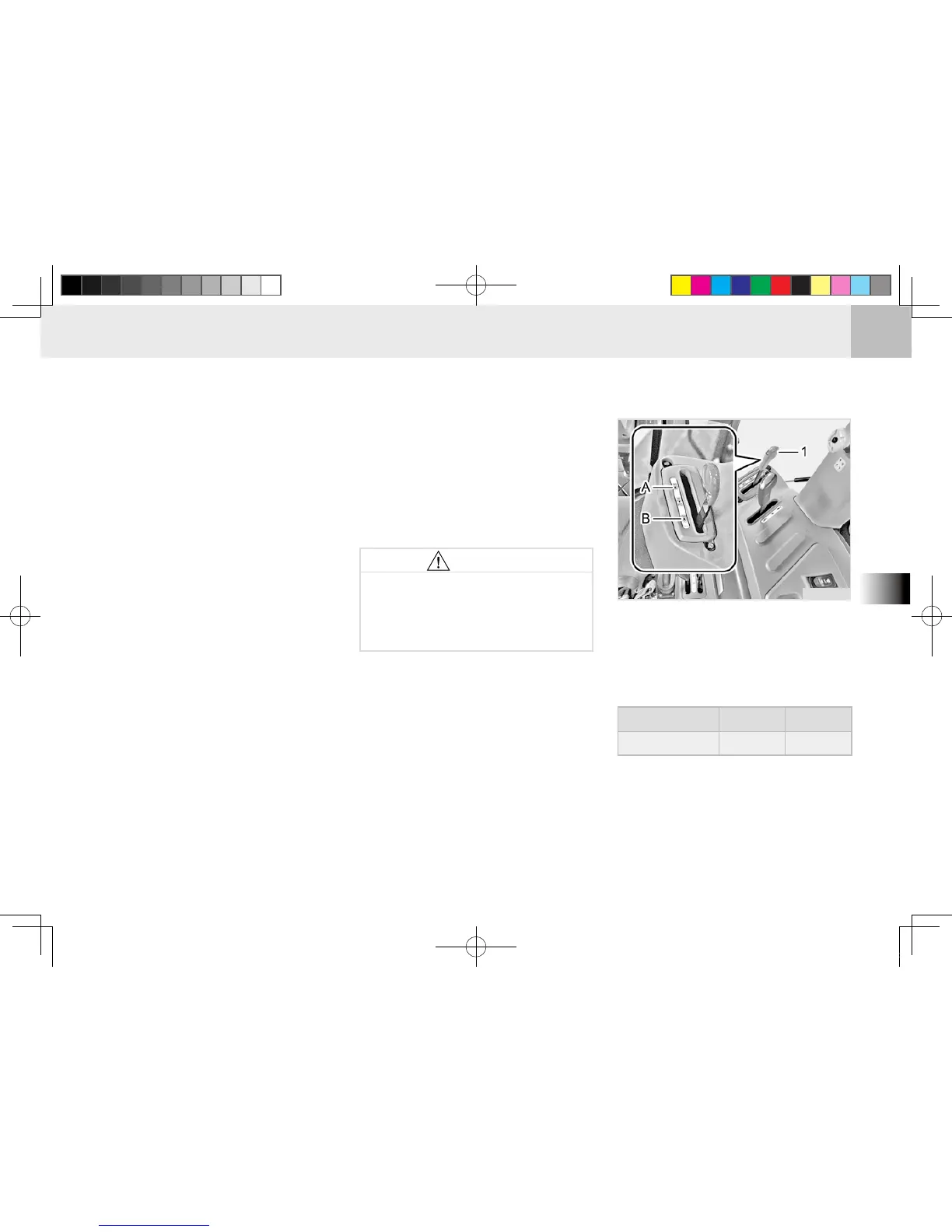

(1) PTO Shift Lever
(A) 1st (B) 2nd
PTO SHIFT LEVER
Tf1O435A
This lever is used to shift to one of
the 2 PTO speeds as follow:
When you work in light load, use 2nd
PTO stage.
For high load work, select the 1st
gear (540) position and set the en-
gine speed to 2500 RPM to obtain
540 RPM of the PTO speed.
(rpm)
Shift 1st 2nd
PTO rpm
540 540E
▶ HOW TO USE THE SHUTTLE SHIFT
LEVER
To select the driving direction, if
the shuttle shift lever is pushed for-
ward with lifting slightly, the tractor
is driving forward, and if the shuttle
shift lever is pulled backward with
lifting slightly, the tractor is driving
reverse.
At i nitia l st art in g, c ont ro l th e
shuttle lever with the engine rpm
decreased. When the tractor has
st art ed to m ov e, d epr es s th e
foot throttle pedal to increase the
speed.
If the transmission temperature is
low, there may be starting-shock
during shifting. Make sure to warm
up the engine before driving the
tractor.
Even at the high speed you can
shift the shuttle lever without de-
pressing clutch pedal. If the shuttle
shift lever is pulled back during
forward driving, the tractor is de-
To Next Page
