RX6030 / RX7030 / RX8030
INSTRUMENT PANEL

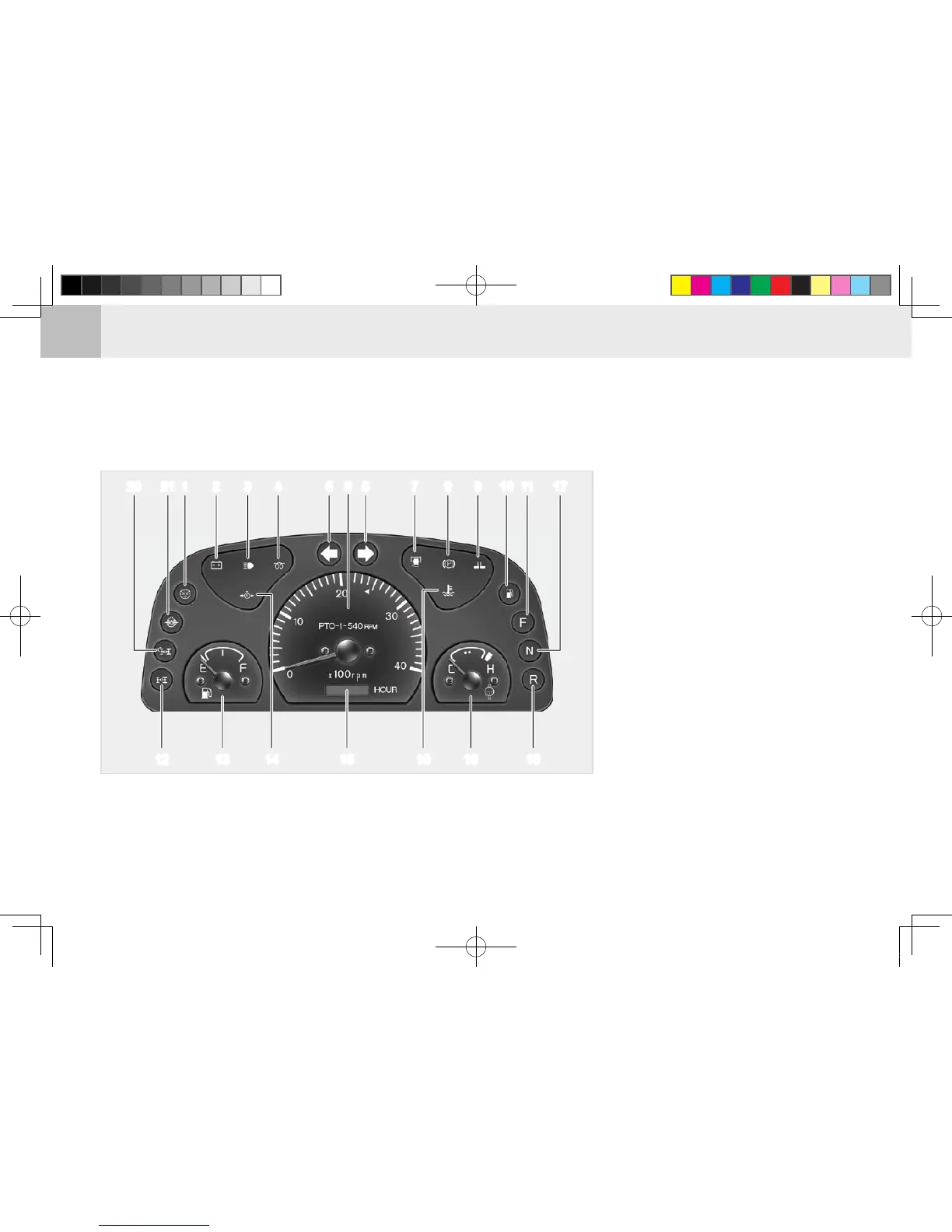

Symbols on the instrument panel come on when the key switch is turned to the "ON" position.
12120 2 3 4 5 5 7 9 8 10 11 17
1819 161312 1514
612120 2 3 4 5 5 7 9 8 10 11 17
1819 161312 1514
6
T12O460A
(1) Air Filter Clogging Warning Lamp
(2) Battery Charge Warning Lamp
(3) High Beam Indicator
(4) Glow Plug Indicator
(5) Turn Signal Lamp
(6) Tachometer
(7) PTO ON Indicator
(8) One Side Brake Lamp
(9) Parking Brake Indicator
(10) Low Fuel Level Warning Indicator
(11) Forward Indicator
(12) 4WD Operation Indicator
(13) Fuel Gauge
(14) Engine Oil Pressure Warning Lamp
(15) Hour Meter
(16) Coolant Temperature Gauge
(17) Neutral Indicator
(18) Reverse Indicator
(19) Coolant Temperature Warning Lamp
(20) Quick / Turn Warning Lamp (If Equipped)
(21) Differential Lock Warning Lamp
[ RX6030 RX6030C ]
