REMOTE HYDRAULICS
DOUBLE ACTING VALVE

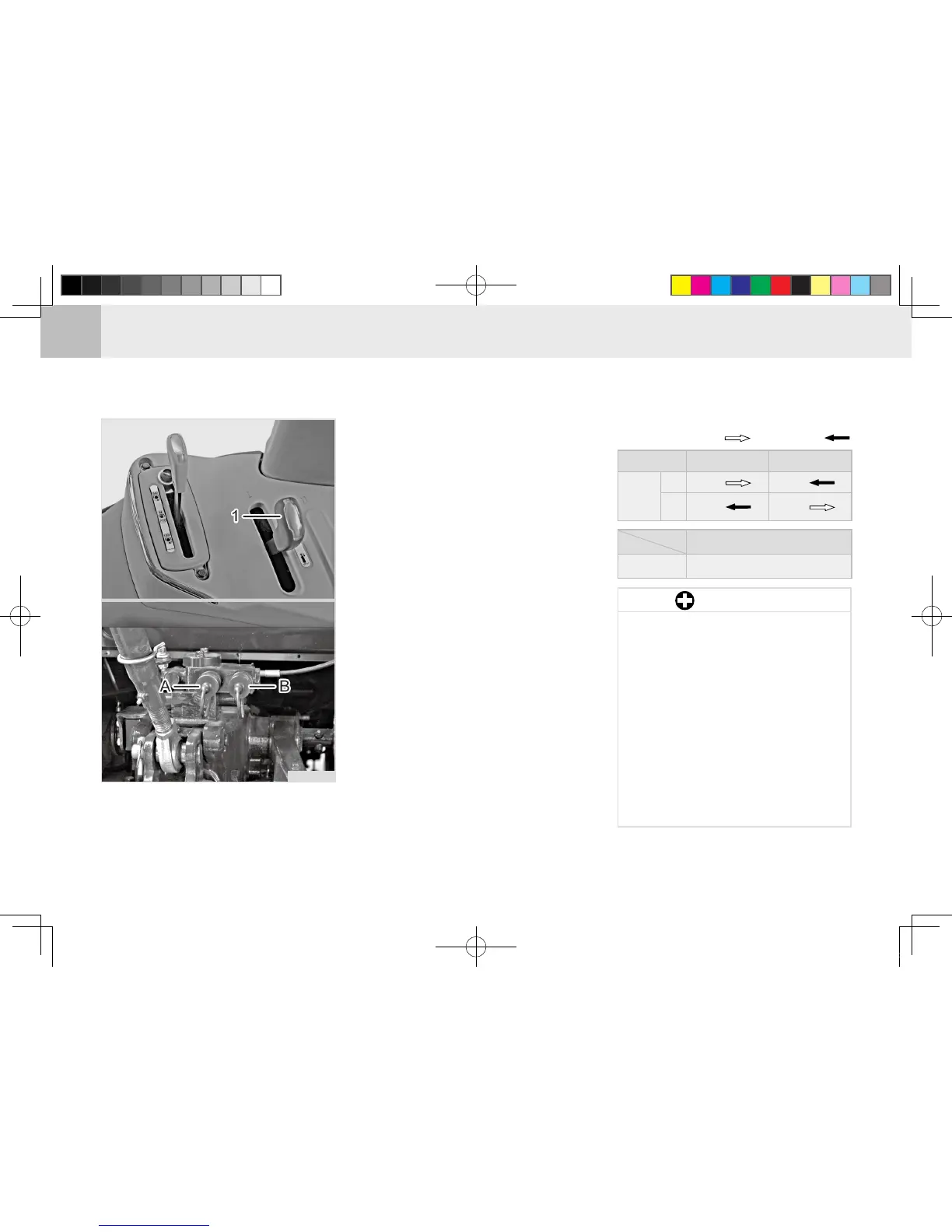

(1) Double Acting Valve 1 & Lever 1
(A) Port A (B) Port B
T11O454A
KIOTI supplies self-return type of the
double acting valves.
Coupler Size
Port A, B PT 1 / 2
Pressure
Returning
Lever 1 Push Pull
Valve
1
port
A Out In
B In Out
DOUBLE ACTING LEVER
Put the detent valve operating
lever into the neutral position
when the hydraulic implement
is not in use. If the detent
valve is kept in the operating
position for an extended pe-
riod of time, the relief valve is
kept open and the temperature
of the hydraulic fluid rises,
leading to damage of various
hydraulic parts, such as the
oil seals and O-rings.
IMPORTANT
For the self-return type double act-
ing lever, it returns to its original
positiontoblockthehydraulicuid
when it is pushed/pulled and then
released. However, this type of
double acting valve lever should
be pulled or pushed continuously
for operation which is suitable for
an implement with a short operat-
ing time, such as the hydraulic cyl-
inder.
Optionally, KIOTI is suppling the sec-
ondary remote valve such as Detent
or self return types of valve.
While you add a detent type of valve
to your tractor, when the relief valve
starts to operate by operating the
double acting lever, put the lever
into the neutral position immediately.
If the relief valve operates continu-
ously, the oil is overheated, leading
to damage to related parts.
