This joystick lever is used mainly to
operate the front end loader when at-
tached to the tractor.
For detailed information, refer to
"Handling Loader" in Chapter 6.

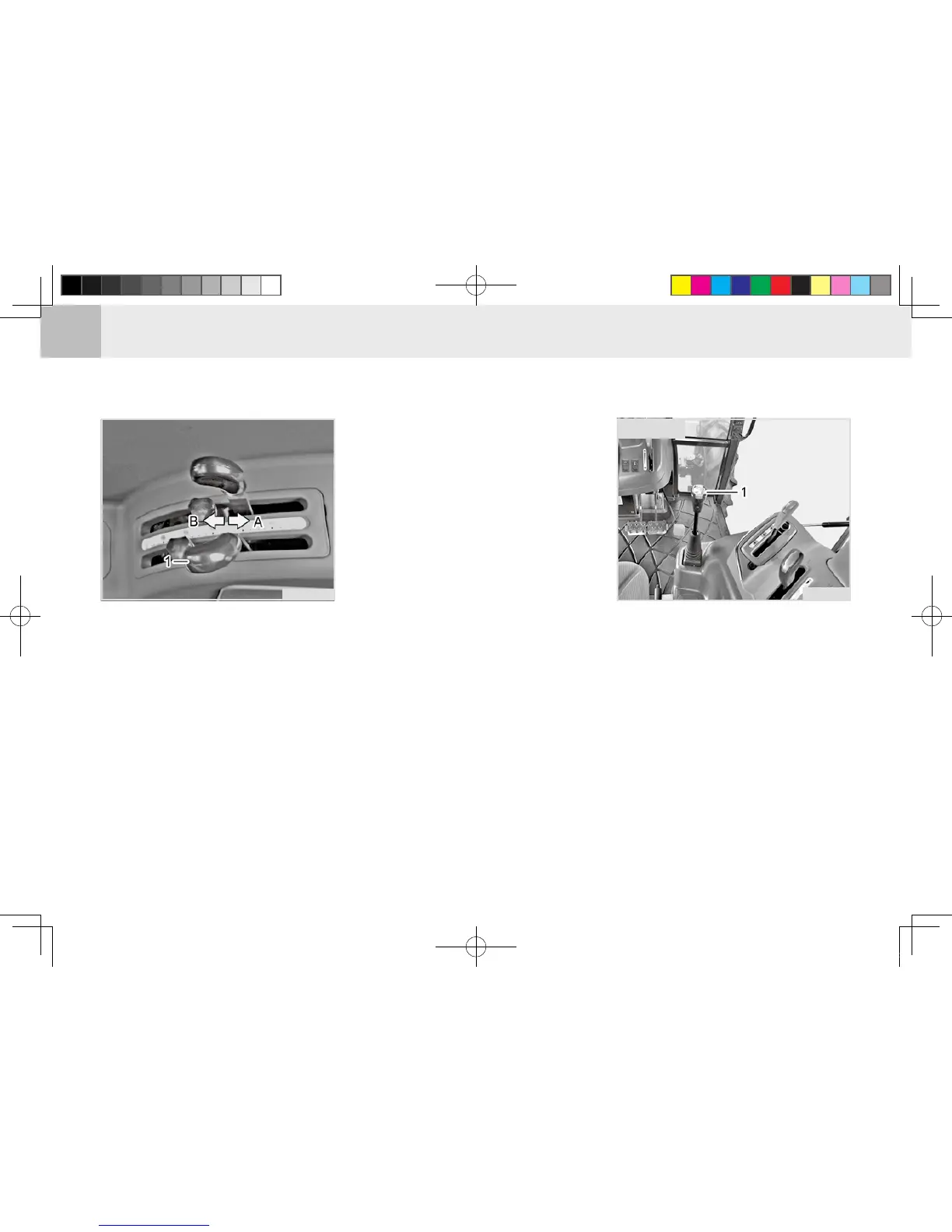

(1) Joystick Lever
Tf1O440A
JOYSTICK LEVER
the lever into the "Shallow" position
to activate the draft function at light
load.
For detailed information, refer to
"Draft control" in Chapter 5.
(1) Draft Control Lever
(A) Lifting (B) Lowering
The draft function can be used for
the plow which is installed to the
lower link (Lifting arm).
If the plow is operated with excessive
draft, the lifting arm is automatically
raised to reduce the draft and then
returned to its original. This is called;
"Draft Function". The plowing depth
can be controlled by the soil status
by putting the draft control lever into
the "Deep" position to activate the
draft function at mid load and putting
DRAFT CONTROL LEVER
T11O453A
CABIN
