DESCRIPTION OF OPERATING SYSTEM
4

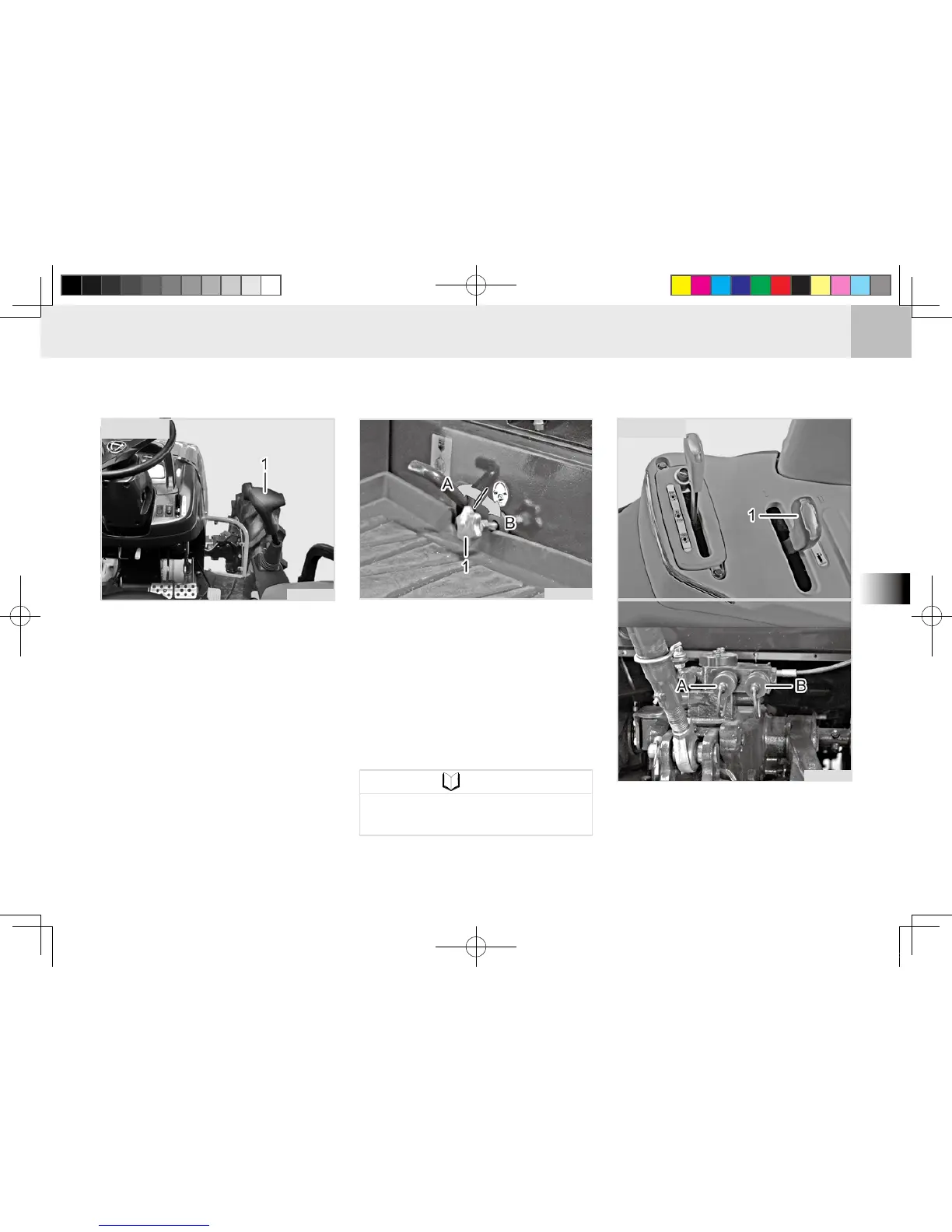

Turning the knob counterclockwise
increases the lowering speed while
turning it clockwise decreases the
lowering speed. Also, turning it clock-
wise to its end can x the implement
to a certain position.
LIFTING ARM (LOWER LINK)
SPEED CONTROL KNOB

This knob does not control the
lifting speed of the lower link.
NOTE
(1) Lowering Speed Control Knob
(A) High Speed (B) Low Speed
M55O560A
DOUBLE ACTING LEVER
(1) Double Acting Valve 1 & Lever 1
(A) Port A (B) Port B
T11O454A
This lever is used to control a auxil-
iary hydraulic implement installed on
rear.
CABIN
T11O4A43
(1) Joystick Lever
ROPS
