Pushing the lever supplies the port A
with hydraulic pressure while pulling
it supplies the port B with hydraulic
pressure.

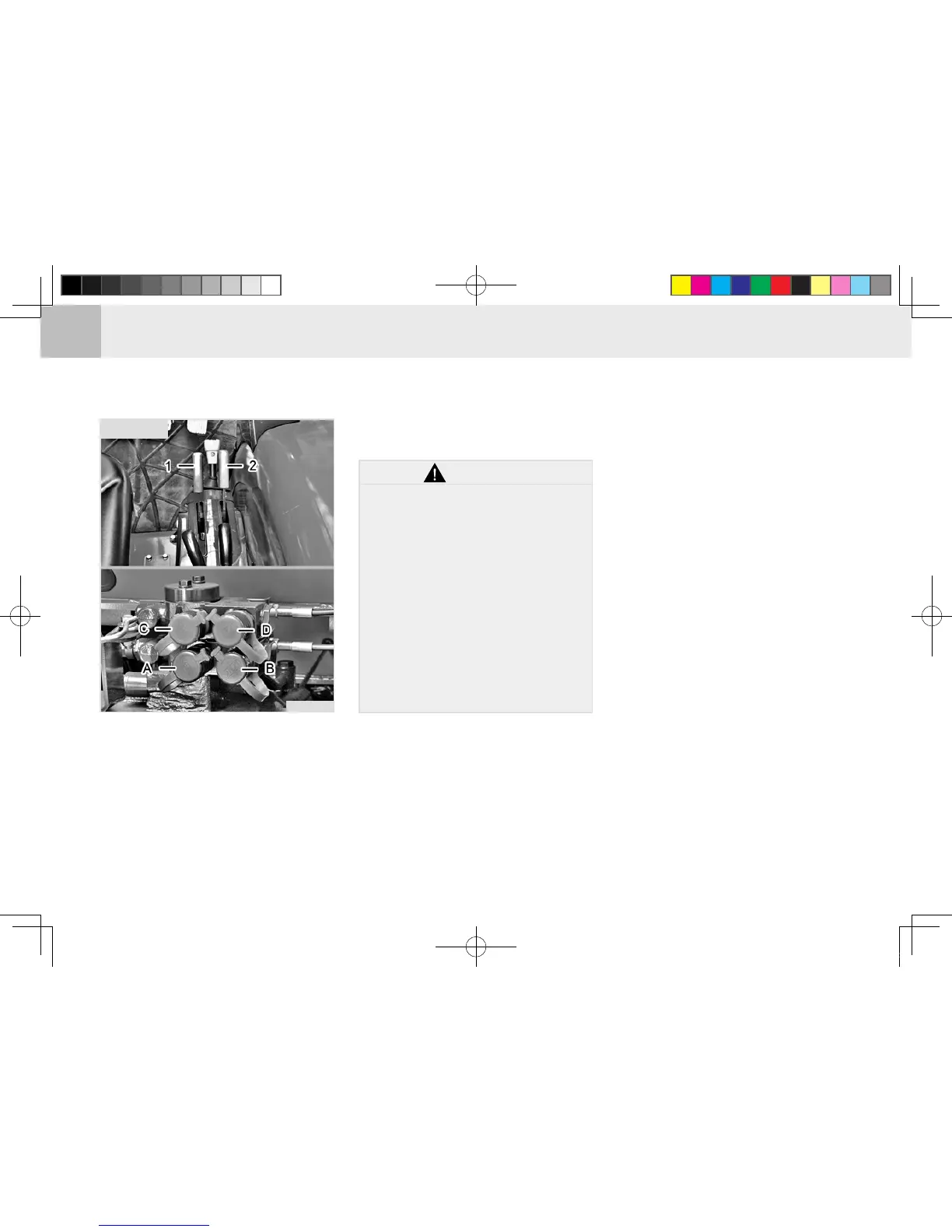

(1) Double Acting Valve 1 & Lever 1
(2) Double Acting Valve 2 & Lever 2
(A) Port A (B) Port B
(C) Port C (D) Port D
T11O4A44
ROPS
Put the detent valve(if equipp-
ed) operating lever into the
ne u tra l pos i ti o n wh e n th e
hydraulic implement is not in
use. If the detent valve is kept
in the operating position for
an extended period of time,
the relief valve is kept open
and the temperature of the hy-
draulic fluid rises, leading to
damage of various hydraulic
parts, such as the oil seals and
O-rings.
WARNING
For detailed information, see "Opera-
tion" in Chapter 5.
To Next Page
