5. Down & Roll back
The boom can be lowered and the
bucket can be rolled back at same
time by operating the joystick lever
to the front left position (10 o’clock
position). However, the operation
time may not be shortened much
since the boom is lowered rst and
then the bucket is rolled back later
due to unbalanced hydraulic pres-
sure in the hydraulic circuit.
6. Down & Dump
The boom can be lowered and the
bucket can dump at same time by
operating the joystick lever to the
front right position (2 o’clock posi-
tion). However, these two operations
may not be performed simultane-
ously due to unbalanced hydraulic
pressure in the hydraulic circuit.
7. Up & Roll back
The boom can be lifted and the
bucket can scoop up at same time
by operating the joystick lever to
the rear left position (7 o’clock
position). However, these two op-
erations may not be performed
simultaneously due to unbalanced
hydraulic pressure in the hydraulic
circuit.
8. Up & Dump
The boom can be lifted and the
bucket can dump at same time by
operating the joystick lever to the
rear right position (5 o’clock posi-
tion). However, the operation time
may not be shortened much since
the bucket dumps first and then
the boom is lifted later due to the
unbalanced hydraulic pressure in
the hydraulic circuit.

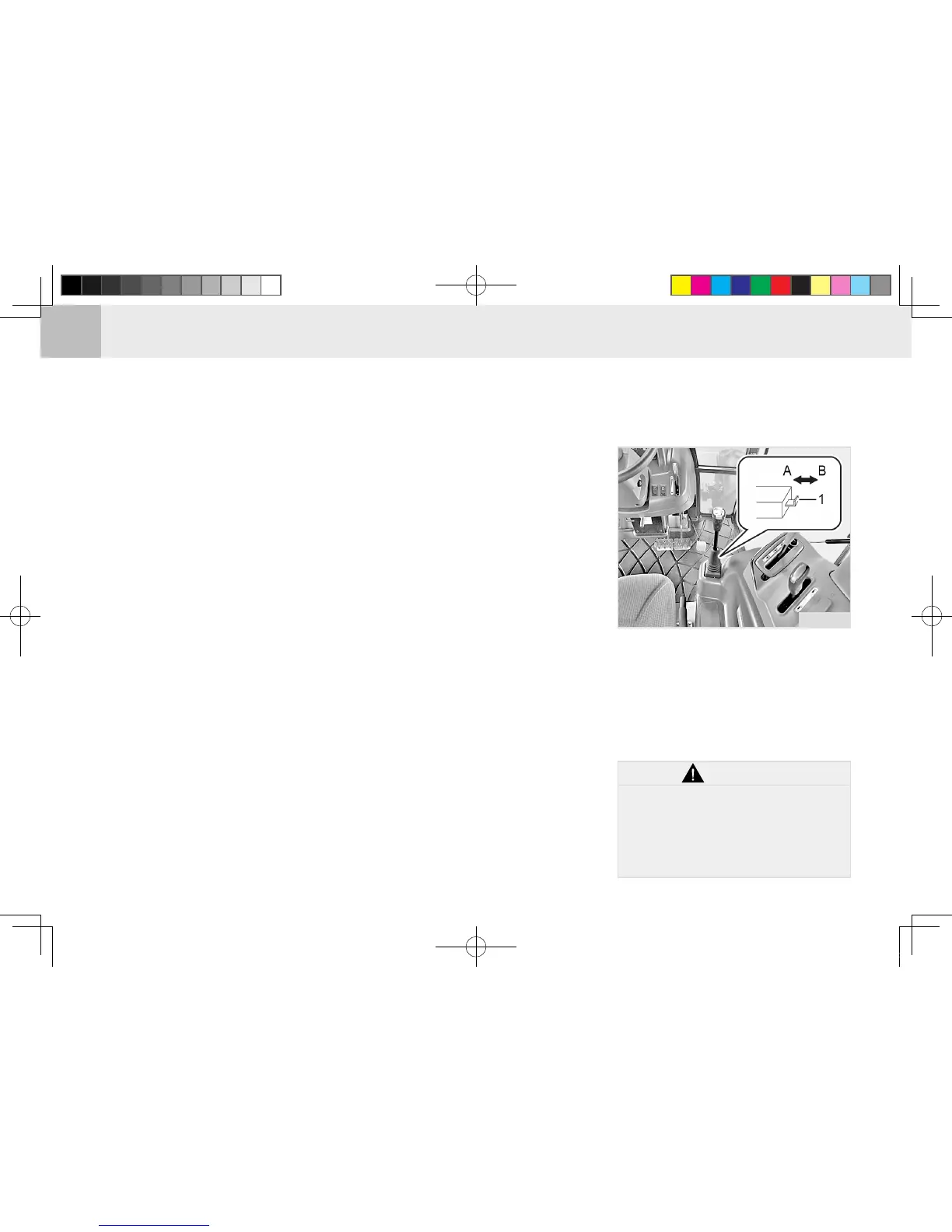

9. Locking / Unlocking joystick
Pressing the joystick lock lever in,
locks the joystick, while pulling it
outward, unlocks the joystick as
shown in the gure.
TF1O602A
Make sure to lock the joystick
lever while moving. Otherwise,
its vibration can cause safety
problems, such as falling off of
the implement.
WARNING
(1) Joystick Lock Lever
(A) Lock (B) Unlock
