wheels before checking brake
3. When adjustments are needed,
loosen the locking nut and turn the
turn buckle until the rod length is
at the desired and acceptable limit.
4. Re-tighten the lock nuts.
5. Perform the same procedure for
the left brake pedal to make both
free play the same.
6. Interlock the brake pedals after
checking or adjusting them.
CAUTION
brake
free travel
(A)
15 ~ 30 mm
(0.591 ~ 1.181 in.)
Keep the free play in
the right and left brake
pedals equal.

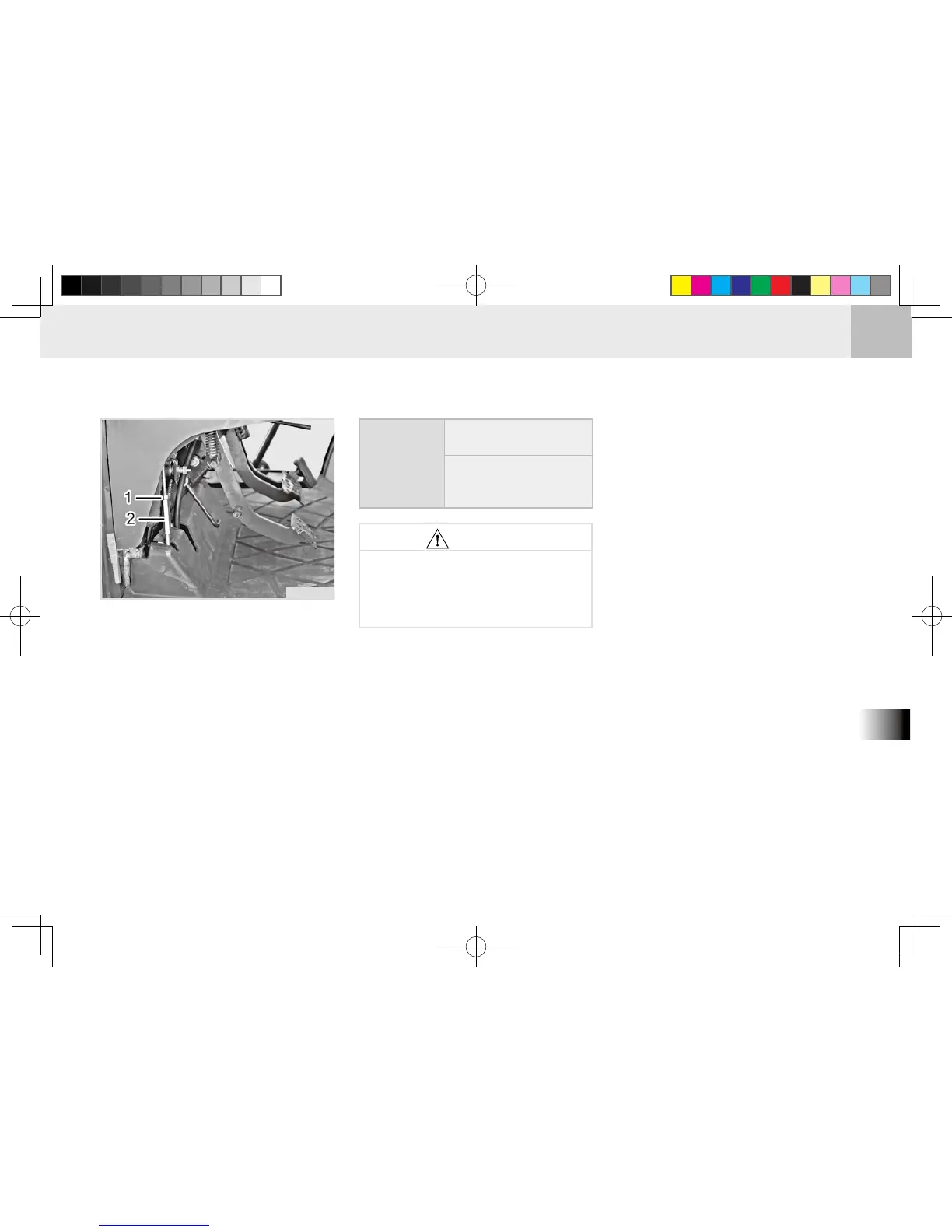

(1) Lock Nut (2) Turn Buckle
M55O7e1A
