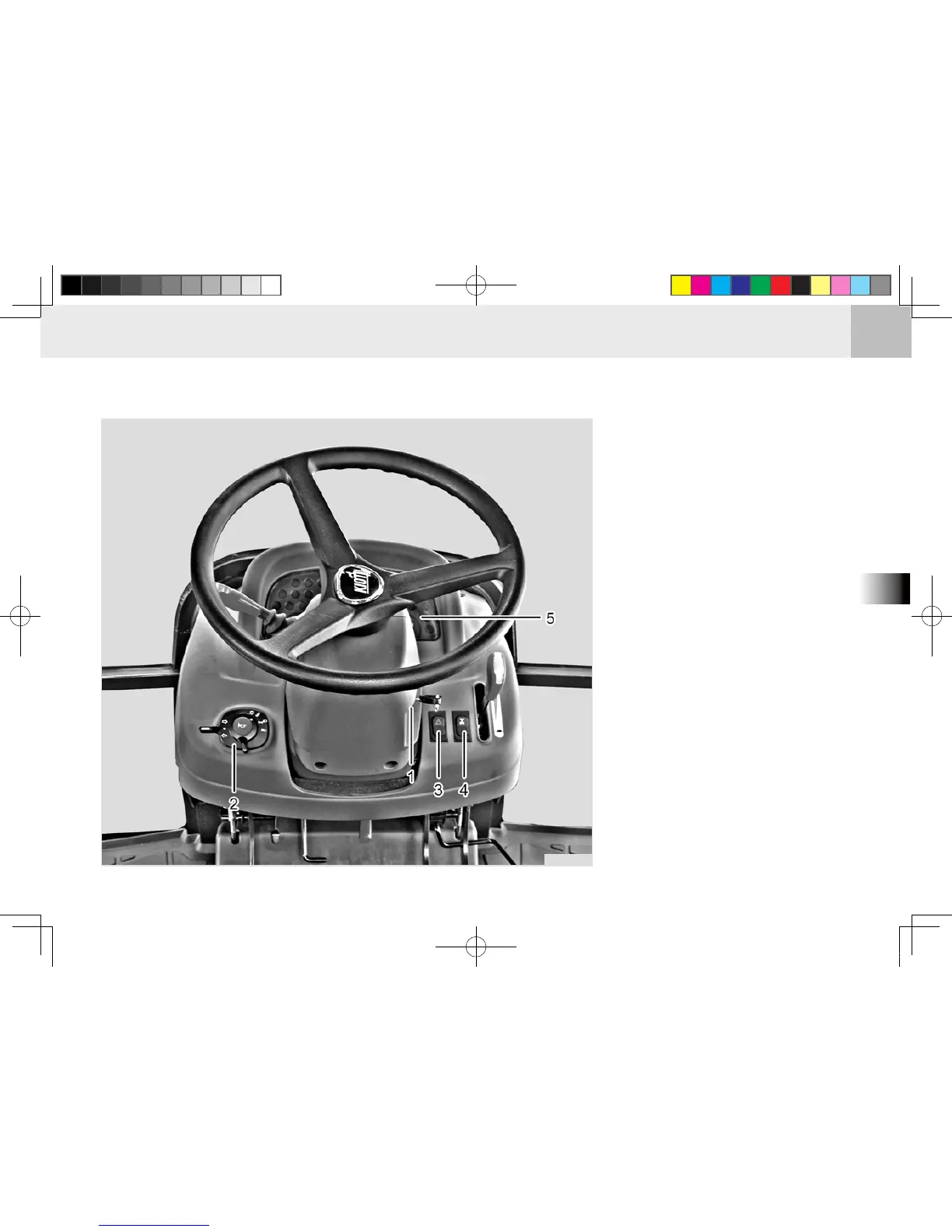

DESCRIPTION OF OPERATING SYSTEM

(1) Key Switch

(2) Combination Switch

(3) Hazard Lamp Switch

(4) Driving Mode Selection Switch

(5) Instrument Panel

POWER SHUTTLE

T11O4A56
