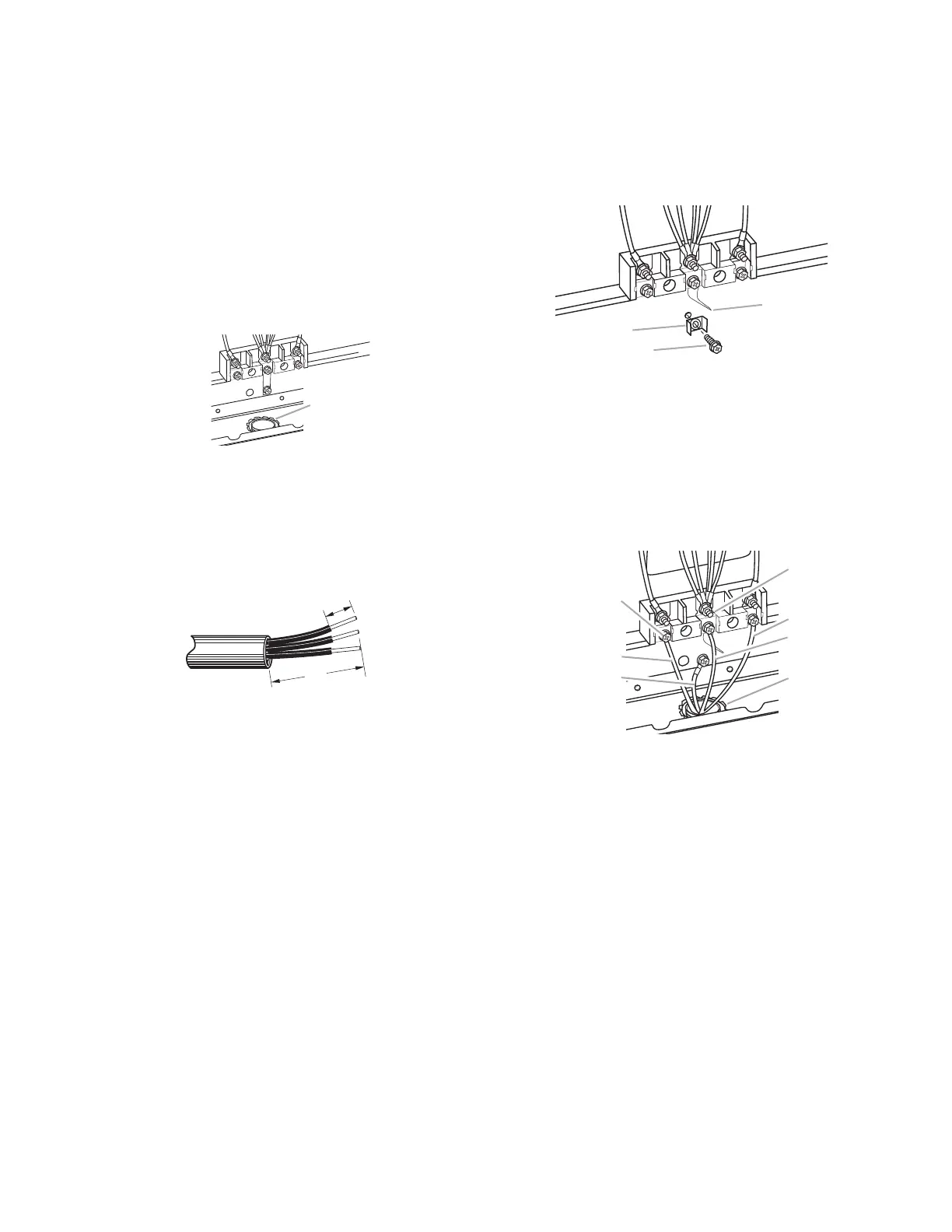

Direct Wire Installation: Copper or Alumi-
num Wire
This range may be connected directly to the
fuse disconnect or circuit breaker box. De-
pending on your electrical supply, make the
required 3-wire or 4-wire connection.
1. Remove the knockout as needed for the
conduit connection.
2. Assemble a UL listed conduit connector in
the opening.
A. UL listed conduit connector
A
3. Strip outer covering back 3″ (7.6 cm) to
expose wires. Strip the insulation back 1″
(2.5 cm) from the end of each wire.
3"
(7.6 cm)
1"
(2.5 cm)
4. Allow enough slack in the wire to easily
attach the wiring terminal block.
5. Complete electrical connection according
to your type electrical supply (4-wire or 3-
wire electrical connection).
4-wire connection: Direct wire
Use this method for:
• New branch-circuit installations (1996 NEC)
• Mobile homes
• Recreational vehicles
• In an area where local codes prohibit ground-
ing through the neutral
1. Remove the ground-link screw from the
range frame. Save the ground-link screw
and cup washer. Bend the ground-link
away from the range so that it does not
contact the range.
A. Ground-link screw
B. Cup washer
C. Ground-link bent away from range
A
C
B
2. Connect the bare ground wire to the range
using the ground-link screw and cup
washer. The ground wire must be attached
first and must not contact any other termi-
nal.
A. Bare wire from power
supply cable
B. Line 1
C. Hex washer head screw
D. Silver-colored terminal
block screw
E. Line 2
F. Neutral (white) wire
G. UL listed conduit
connector and power
supply cable
A
B
C
D
E
F
G
3. Loosen (do not remove) the hex washer
head screw and insert the neutral (white)
wire under the screw clamp at the bottom
of the center position terminal connector.
