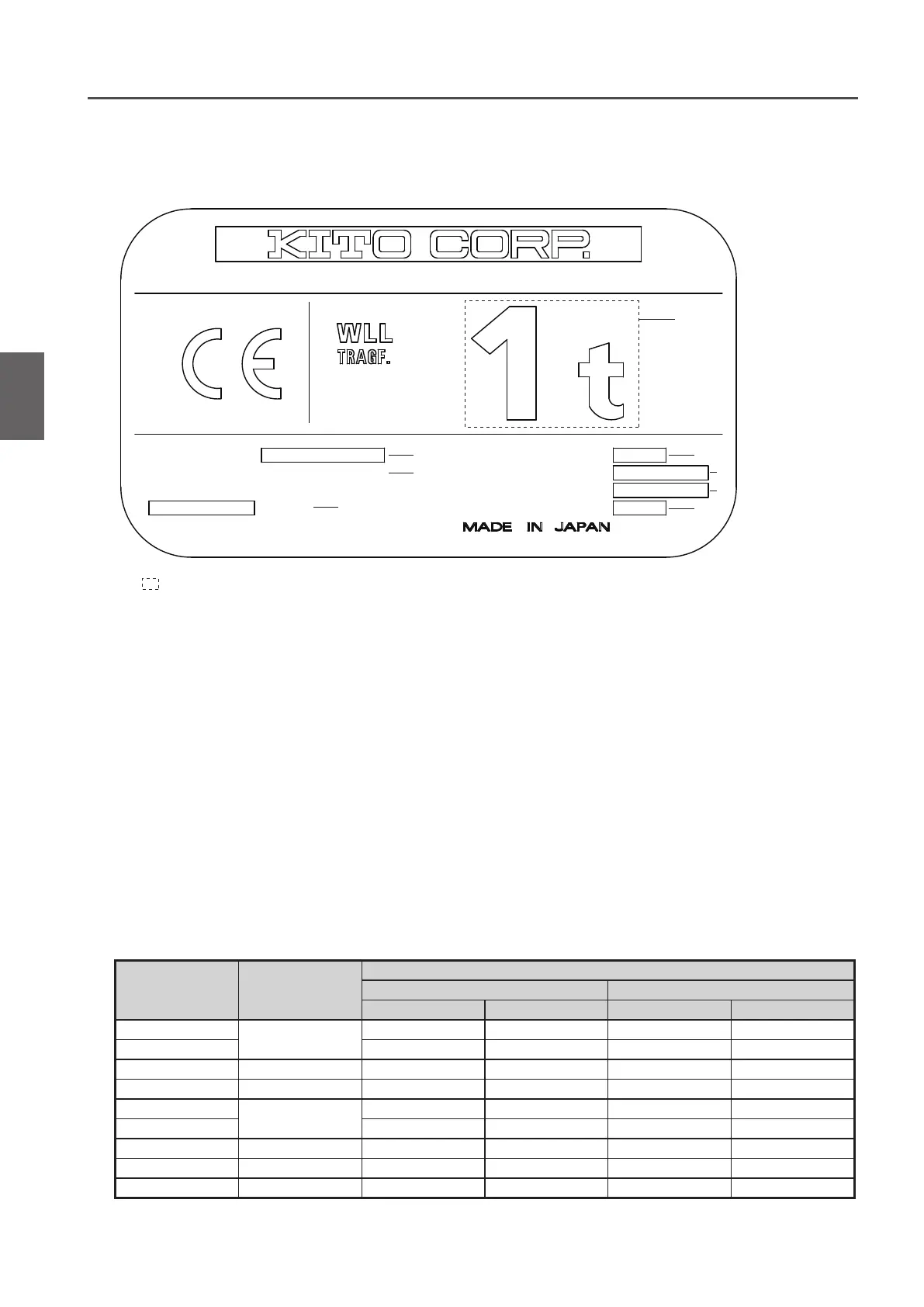

Nameplate and Product Model
■
Nameplate Indication of Electric Chain Hoist
Capacity Body Size
CODE
Single speed model Dual speed model
Standard speed Low speed Standard speed Low speed
125kg
ER2-B
｜
(ER2-001H)*
｜
(ER2-001IH)*
250kg ER2-003S (ER2-003H)* ER2-003IS (ER2-003IH)*
500kg ER2-C ER2-005S ER2-005L ER2-005IS ER2-005IL
1t ER2-D ER2-010S ER2-010L ER2-010IS ER2-010IL
1.6t
ER2-E
ER2-016S
｜
ER2-016IS
｜
2t ER2-020S ER2-020L ER2-020IS ER2-020IL
2.5t ER2-F ER2-025S
｜
ER2-025IS
｜
3.2t ER2-E ER2-032S
｜
ER2-032IS
｜
5t ER2-F ER2-050S
｜
ER2-050IS
｜
Chapter 1 Handling the Product
DE
: D A T - 7 . 7E NGR
|
S S E )
( H U B G E S C H WI N DL I F T I N G S P E
CHA NI SI Z E ( K E T T
m/mi n
:
:
L TO N o
( L I E F E R N R . )
S E R I NE N R. )S E RI A L No (
.
.
MF G . Y E A R
:
( JB . )
X 2 1 .
I G K E I :
mm
)
4
T
3 8 5 3- AJ P A NY A MA N A S H I 4 0 9
5 0 Hz
C O D E ( K E N N - N R . ) : G R A D E ( S T
U
F E ) :
①
③ ②
⑤
⑦
⑥
④
⑧
1 · · · Capacity Ex. 1t, 500kg
The maximum mass of the load that can be
imposed on the product. The mass of the hook is
excluded.
2 GRADE Ex. M4, M5
The grade of an electric chain hoist specified by
ISO Standard. A guidepost of durability.
3 CODE…Product model Ex. ER2-005S
A code to indicate the model No. of the product,
capacity and lifting speed.
4 CHAIN SIZE…Load Chain size
Ex. T-7.7×21.4mm
The alphabet and the figures indicate the JIS
grade, wire diameter and chain pitch respectively.
5 LOT No.
Manufacture No. to identify the time of manufacture
and the quantity of a production unit.
6 MFG. YEAR…Manufacture year
7 SERIAL No.
Serial number to indicate the manufacturing sequence
of the product.
8 LIFTING SPEED
Single speed model and dual speed VFD model
are provided. Variable speed range and its set
value are indicated for the dual speed VFD model.
■
Code of ER2
