54
Assembling (continued)
Chapter 1 Handling the Product
1
AssemblingConnecting Cables
NOTE
• When clamping a connector, do not use tools. Be sure to clamp it by hand.
Excessive tightening of a connector may result in the damage or breakage f plastic thread part.
• To prevent wire breakage and unintentional removal of a connector, tie the protection wire attached to the
Push Button Switch Cord to the body size of the electric chain hoist or the trolley.
Be sure to tie the cord with the body size or the trolley to prevent the wire breakage and removal of connector when the cord is pulled
strongly.
• Be sure to turn off the power when carrying out the repair work of wire breakage or removal of the connector.
1
2
Cable holder
Cable holder arm
Socket frame
Holder C
(lower side)
Cable Support L
Screw
Protection wire
Holde A
Screw
Holder C
(upper side)
Cable Support L
■

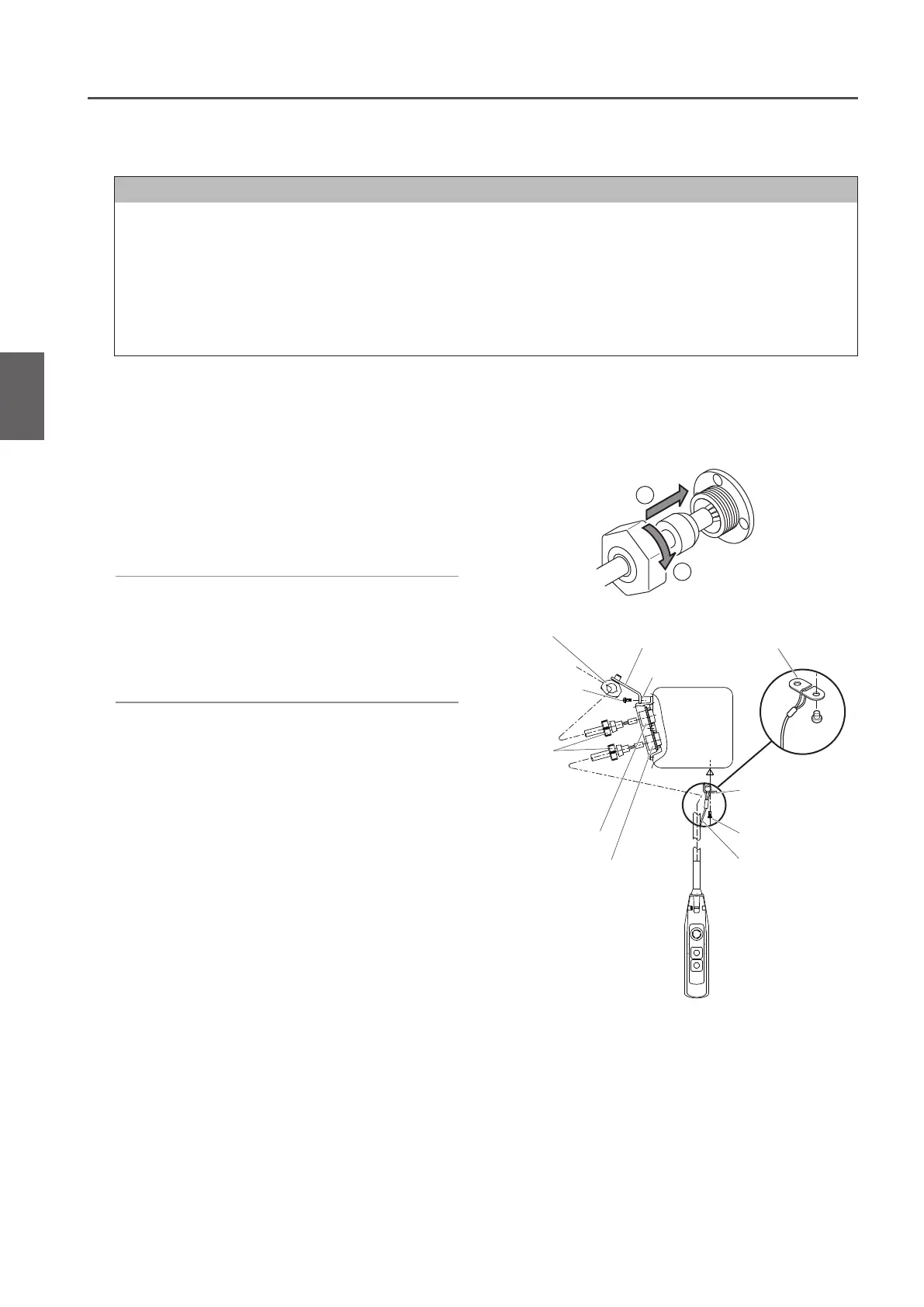

Connecting Cables
■
Hook suspended model (hoist only)
■
125 kg~5 t
2) Connecting the Push Button Cord
Insert the Push Button Cord into the
Holder C (lower side) of the Socket
frame. Turn the Holder A to connect the
cord securely.
3) Carry out wiring correctly in accordance
with the wiring diagram inside the
Controller Cover.
1) Connecting the Power Cable
Insert the Power Cable into the Holder
C (upper side) of the Socket frame.
Turn the Holder A to connect the cable
securely.
To Next Page
