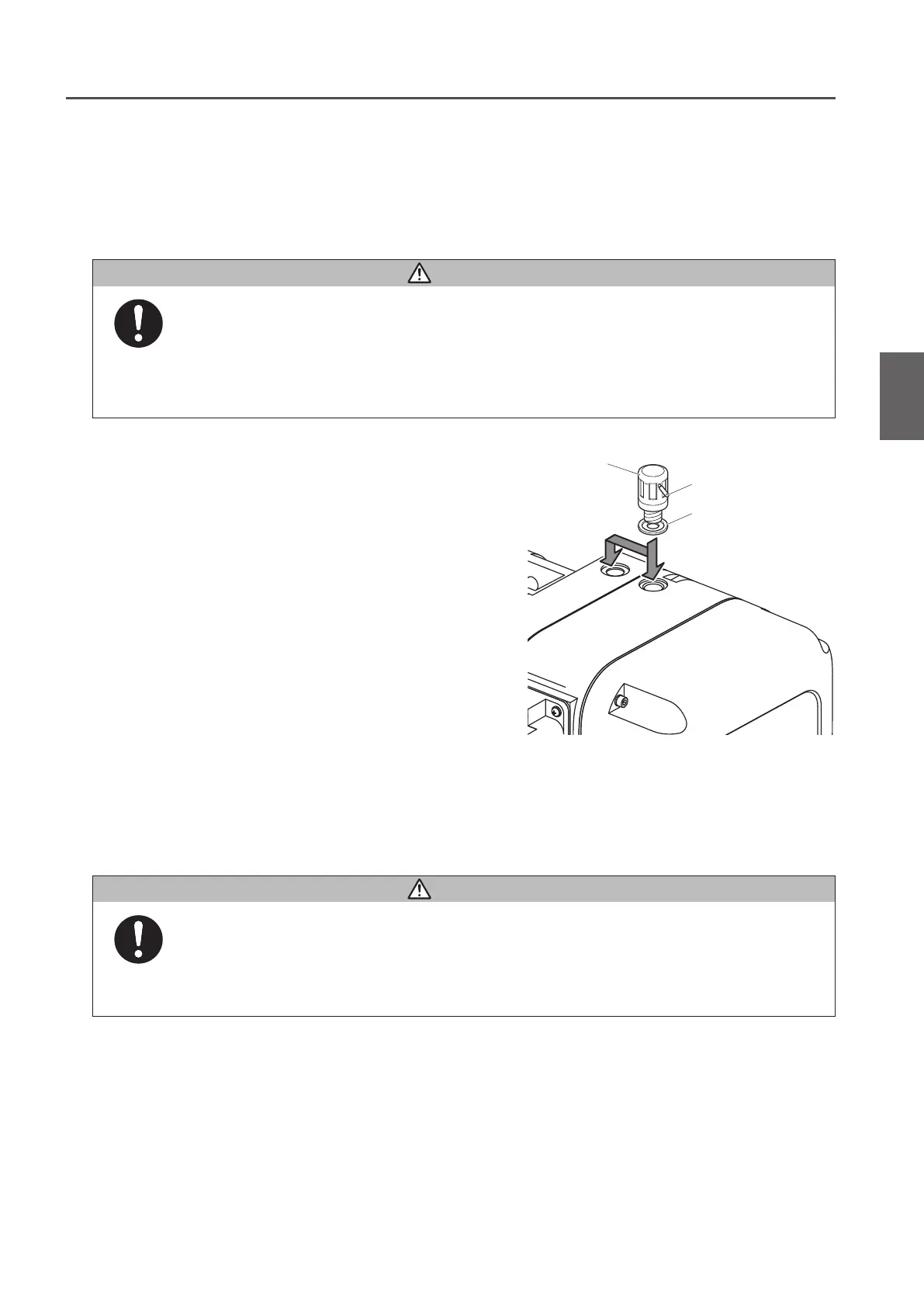

How to Use the Oil Cap (only for the Friction Clutch with mechanical brake)
An Oil Cap is packaged along with the electric chain hoist equipped with built-in Friction Clutch with mechanical
brake (option). When installing the hoist, remove the oil plug and attach the Oil Cap instead. When combining the
motorized trolley, mount the oil cap to the hoist at a position where the Oil Cap and the frame of the Trolley do not
interfere. (Any one of the following two positions)
Air Vent
Oil Cap
Packing
• The gear oil for the electric chain hoist with Friction Clutch with mechanical brake is different
from that for the hoist with standard Friction Clutch. Be sure to use the genuine gear oil for the
hoist with friction clutch with mechanical brake.
Use of the gear oil other than the specified oil (including mixed use) will result in death or serious injury due to the drop of
the lifted load.
Mandatory
●
When using the electric chain hoist
To secure the draft between inside and outside of the Gear
Case, pull out the Air Vent to the position where the step of
the Air Vent can be seen.
●
When removing the electric chain hoist
To prevent the oil flow out from inclined electric chain hoist,
make sure that the Air Vent is inserted securely.
■
Combination with the trolley
* When using the Hook suspended model (Single Unit) “Connection of Power and Power Cable", you can skip the this
section. Please proceed with Page 53.
• Adjust the rail width during assembling and install.
• Be careful for the Power Cable and Push Button Switch Set Cord are not pulled off or entangled
within the area of traveling area.
Failure to comply with these instructions may result in death or serious injury.
Mandatory
(to be continued)
Assembling Combination with the Trolley
