KITO ER2 Series User Manual

25
■

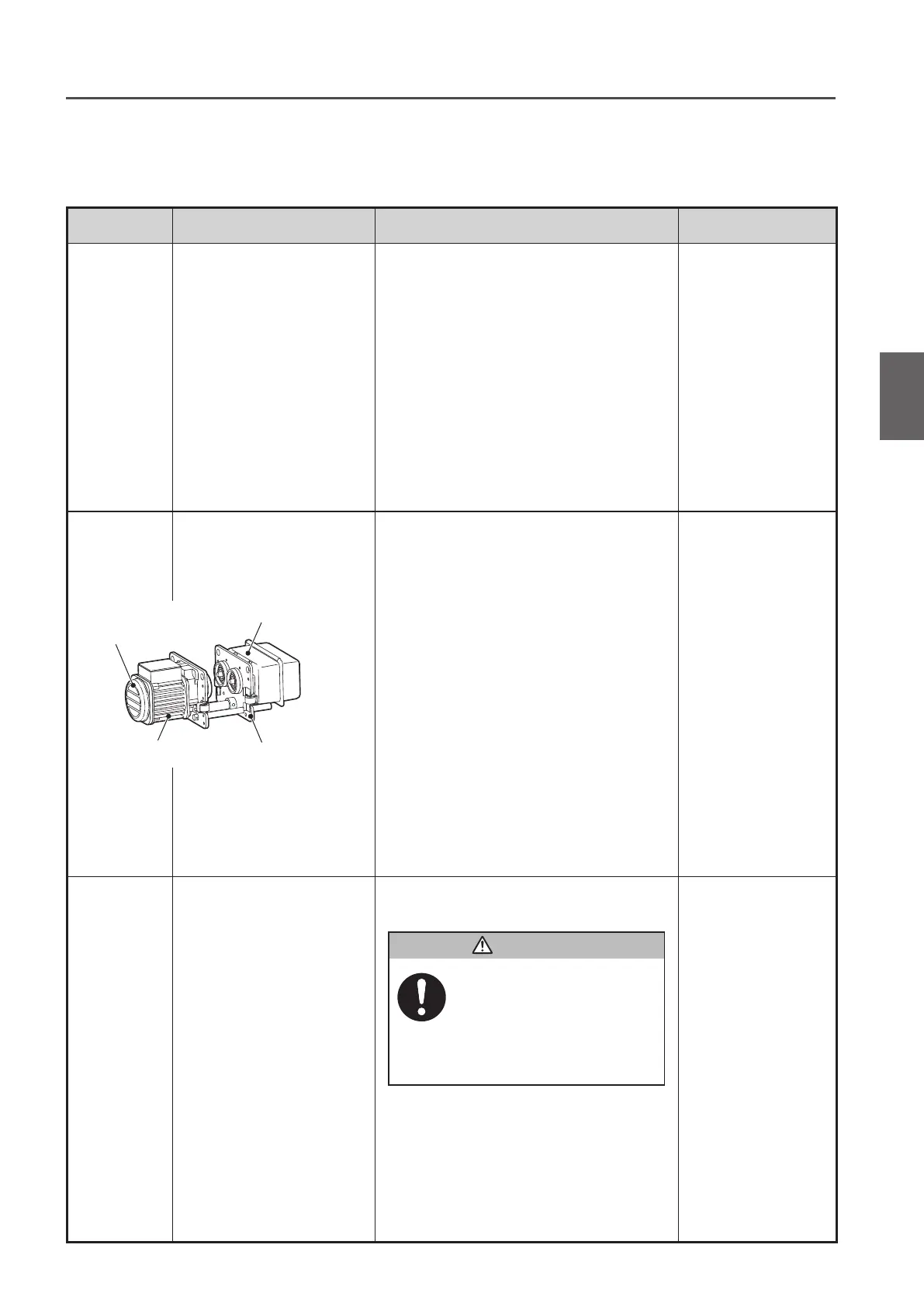

Daily Inspection of Motorized Trolley (MR2)
■
Appearance
Item Check method Criteria When failed
Indication of
Nameplates
and Labels
• Check visually • No peel off. Indication can be seen clearly. Clean and repair the
label or replace with a
new label.
Deformation
and damage
of each part
• Check visually • No apparent deformation, damage and
corrosion
Replace the deformed
or damaged part.
Loosened
or fallen off
bolts, nuts
and split pins
• Check visually or using
tools.
• Bolts, nuts and split pins are fastened
securely.
• Even a drop off of a split pin
may cause of drop of the
body size. Be sure to check
it.
Drop off of split pin may result in death
or serious injury.
Mandatory
DANGER
Fasten bolts, nuts and
split pins securely.
Connection Box
FrameMotor frame
Motor cover
How to Use Daily Inspection of Motorized Trolley (MR2)
1
(to be continued)

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
