KITO ER2 Series User Manual

57

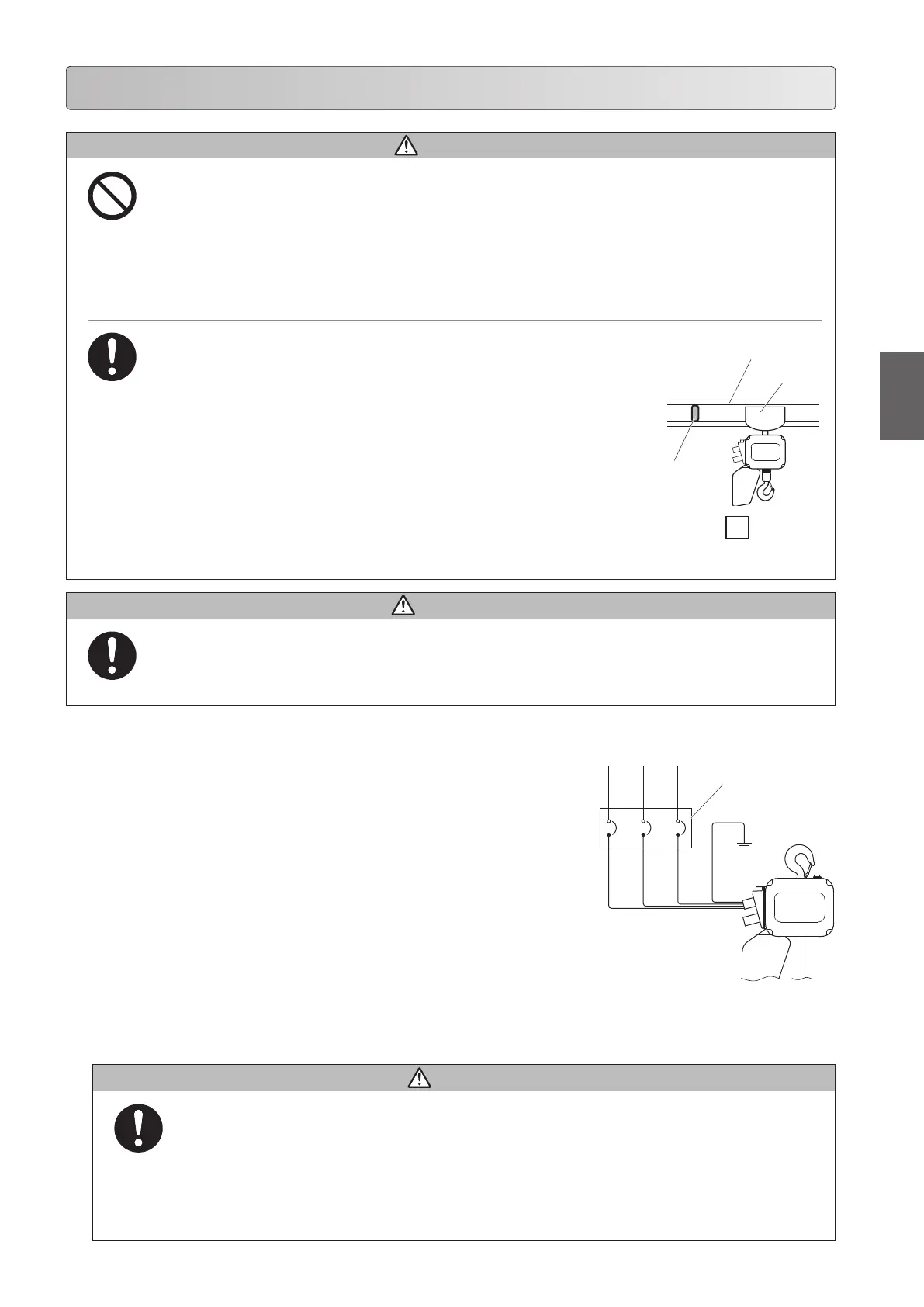

Installation
■
Installing the Hook Suspended Type (hoist only)
■
Checking Installation Method and Place
CAUTION
• Connect the Power Cable to the power of rated voltage.
Failure to comply with this instruction causes bodily injury or loss of property.
Mandatory
• Installation (removal) of the electric chain hoist must be carried out by special installer or by personnel with
expertise.
Consult with the sales shop or KITO for installation, or consign the installation work to special installer or personnel with expertise.
• Do not install the electric chain hoist at a place exposed to rain or water always or the place different
from the Operational Environment (P18).
• Do not install the electric chain hoist in the motion space of other trolley or any other moving equipment
(facility).
• Do not use the electric chain hoist contacting with other object, or being fixed.
Failure to comply with these instructions may result in death or serious injury.
• When installing or removing the electric chain hoist, follow the instructions in Owner's
Manual.
• Carry out the work for grounding (earthing) and installation of earth
leakage breaker.
• When the installation is completed, carry out “Check after Installation".
(See P61)
• Connect the power after all installation works have been completed and
just before the oparation check.
• Mount the stopper at the both ends of the travel rail for trolley. <Fig. A>
• Make sure that the strength of the structure is sufficient to install the electric
chain hoist.
• Carry out the installation work after securing the stable hoothold.
• Before building the electric chain hoist into part of your own travel
device without using the standard trolley, contact us for information on
precautions.
Failure to comply with these instructions may result in death or serious injury.
Mandatory
Prohibited
Stopper
Travel rail
Trolley
A
• When using an electric chain hoist suspended (as a single unit) without combination with a
trolley, make sure that the Hook Latch of the Top Hook closes securely.
• Install the electric chain hoist so that the Top Hook and body can swing freely. (Make sure not to
restrain the Top Hook and body when in use.)
• Do not install and use the electric chain hoist upside down.
Failure to comply with these instructions may result in death or serious injury.
Mandatory
■
Connecting Power and Power Cable
When connecting the Power Cable to the power, connect the cable in
accordance with the following instructions.
● Connect the electric chain hoist to the power through a breaker.
● Connect the electric chain hoist in the correct phase.
(When "Check after Installation (P61)" is completed, carry out the
operation check for the correct phase.)
● Earth wire is a green colored covered cable with yellow line. Carry out
Class D earthing work.
● Use correct breaker and Power Cable referring to Checking the Power
and the Power Cable (P52) for the breaker capacity, Power Cable length
and its size.
L1
R-
phase
Red
White
Black
Red
White
Black
Green/Yellow
L2
S-
phas
L3
T-
phase
Breaker
Installation Connecting Power and Power Cable / Installing the Hook suspended Type (hoist only)
1
(to be continued)
DANGER
DANGER

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
