KITO ER2 Series User Manual

8
Type and Names of Each Part
Mandatory
• Warning labels are affixed to each part other than above. Be sure to follow the instructions in the
label.
Failure to comply with the contents of the label may result in death or serious injury.
■

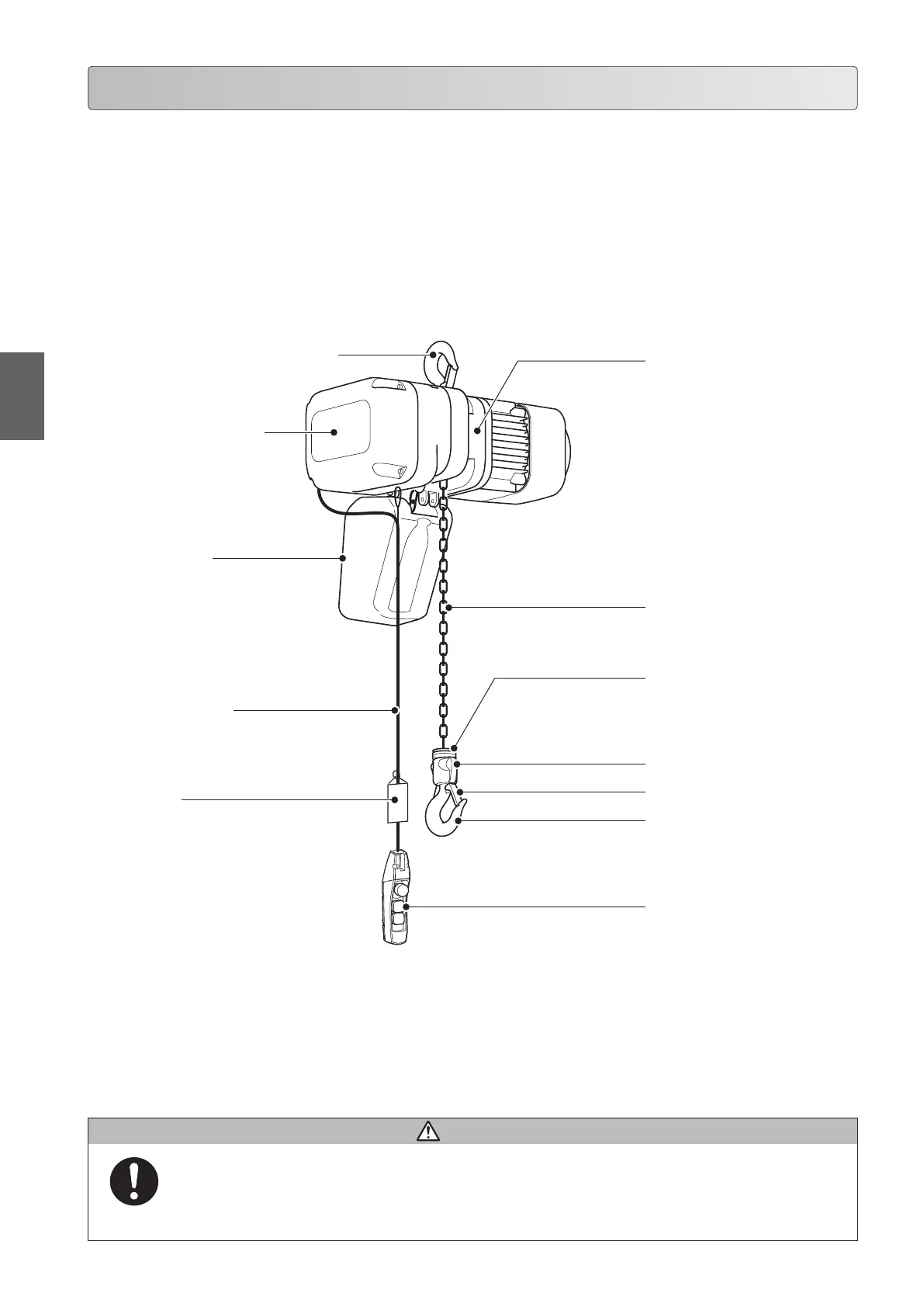

Hook Suspended Type (ER2)
●
Electric chain hoist dedicated for elevation
Chapter 1 Handling the Product
Chain Container
Electric Chain hoist
name plate
Top Hook
Push Button
Switch Cord
Warning Tag
Load Chain
Cushion Rubber
(Chain spring and end plate for the
model of rated load 2 t or more)
Body
Bottom Yoke
Hook Latch
Bottom Hook
Push Button Switch
1
Type and Names of Each PartHook Suspended Type (ER2)
DANGER

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
