28
■

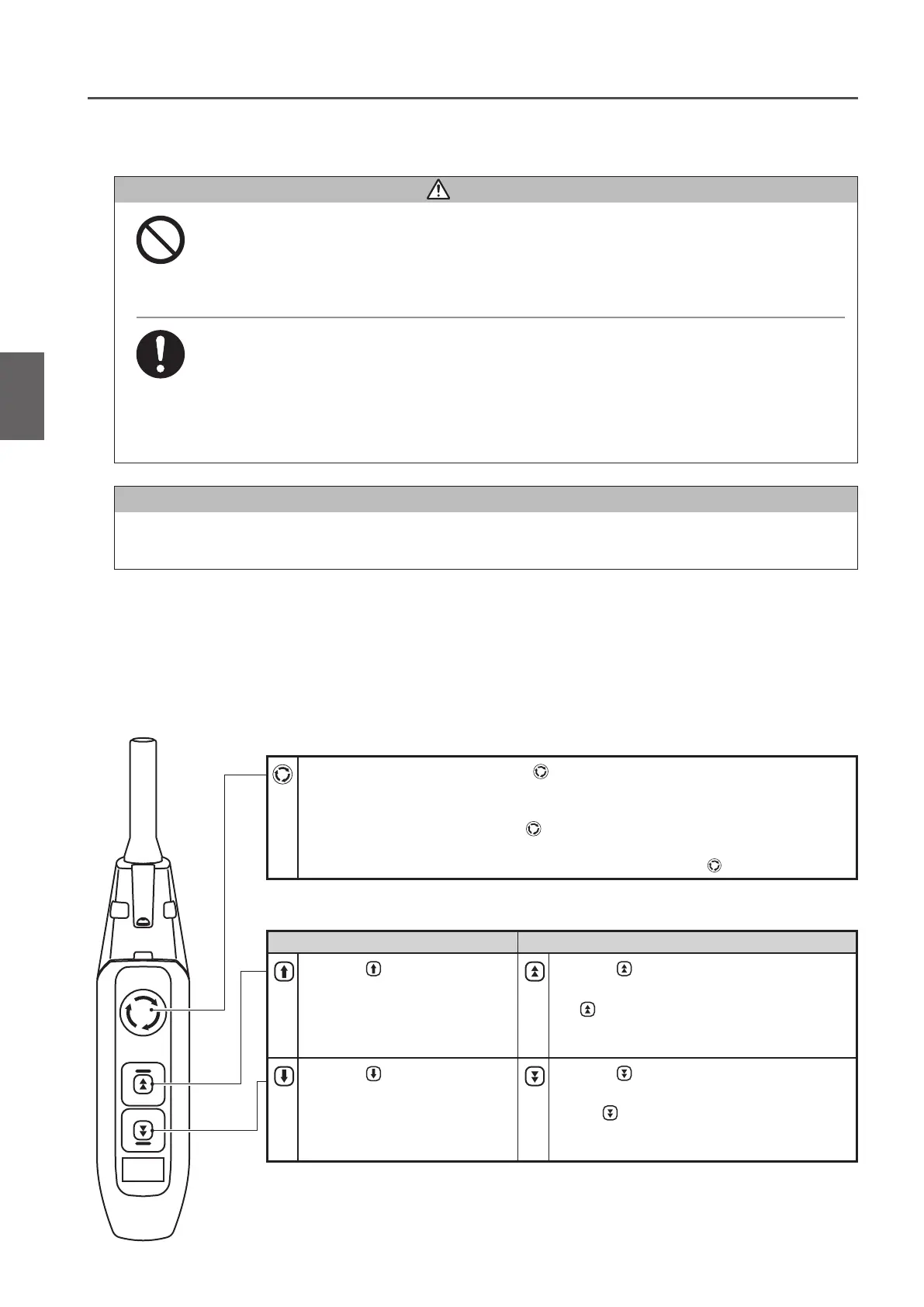

How to Operate the Push Button Switches
● Lift/Lower Button
●
Emergency Stop Button (VFD Reset Button)
●
Operation Button
1) Press the Emergency Stop Button deeply when carrying out an emergency stop or
VFD reset.
• The button is locked at the pressed end.
2) Turn the Emergency Stop Button clockwise to cancel the lock.
• Press-locked button returns to the original position.
* When the electric chain hoist is not used, press the Emergency Stop Button
deeply to the end.
Single Speed Model Dual Speed VFD Model
1) Press button to lift the
load.
• The electric chain hoist stops
when the button is released.
1) Press button to lift the load.
2) When lifting the load at high speed, press the
button further to the end.
• The electric chain hoist stops when the button is
released.
1) Press button to lower the
load.
• The electric chain hoist stops
when the button is released.
1) Press button to lower the load.
2) When lowering the load at high speed, press
the
button further to the end.
• The electric chain hoist stops when the button is
released.
• Do not hang the Push Button Switch Cord on other object, or pull the cord strongly.
• Do not use the Push Button Switch if its button does not operate smoothly.
• Do not bundle or tie the cord for the adjustment of its length.
Failure to comply with this instruction causes bodily injury or loss of property.
CAUTION
• When taking hand off the Push Button Switch after operation, do not throw it. Be careful not to hit
other worker with the Push Button Switch.
• When starting operation of the hoist after stopping the hoist by pushing the Emergency Stop
Button, be sure to confirm there are no hazards around the workplace before releasing the lock
of the Emergency Stop Button and starting operation.
Failure to comply with this instruction causes bodily injury or loss of property.
Mandatory
Prohibited
■
3-Push Button Switch Set
3-Push Button Switch Set is equipped with a lock type emergency stop button (VFD reset button) and lift/lower push
buttons. One-step push button switch or two-step push button switch is mounted as Lift/lower push button switches
in accordance with the specification of single speed or dual speed VFD specification. Refer to the operation method
of the corresponding specification.
How to use (continued)
Chapter 1 Handling the Product
NOTE
If the Electric chain hoist is tripped due to overheat of the VFD, the VFD cannot be reset soon after the trip. Reset the
VFD after a while.
1
How to UseHow to Operate the Push Button Switches
