KITO ER2 Series User Manual

76

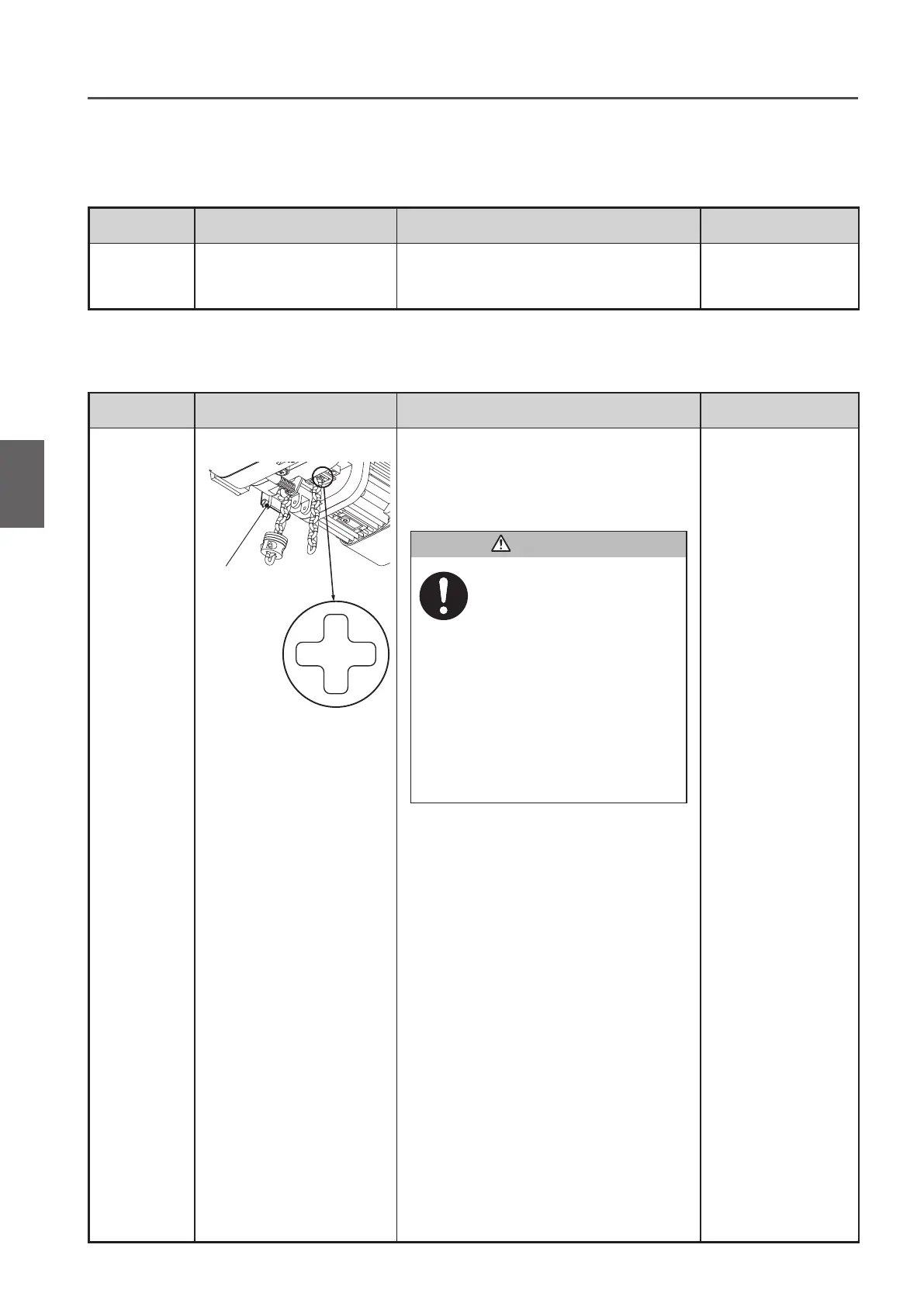

Chapter 2 Inspection
Periodic Inspection (continued)
■
Peripheral parts of the Body size
Item Check method Criteria When failed
Number of
start
• Check the number of start
with the CH Meter.
• Number of start must not exceed the
guidelines for replacement. (Refer to P92)
Replace the Top Hook
and Bottom Hook.
Item Check method Criteria When failed
Chain
Guide A
• Check visually.
Chain Guide A
• To have no apparent abrasion, deformation
and damage
• TohavenoawduetohittingbytheLoad
Chain
• The flaw due to hitting is
caused by wrong use such
as lifting a load in an inclined
direction. If the abrasion
is observed on the Chain
Guide, the Load Chain may
be worn also. Refer to the
item of Load Chain Abrasion
and check the abrasion.
Neglecting the check of the Load
Chain abrasion may result in bodily
injury or property damage.
CAUTION
Mandatory
Replace the Chain
Guide A.
■
Electric Chain Hoist (ER2) Periodic Inspection
■
Top Hook, Bottom Hook
Electric Chain Hoist (ER2) Periodic Inspection Periodic Inspection
2

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
