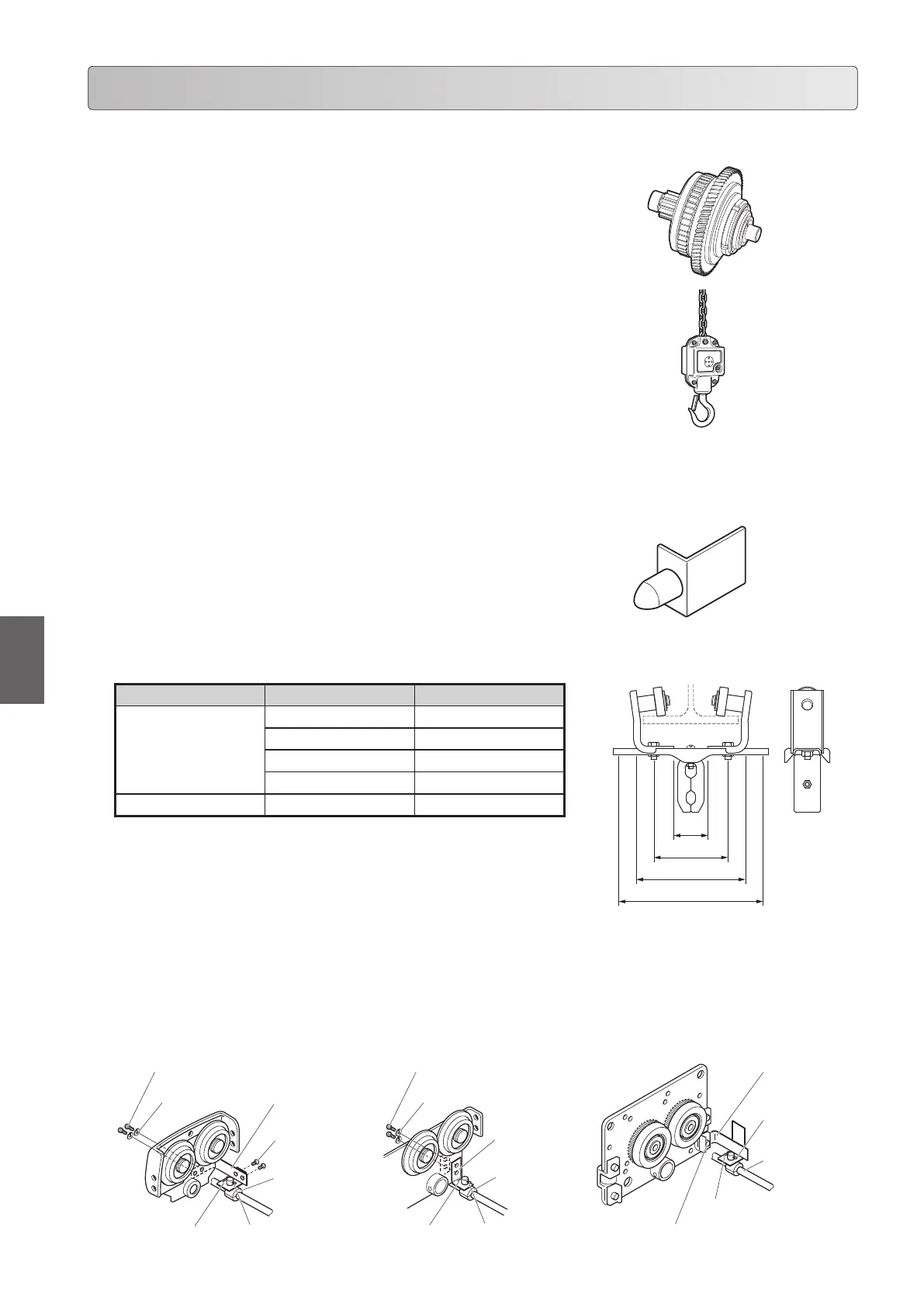

Optional Parts
Friction Clutch with Mechanical Brake
KITO’s original friction clutch equipped with mechanical brake
Load Bell: Over load alarm
An alarm unit to detect over load
Detection load: 100 to 110 % of the capacity
Alarm sound level: 85 dB or more
NR Relay: Negative Phase Connection Preventive Device
A device to detect the negative phase connection and open phase connection immediately and shut down the power
automatically.
Bumper: Stopper for Trolley MR2
A shock absorber for collision (special for MR2)
Be sure to use the bumper when the trolley uses urethane wheel.
T-shape Suspender: Attachment for power feeding
• Contact KITO when the Travel Rail width exceeds 175 mm.
Code Travel Rail width (mm) Hole pitch
T-shape Suspender
100
75 A : (53mm)
100 B : (78mm)
125 C : (103mm)
150 D : (128mm)
T-shape Suspender 175 175 A : (153mm)
A
B
C
D
Appendix
< Manual Trolley 125 kg to 3.2 t >
< Manual Trolley 5 t > < MR2 >
Mounting Suspender Presser
• When using T-shape Suspender, the suspender presser needs to be mounted to the trolley.
• Following holes to mount the suspender presser are worked on the main frame of the trolley. Mount the suspender
presser with socket head bolts.
• Fix the cable support to the suspender presser with Chain Pin and split pin and mount the power cable.
Chain hanger
pin
Power cable
Split pin
Socket head bolt (back side)
Suspender
presser
Socket head bolt
Spring washer
Split pin Chain hanger pin
Cable support
Suspender
presser
Counter sunk
screw
Socket head bolt
Spring washer
Suspender
presser
Cable
support
Split pin Chain hanger pin
