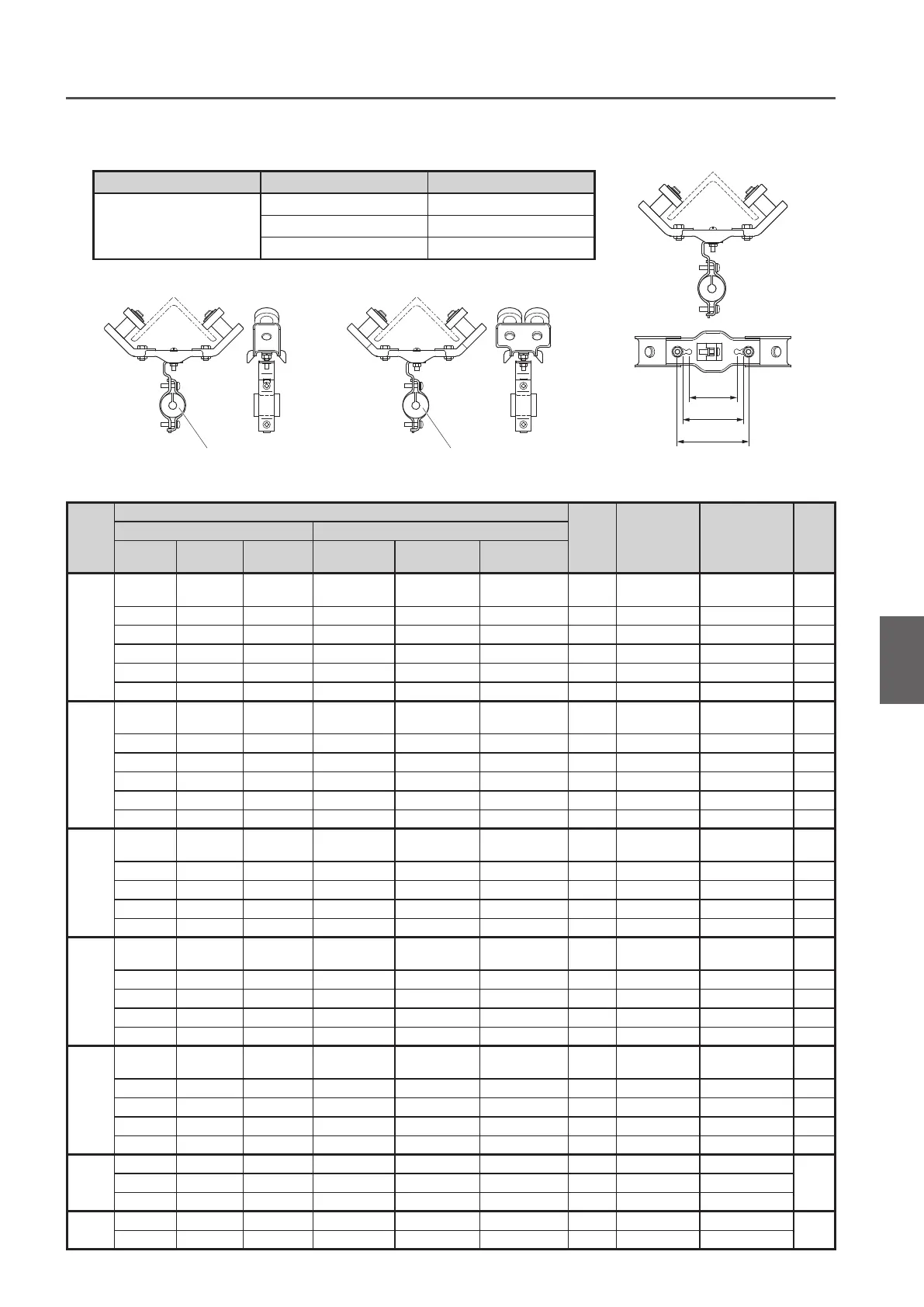

Angle Suspender: Accessory for power feeding
< THLT (for intermediate support >
< THLP (for Push Button Switch cord >
Code Angle Hole pitch
THLT and THLP
50×50 53 mm
65×65 66 mm
75×75 79 mm
Cable guard Cable guard
53
66
79
A
Optional Parts
Capac-
ity
Code
Part
number
Part name Part code Note
Single speed Dual speed
Standard
speed
Low speed High speed
Standard
speed
Low speed High speed
125kg
250kg
ER2-001H ER2-001IH/HD 408
Chain End
Suspender
ER2BS9408
ER2-003S ER2-003H ER2-003IS/SD ER2-003IH/HD 417 Socket Bolt J1BE1-0806528
418 Lever Nut C2BA100-9074
396 Socket Bolt J1BE1-0503012
397 U Nut E2DBX10S9853
399 Plain Washer J1WD011-00050
500kg
ER2-005S ER2-005L ER2-005IS/SD ER2-005IL/LD 408
Chain End
Suspender
ER2CS9408
417 Socket Bolt J1BE1-0807528
418 Lever Nut C2BA100-9074
396 Socket Bolt J1BE1-0604018
397 U Nut E5SE003S9855
399 Plain Washer J1WD011-00060
980kg
1t
(2t)
ER2-009S ER2-009L ER2-009IS ER2-009IL 408
Chain End
Suspender
ER2CS9408
ER2-010S ER2-010L ER2-010IS/SD ER2-010IL/LD 417 Socket Bolt J1BE1-0809012
ER2-020C ER2-020IC/CD 418 Lever Nut C2BA100-9074
396 Socket Bolt J1BE1-0804013
397 U Nut C2BA100-9074
1.5t
1.6t
2t
ER2-015S ER2-015IS/SD 408
Chain End
Suspender
ER2ES9408
ER2-016S ER2-020L ER2-016IS ER2-020IL/LD 417 Socket Bolt J1BE1-1010532
ER2-020S ER2-020IS/SD 418 Lever Nut C2BA200-9074
396 Socket Bolt J1BE1-0804013
397 U Nut C2BA100-9074
2.5t
ER2-025S ER2-025IS/SD 408
Chain End
Suspender
ER1ES9408
417 Socket Bolt J1BE1-1008532
418 Lever Nut C2BA200-9074
396 Socket Bolt J1BE1-1006032
397 U Nut C2BA200-9074
2.8t
3t
3.2t
ER2-028S ER2-028IS 417 Socket Bolt J1BE1-1010032
*ER2-030S ER2-030IS/SD 418 Lever Nut C2BA200-9074
ER2-032S ER2-032IS
5t
ER2-050S ER2-050IS/SD 417 Socket Bolt J1BE1-1008532
*
418 Lever Nut C2BA200-9074
* Chain End Suspender is not used for double chain fall type due to the orientation of the chain.
For double chain fall type, attach the terminal chain directly to Chain Guide A.
■
Chain End Suspender
