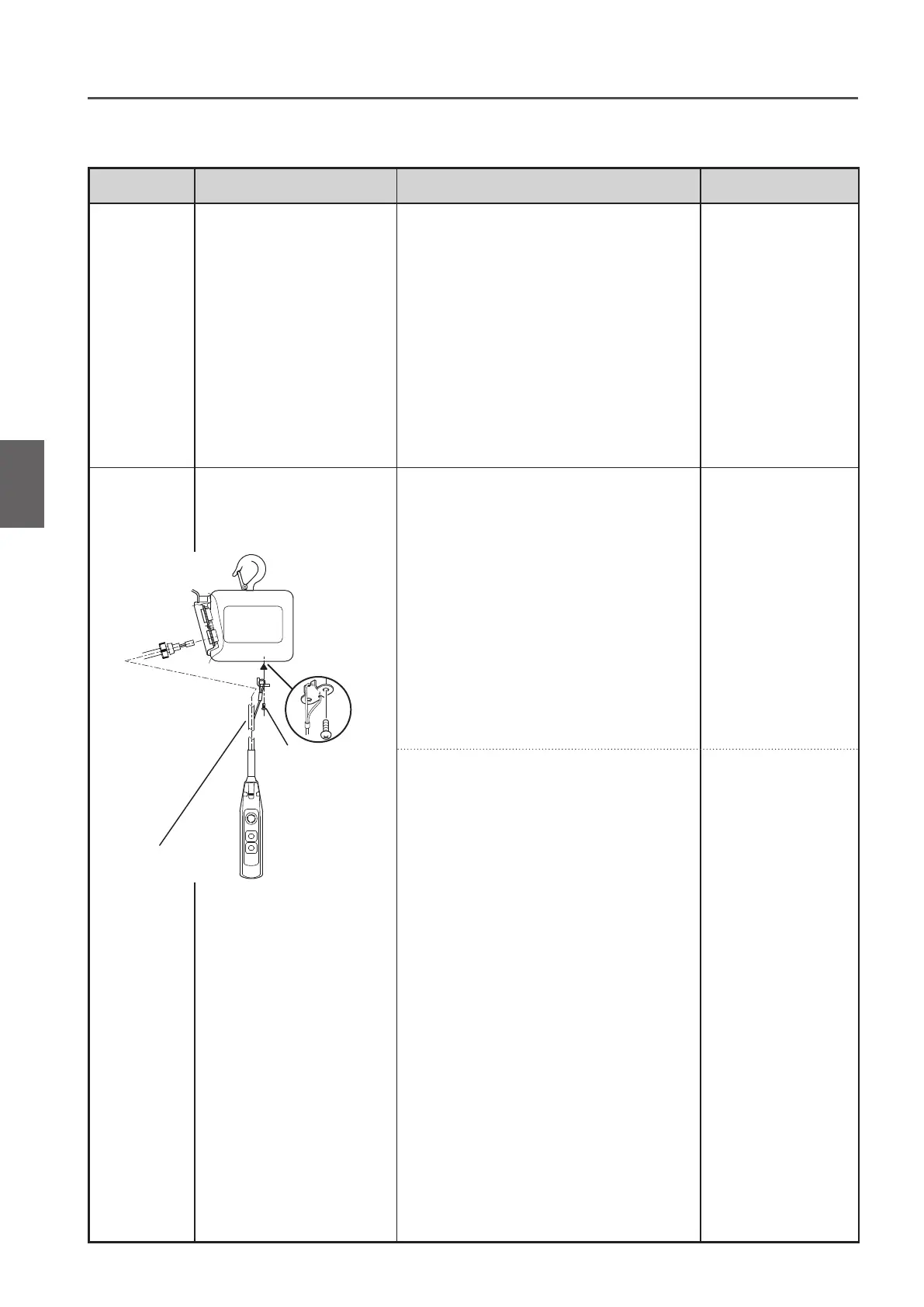

Frequent Inspection (continued)
Chapter 2 Inspection
Item Check method Criteria When failed
Push Button
Switch Body
size
• Check visually and by
operation.
• No damage, deformation and loosened bolt.
• Push Button Switches can be operated
smoothly.
• Emergency Stop Button can be operated and
cancelled.
Replace the Push
Button Switch.
Push Button
Switch Cord
• Check visually. • Push Button Switch Cord is securely
connected.
• The Protection Wire is tied with the body
size so that Push Button Switch Cord is not
strained directly even if the Push Button
Switch is pulled.
Tie the Push Button
Switch Cord and the
Protection Wire to the
body size properly.
• To have no damage Replace the Push
Button Switch Cord.
Push Button
Switch Cord
Protection Wire
■
Push Button Switch
Electric Chain Hoist (ER2) Frequent Inspection Frequent Inspection
2

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
