KITO ER2 Series User Manual

29
■

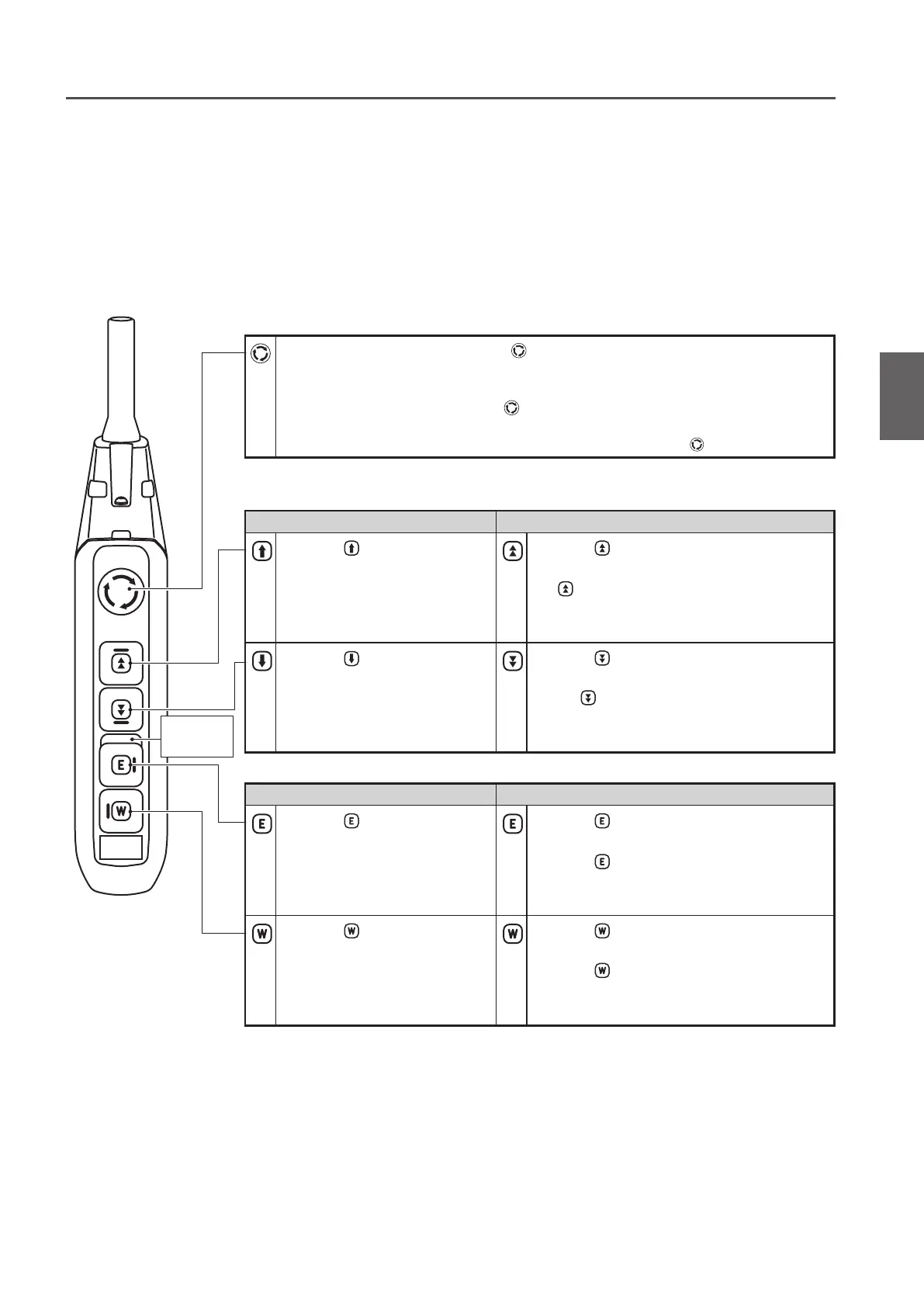

5-Push Button Switch Set
5-Push Button Switch Set is equipped with a lock type emergency stop button (VFD reset button) and lift/lower push
buttons. One-step push button switch or two-step push button switch is mounted as Lift/lower push button switches
in accordance with the specification of single speed or dual speed VFD specification. Refer to the operation method
of the corresponding specification.
Moving direction of the trolley is expressed as East/West for traveling motion in the operational instruction of the
Push Button Switch Set.
● Lift/Lower Button
● Travel Button
●
Emergency Stop Button (VFD Reset Button)
●
Operation Button
Dual
No label for the
single speed
model
1) Press the Emergency Stop Button deeply when carrying out an emergency stop or
VFD reset.
• The button is locked at the pressed end.
2) Turn the Emergency Stop Button clockwise to cancel the lock.
• Press-locked button returns to the original position.
* When the electric chain hoist is not used, press the Emergency Stop Button
deeply to the end.
Single Speed Model Dual Speed VFD Model
1) Press button to move the
trolley to the east.
• The trolley stops when the
button is released.
1) Press button to move the trolley to the
east at low speed.
2) Press
button further to the end to move
the trolley to the east at high speed.
• The trolley stops when the button is released.
1) Press button to move the
trolley to the west.
• The trolley stops when the
button is released.
1) Press button to move the trolley to the
west at low speed.
2) Press
button further to the end to move
the trolley to the west at high speed.
• The trolley stops when the button is released.
Single Speed Model Dual Speed VFD Model
1) Press button to lift the
load.
• The electric chain hoist stops
when the button is released.
1) Press button to lift the load.
2) When lifting the load at high speed, press the
button further to the end.
• The electric chain hoist stops when the button is
released.
1) Press button to lower the
load.
• The electric chain hoist stops
when the button is released.
1) Press button to lower the load.
2) When lowering the load at high speed, press
the
button further to the end.
• The electric chain hoist stops when the button is
released.
How to Use How to Operate the Push Button Switches
1
(to be continued)

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
