40

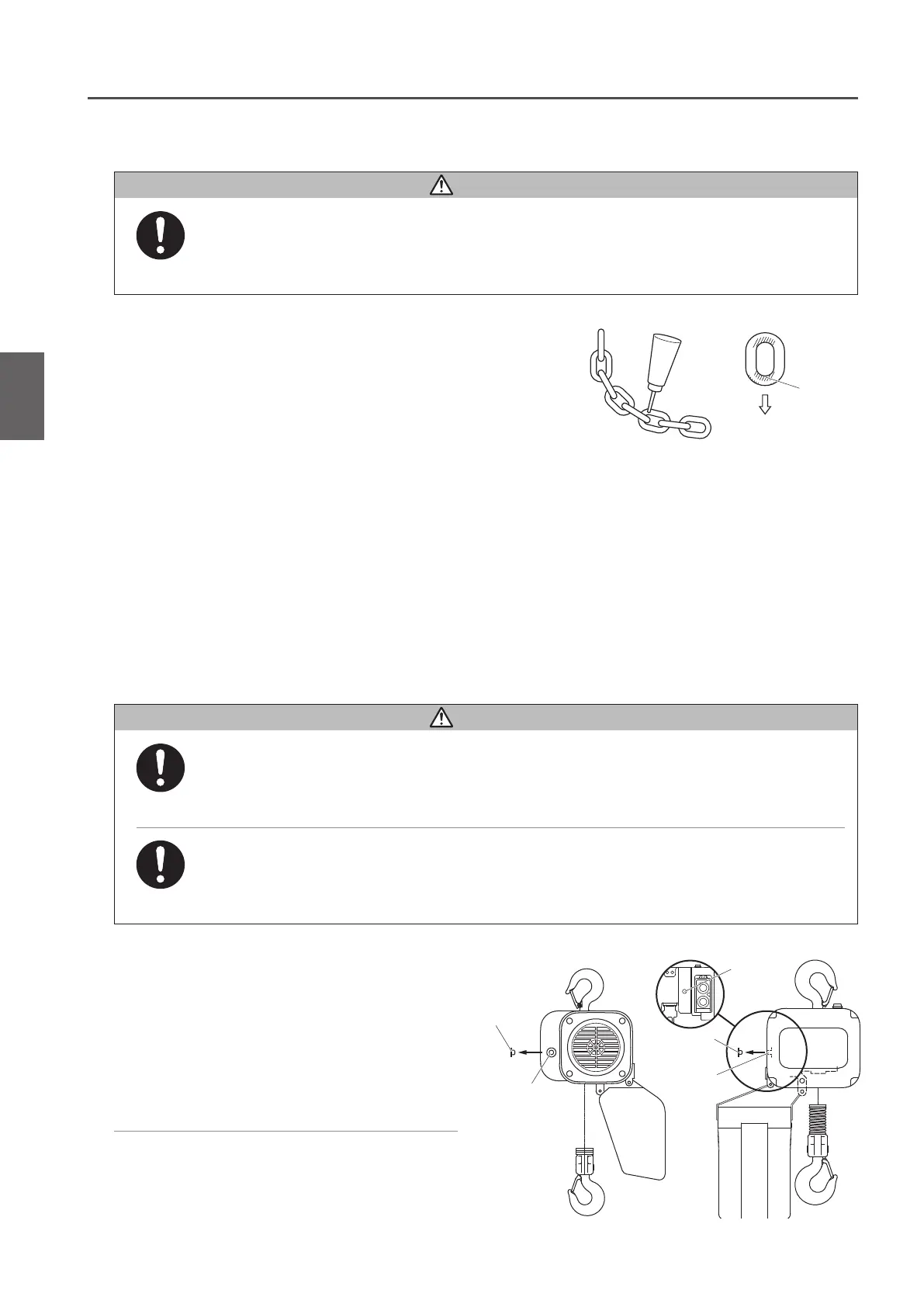

Assembling (continued)
■
Gear Oil
Inside of the Gear Case is filled with gear oil at the shipping. The level of the oil filled with specified amount comes
to the height of the oil check hole. Check the oil level visually.
●
Cheking the Gear Oil Amount
1) ER2 Body size B/C/D: Remove the Oil
Plug on the Main Body at the opposite
side of the Chain Container.
ER2 Body size E/F: Remove the Oil Plug
on the Main Body at the same side of the
Chain Container.
2) If the oil level can be seen close to the
oil check hole, the oil amount is normal.
• Be sure to apply lubricant on the Load Chain. Do not carry out oiling work in the place near the
fire or arc.
Otherwise it will result in fire.
Mandatory
• Set the body size to a level and then check the level of gear oil.
When removing the oil plug without leveling the electric chain hoist, the gear oil flows out. It will result in death or serious
injury due to fall by slippery floor.
Mandatory
• Use genuine gear oil.
Use of the gear oil other than the genuine oil (including mixed use) will result in death or serious injury due to the drop of
the lifted load.
Mandatory
Load
Applied
position
Remove dust and waterdrops attached on the Load Chain and
then apply lubricant. Application of lubricant influences on the life
of the Load Chain considerably. Apply the lubricant sufficiently.
Use the following genuine lubricant.
• Epinoc Grease AP (N)0 (Nippon Oil Corporation)
• Consistency No.0 (Industrial general lithium grease)
Release all loads from the Load Chain. Apply the lubricant to the
linking portion of the Load Chain that engages the Load Sheave
and the Idle Sheave (hatched area).
After application of the lubricant lift/lower the electric chain hoist
without load to spread the lubricant on the Load Chain.
Oil
Plug
Oil Check
Hole
Oil Check
Hole
Oil
Plug
Oil Check
Hole
Body size ER2-E/FBody size ER2-B/C/D
Chapter 1 Handling the Product
1
AssemblingAssembling Parts to Electric Chain Hoist
DANGER
DANGER
To Next Page
