• When using the electric chain hoist, be careful not make the Load Chain at no load side impeded
or entangled.
Failure to comply with these instructions may result in death or serious injury.
Mandatory
(to be continued)

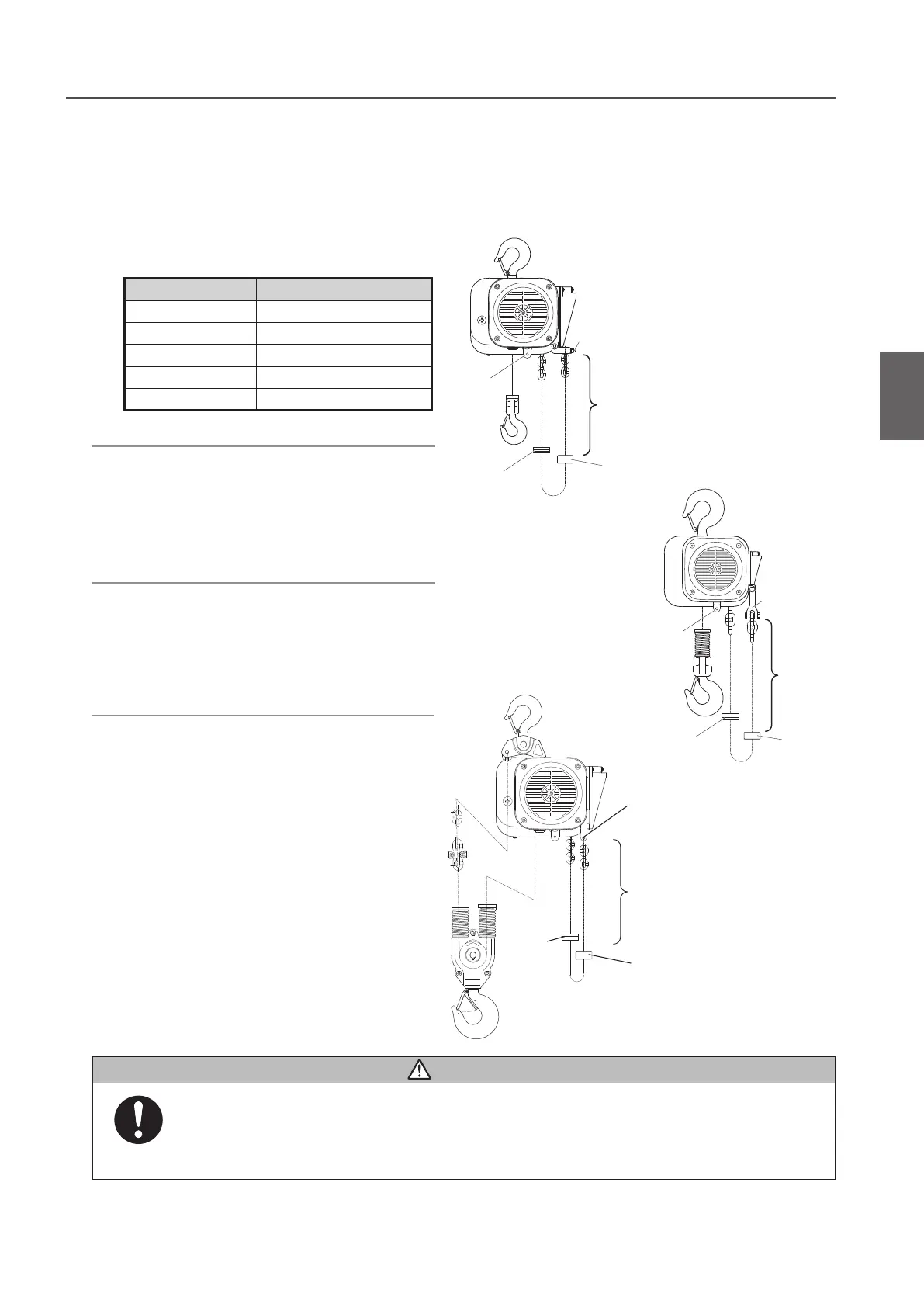

Assembling Assembling Parts to Electric Chain Hoist
1
DANGER
●
Case without Chain Container
When using the electric chain hoist without the Chain Container, take the following measures.
2)
Mount the End Link of the no load side of
the Load Chain to the Chain End Suspender
with a Socket Bolt and a lever nut.
• Chain End Suspender is optional. Please
specify the Chain End Suspender when placing
an order of the electric chain hoist.
3) Combine the Chain End Suspender and
the body size of the electric chain hoist
(Chain Guide A) with a Socket Bolt and
lever nut.
• Be careful not to twist the Load Chain.
Body size ER2-B/C/D/E
1) Mount the Stopper at the no-load side of
the Load Chain.
*
Number of Links between Chain End Suspender
and the Stopper
Body size Number of Links
B 21
C 15
D 15
E 15
F 15
*
Tightening torque for the Stopper Bolt: 10 N·m
<
Double Chain Fall type>
Chain End Suspender is not used
for double chain fall type due to the
orientation of the chain.
Attach the terminal chain link directly to
Chain Guide A.
*
When ordering a Chain End Suspender, please
refer to the part codes. (P121)
Chain End
Suspender
Chain
Guide A
Cushion
Rubber
*Number of
links
Stopper
Chain
Guide A
Cushion
Rubber
*Number
of links
Stopper
Cushion
Rubber
Chain
Guide A
Body size F
Chain End
Suspender
Stopper
*Number
of links
To Next Page
