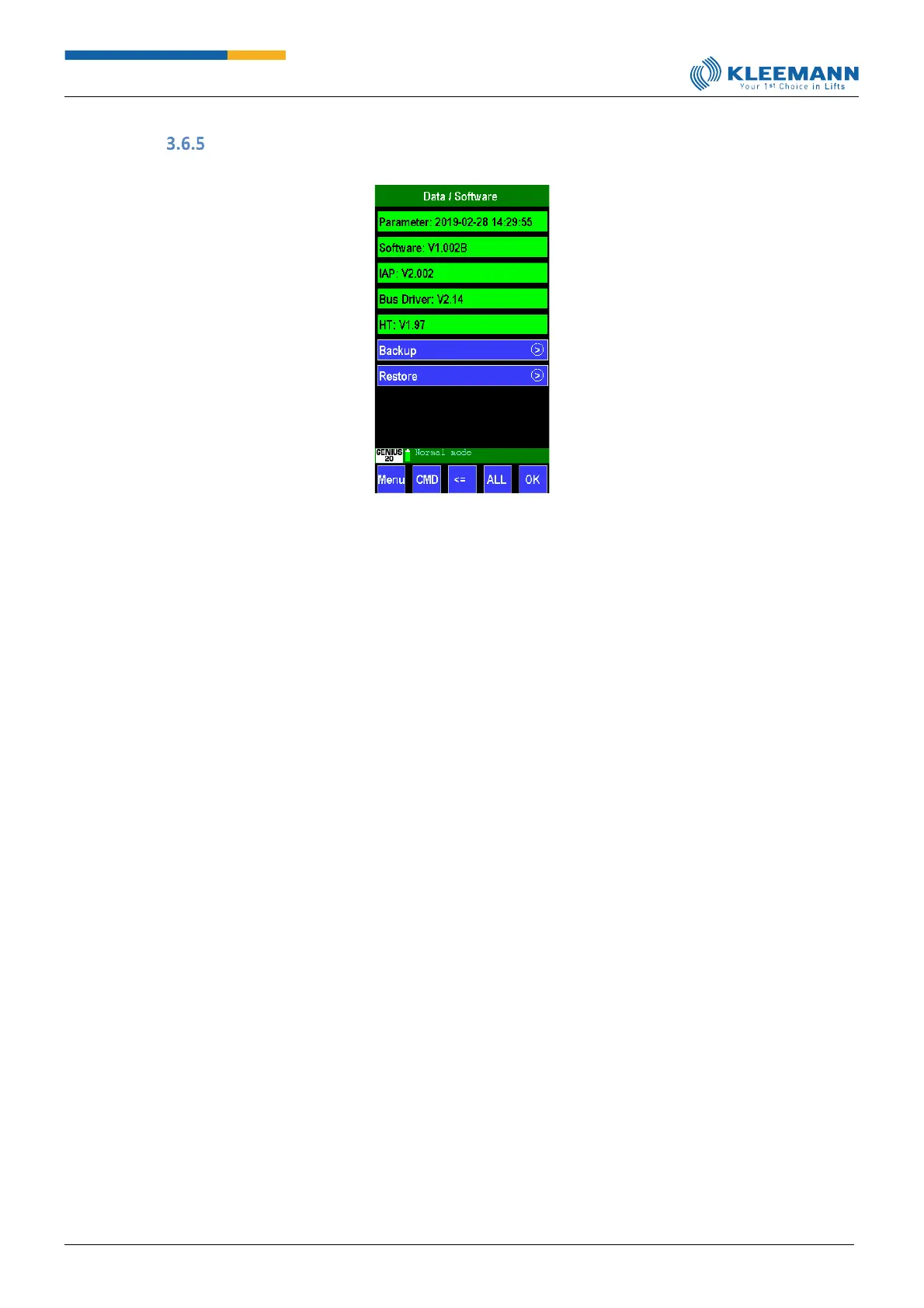

Data / Software
[Direct access: CMD -> 7019]
This page shows all currently installed software products. These are:
❑ Date and time of the last saved set of parameters
❑ the GENIUS20 software version currently at use
❑ the central processing units “In-application-processor software” version; this is the
controller’s boot loader
❑ the bus driver version used on the GENIUS20 controller board
❑ the version of the connected hand terminal
All software types can be read in as a file.
General information:
Media SD-card and USB-flash drive need to be equipped with FAT32 data system and must contain one
partition only!
Folder structure (for both SD-card and USB-flash drive):
❑ If there is no data stored on any of the memory media, a new action such as e.g. data back-
up, parameter saving etc. will automatically induce a new “GENIUS20” folder to be created
in the root. This folder will then be the reference for all data!
❑ If a lift ID was assigned, all data referring to the installation at hand will be saved in a
corresponding subdirectory. If no lift-ID is provided for, no further partitions will be made.
❑ Unlike before, saved data will no longer be stored in a “SAVExxx” folder but labelled with
current date and time according to a “YYMMDD_HHMMSS” format; i.e. always a two-digit
year-month-day_hour-minute_second. The back-up folder is below the lift-ID folder and
takes approximately 2s.
GENIUS20 enables saving software, parameters and error memories on a micro-SD card as well as
restoring software and parameters.
