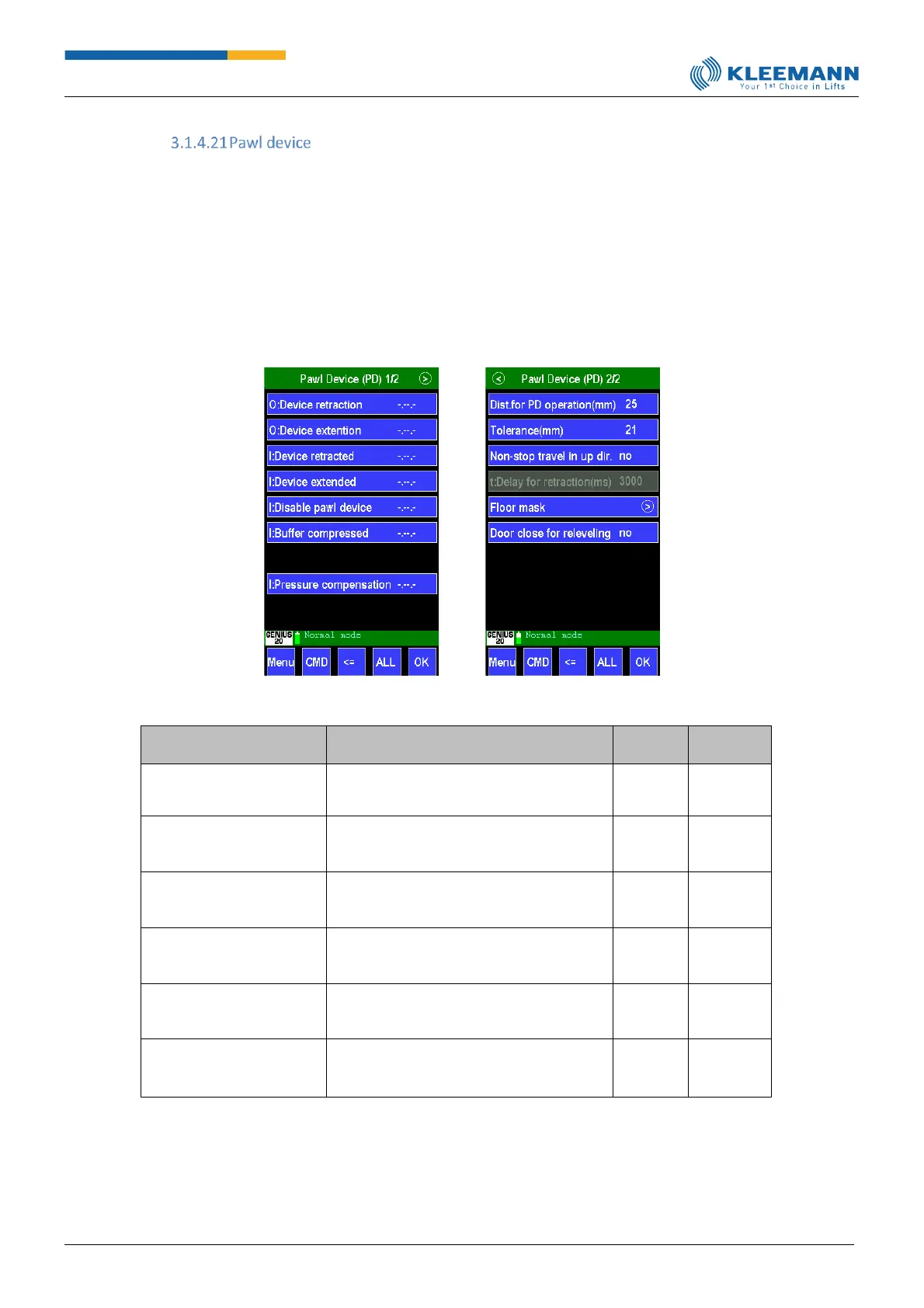

A pawl device is a device which fixates the lift at the rails or shaft walls, thereby preventing it from
sinking during a loading procedure. This in turn means that when the lift is to resume travel, it first
needs to be lifted in order for the holding bolts to retract, and then start travelling to the desired
landing.
When stopping, the lift makes a halt (30-50 mm) above the landing in order to enable the pawling
device to activate and extend. Afterwards, the lift descends in regulating speed until it touches down
on the device.
[Direct access: CMD -> 7159 -> 7217]
Parameter
[Direct access]
Description
Default
value
Value
Range
O:Device retraction
Definition of an output for controlling the
impact buffer (retracting).
O:Device extension
Definition of an output for controlling the
impact buffer (extending).
I:Device retracted
Definition of an input for signaling
retracted impact buffers.
I:Device extended
Definition of an input for signaling
extended impact buffers.
I:Disable pawl device
Definition of an input for deactivating the
pawl device.
I:Buffer compressed
Definition of an input for recognizing when
the car touches down on the bolts; e.g. via
a push switch.
