Section 12

Parts List

20413146

8-2012/Rev 12

12-9

Table 12-4

Sealing Head Assembly

72110979

Item

Part

Number Description Quantity Item

Part

Number Description Quantity

1 72110961 Sealing Head Body 1 5 05116603 Discharge Poppet Valve 1

2 72112002 Inlet Poppet Valve 1 6 72106104 Button Head Screw, 8-32 x 3/8 2

3 05116595 Gland Nut 1 7 05147863 Compression Spring 1

4 05116579 Seat 1 8 72110953 Poppet Retainer 1

9 05119839 Poppet Pin 1

05133335 Rebuild Kit

Includes Items 4, 5, 7 and 9

72125203 Rebuild Kit

Includes Items 2, 4, 5, 6, 7 and 9

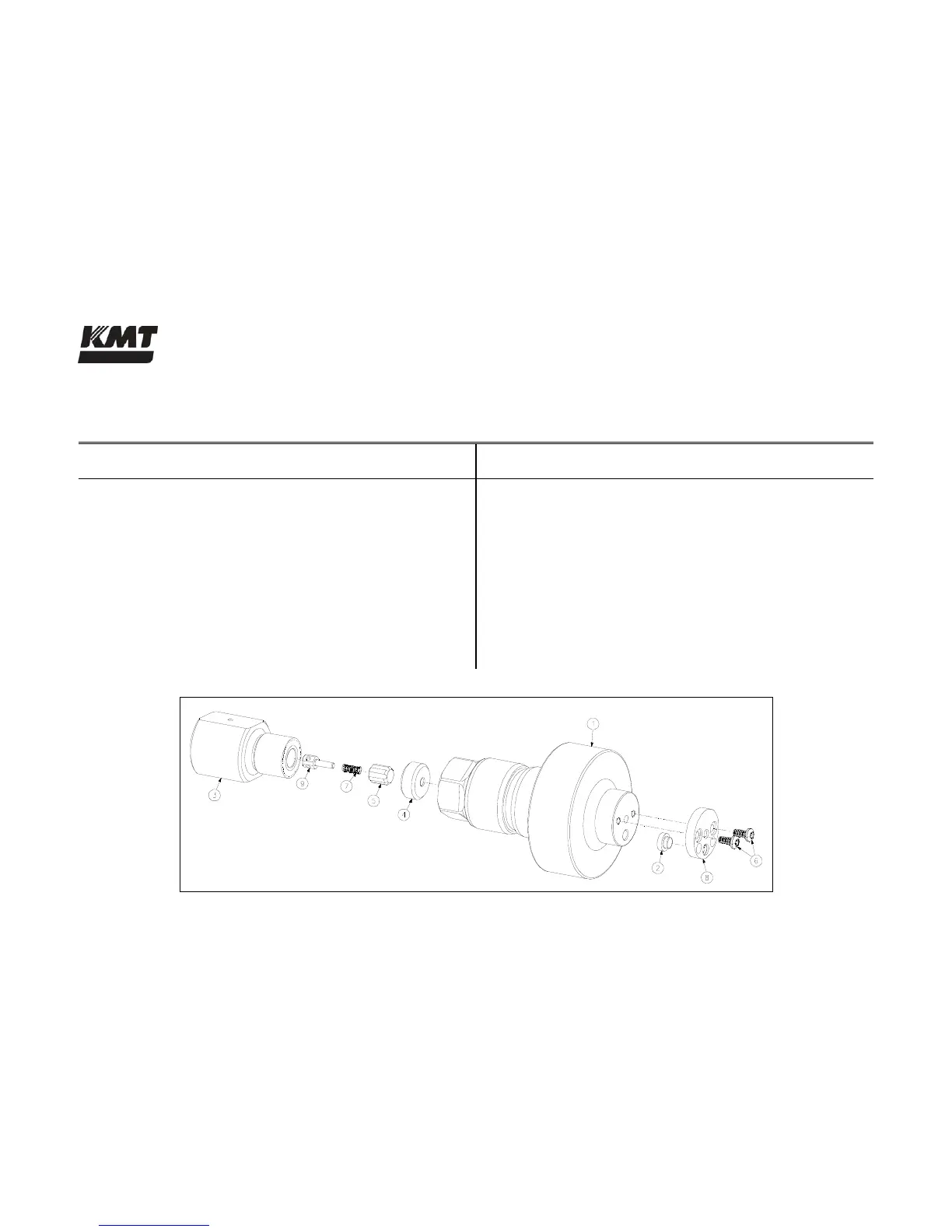

Figure 12-4: Sealing Head Assembly
