7 Troubleshooting

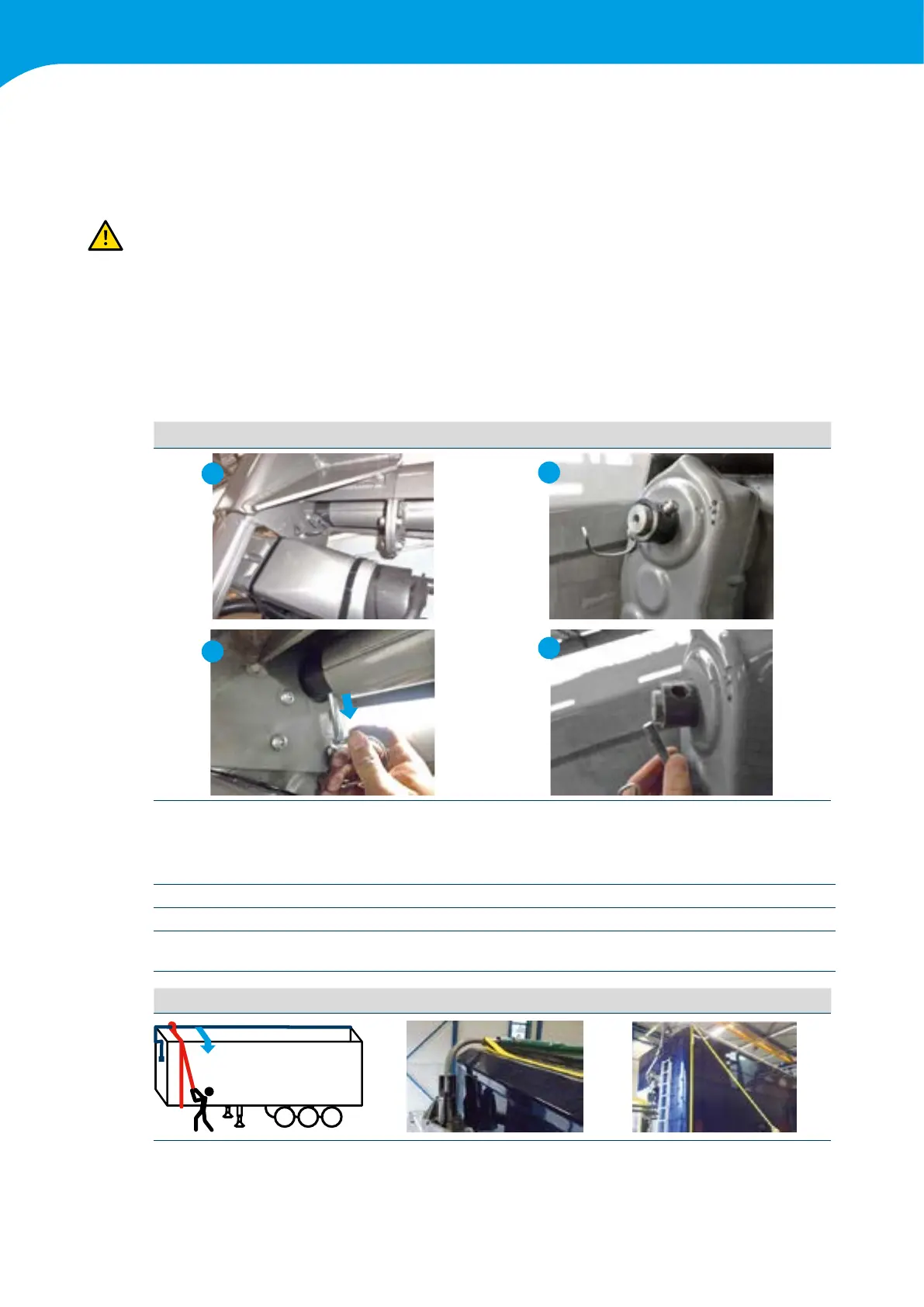

7.4.2 Emergency procedure PowerSheet
As soon as the emergency operation has been used, a certied service outlet must be contacted immediately
Take appropriate safety measures before any actions are performed and carefully read this description.
ATTENTION! Never let the motor control unit operate the sheet to the fully open or closed position when it is
controlled directly. If the malfunction occurs in a completely open or closed position of the sheet, rst remove
the motor connection pins.
Defective/motor
Motor connection pins
Theconnectionbetweenthemotorandarmconsistsoftwopins.Ifthearmorthemotorisdamaged,thetwopins
mustbedismountedsothatthesheettubeisfreetoturn.Itisimportanttostartwiththeinnerpin,thentheouter
pin.
Inner pin Outer pin
1
3
2
4
Close the roof sheet
Three straps are required to close the sheet.
1 Wrap the strap around the arm and attach the hook to the edge at the bottom left.
2 Pullontheothersidejustuntiltheroofsheettubeisontheedge
3
Nowcarefullypullthetubeovertheedge.Iftherearpartofthetubedoesnotfollow,pullitthenoverthe
edge with a strap.
Step 1 Step 2
