Knapen Trailers K200 - Page 71

71
User Manual EN | v201906
Secure

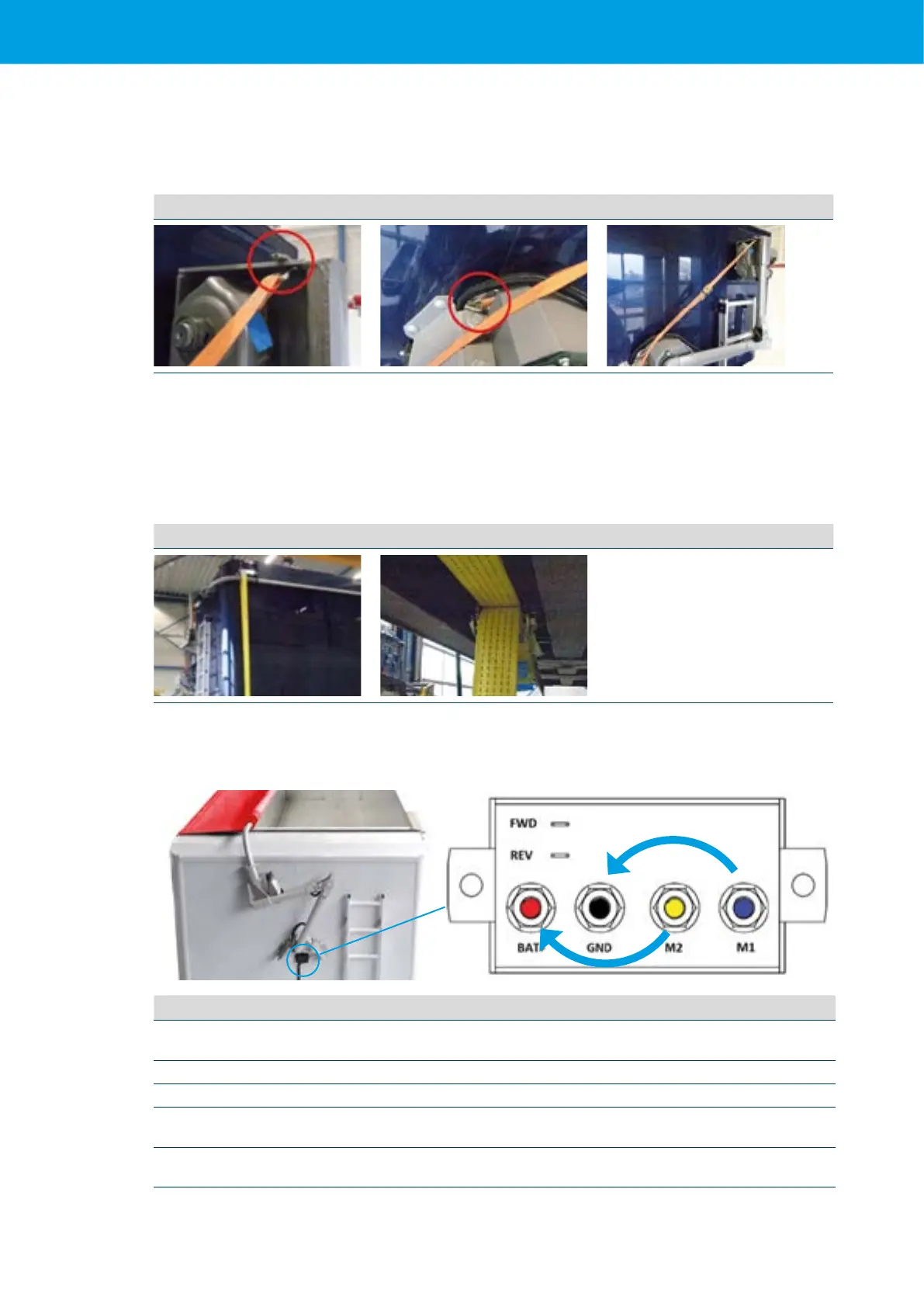

Take a small strap. Hook one side into the top hole of the Powersheet (1). Turn it once around the attachment point
and hook the other end into the hole where the cable has been passed through (2). Now tension the strap so that
the sheet tube is pulled against the wall (3).
Step 1 Step 2 Step 3
Secure sheet
Front:Attachontheleftunderthehook(1)ofthestrapormounttheratchetsideofthestrapatthatposition(2).
Pull the sheet tube down by tightening the strap.
Rearend:Takealongstrapandhookitatthebottomrightorinstalltheratchetofthestrapatthatposition.Then
fold the strap over the rear of the trailer and attach the other side to the bottom left in the rear. Tension the strap so
that the sheet tube is pulled against the wall.
1 2
Defective motor control unit
Step
1 Pulltheconnectorcompletelyoutsothatthesystembecomesde-energised.
Disassemble the motor control cover
2 Take the motor cable from Pin M1 and screw it together with GND
3 Take the motor cable from Pin M2 and screw it together with BAT+
4 Inserttheconnectorandimmediatelycheckwhetherthetubeturnsintherightdirection.Ifnot,remove
the connector immediately and swap the M1 and M2 cables.
5 Just before the sheet is at full tension, remove the connector so that the motor and/or arm is not
damaged.
