2.6 Nameplate

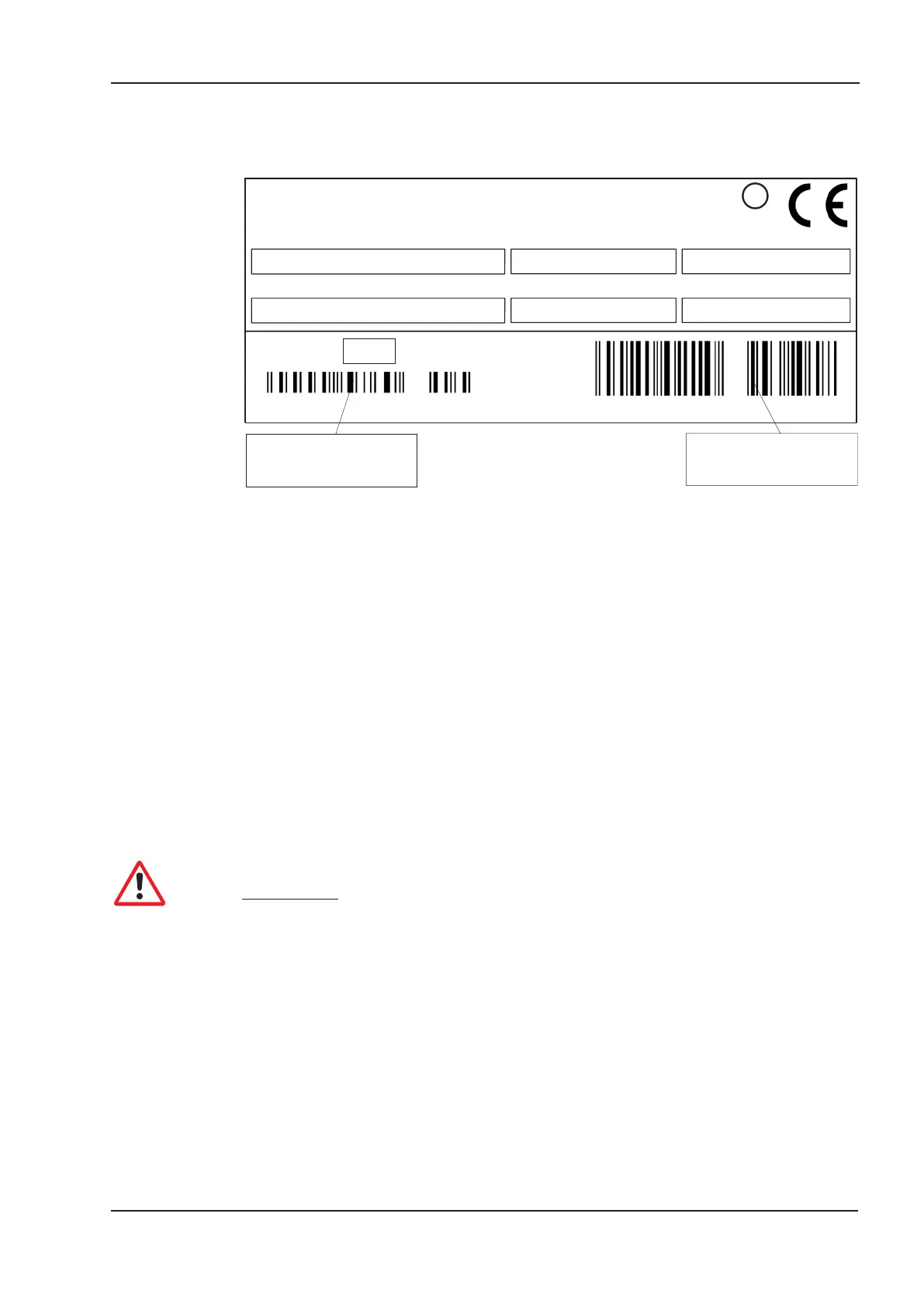

The nameplate depicted below is attached to the side of the servo amplifier.
2.7 Equipment description
2.7.1
Package as supplied
If you order a SERVOSTAR 400 series amplifier from us, you will receive:
— SERVOSTAR 4xxM (master)
— Mating connectors for X0, X1, X3, X6
— Protective cover for the axis-side (required only once per system)
— Assembly and Installation Instructions
— Setup software DRIVE.EXE and online documentation on CD-ROM
alternatively
— SERVOSTAR 4xxA (axis module)
— Mating connector for X3, X6
— Short-form instructions
The mating SubD connectors are not part of the package supplied!
Accessories:
(must be ordered separately if required)
— Electrical add-on fan (for max. 2 axes, required for SERVOSTAR 4x6)
— Synchronous servomotor (linear or rotary)
— Motor lead (pre-assembled), or motor cable as cut-off length + loose connectors
(motor- and amplifier-side)
— Feedback cable (pre-assembled) or both feedback connectors, loose with
feedback cable as cut-off length
— External regen resistor (ð p.65)
— Communication cable to PC (ð p.51) for parameterizing the master and any
attached axis modules
— Power cable, control cables, fieldbus cables (as lengths)
