6.4 Add-on fan
Electrical add-on fan for two axes to achieve rated power even under unfavourable
ambient conditions, required for SERVOSTAR4x6.
To mount the fan, just hook it in the designated slots at the bottom of the SERVOSTAR
and screw the fixing bolt into the thread in the housing. The electrical connection takes
place automatically when mounting the fan.
Please consider that a mounted fan increases the required space underneath the
amplifier! (Þ p. 25)

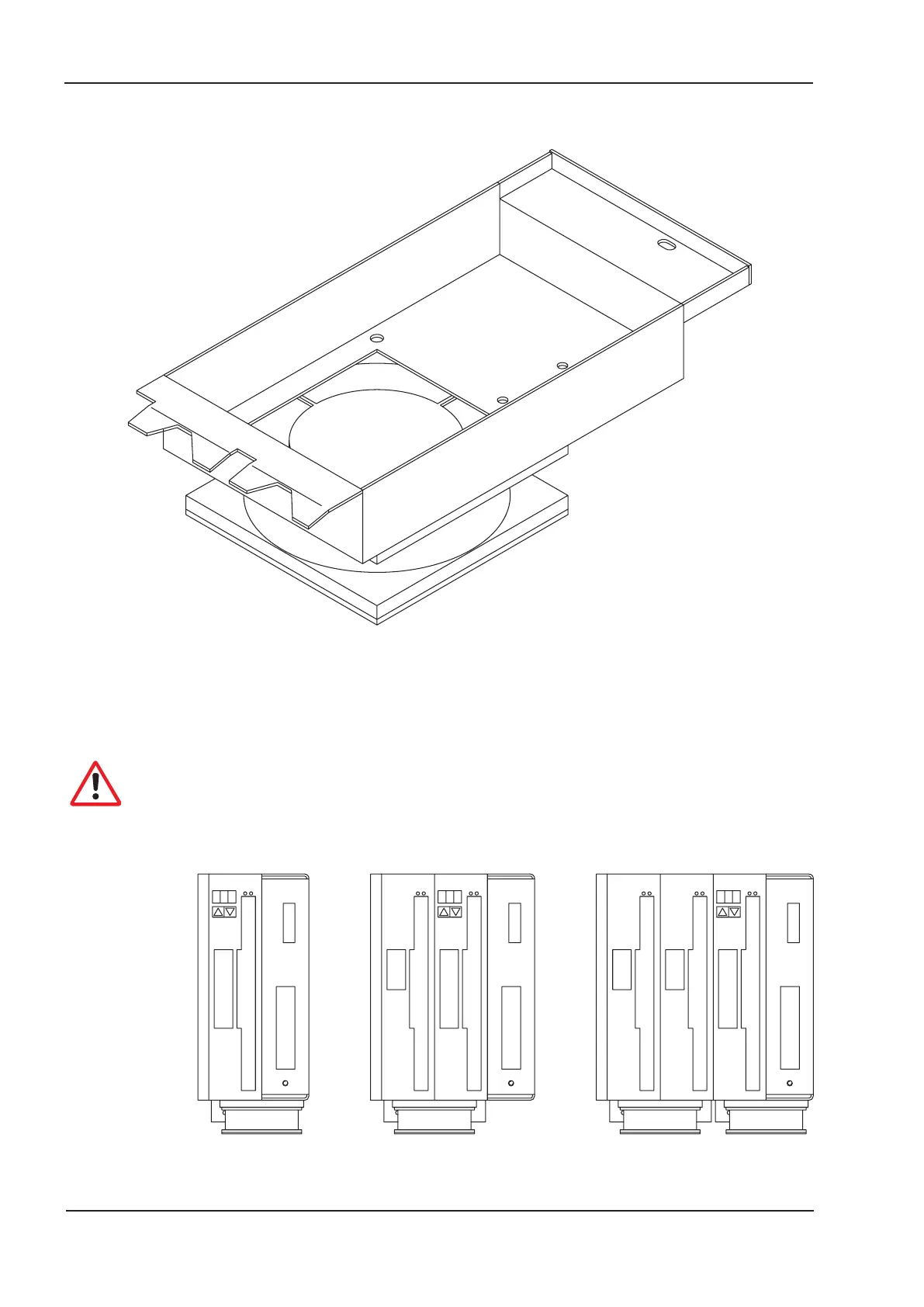

The drawing below shows, how the fan should be mounted. With an odd number of axes
(master included), the fan must also cover the power supply unit at the master.
66 SERVOSTAR
®
400 Installation Manual
Accessories 07/05 Kollmorgen
Single master
Master with 2 Axis modules
Master with 1 Axis module
