Kollmorgen SERVOSTAR 400 Assembly & Installation

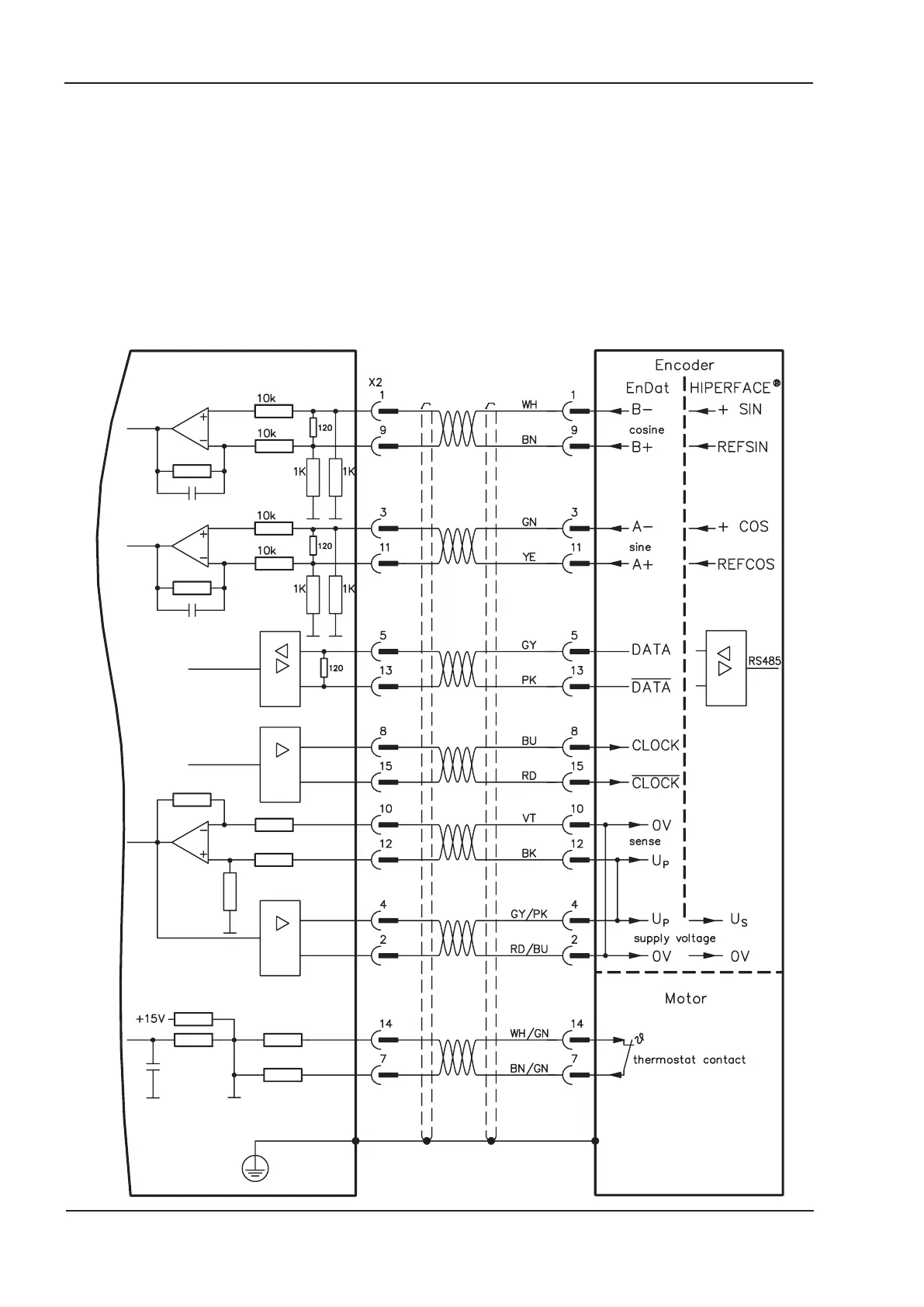

4.6.2 Encoder connection (X2)
As an option, the motors can be fitted with a single-turn or multiturn sine-cosine encoder.
Preferred types are the ECN1313 and EQN1325 encoders. The encoder is used by the
SERVOSTAR 400 as a feedback device for drive tasks that require highly precise positio
-
ning or extremely smooth running. If lead lengths of more than 25m are planned, please
consult our customer support.
The thermostat contact in the motor is connected via the encoder cable to the
SERVOSTAR 400 and evaluated there.
— Output voltage Up 5 V / max. 250 mA
— Output voltage Us 11V / max. 250 mA
40 SERVOSTAR
®
400 Installation Manual
Interfaces 07/05 Kollmorgen
SERVOSTAR 400
SubD15
17-pin round
