1.4. Drain connection
The oven is equipped with a water drain; this
device is placed at the bottom of the rear part
of the appliance and has a tube with diameter
of 40 mm.

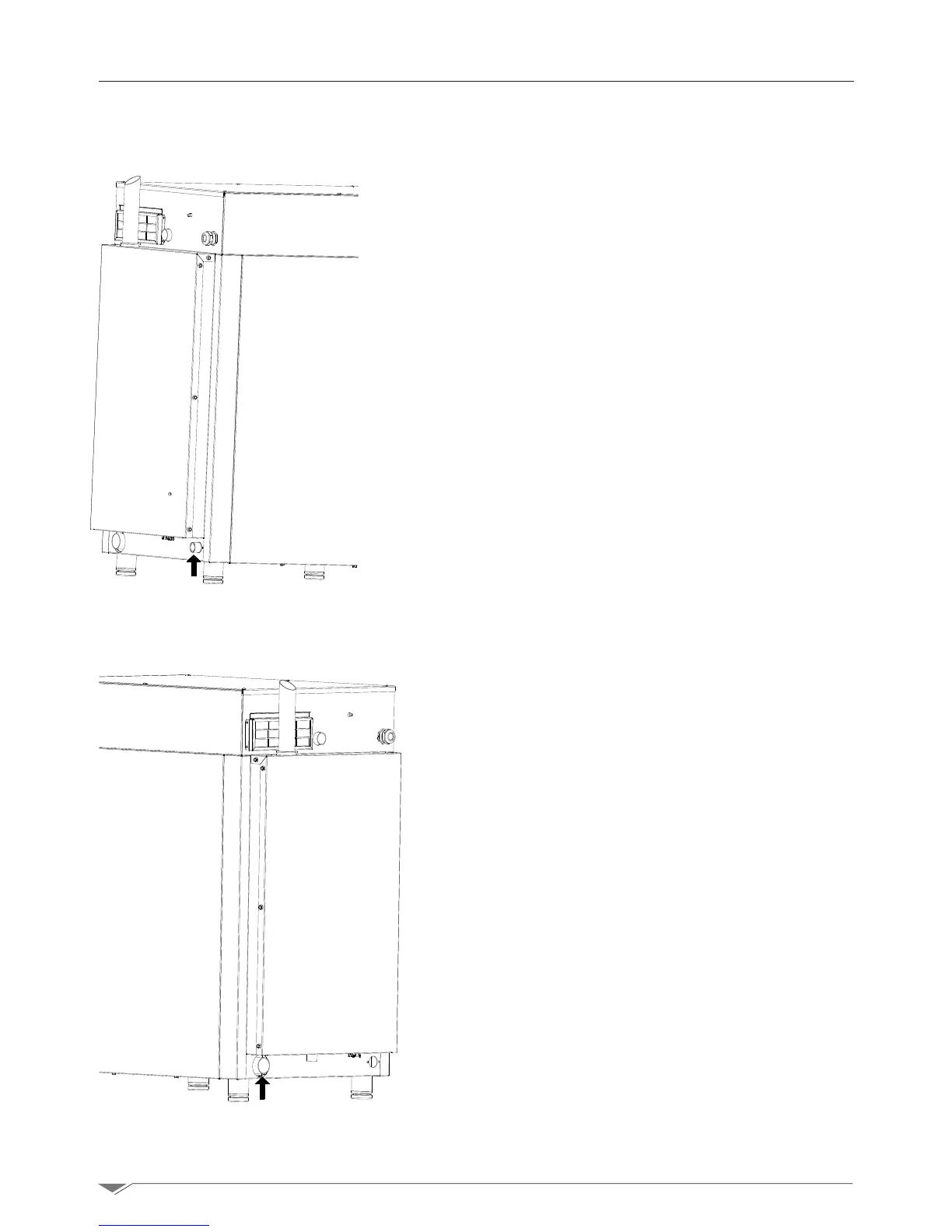

Connect the pipe of the draining device (g.
5, ref. A).The drainingsystemconsists ofa
trap; it is advisable to connect the pipe to an
open funnel.
Make sure the internal trap is full of water,
otherwisellitupwithwaterthroughthedrin
present in the cooking chamber.
pipe.
Ensure that the shut-off valve is positioned so
that it can be easily operted by the operator
at any time.
Caution: if the water supply pipe gets
damaged, it should be replaced with a new
one while the old damaged one should not be
used again.
