Kongsberg EA440 - Installing the WBT in a 19 Cabinet

392616/B
33
InstallingtheWBTina19"cabinet
TheWBTcanbeinstalledina19-inchcabinetbymeansofanoptionaldrawer.You
willneedonedrawerforeachWBTunit.
Prerequisites
ItisassumedthattheWBTCabinethasalreadybeeninstalled.
Context
IfyourEA440comprisesmorethanoneWBT,you
canusetheoptionalWBTCabinet.This19"cabinet
holdsmaximumsevenWBTswithpowersupplies,
aswellasanEthernetswitchandapowerdistribution
panel.EachWBTistheninstalledonadedicated
WBTDrawerintherack.

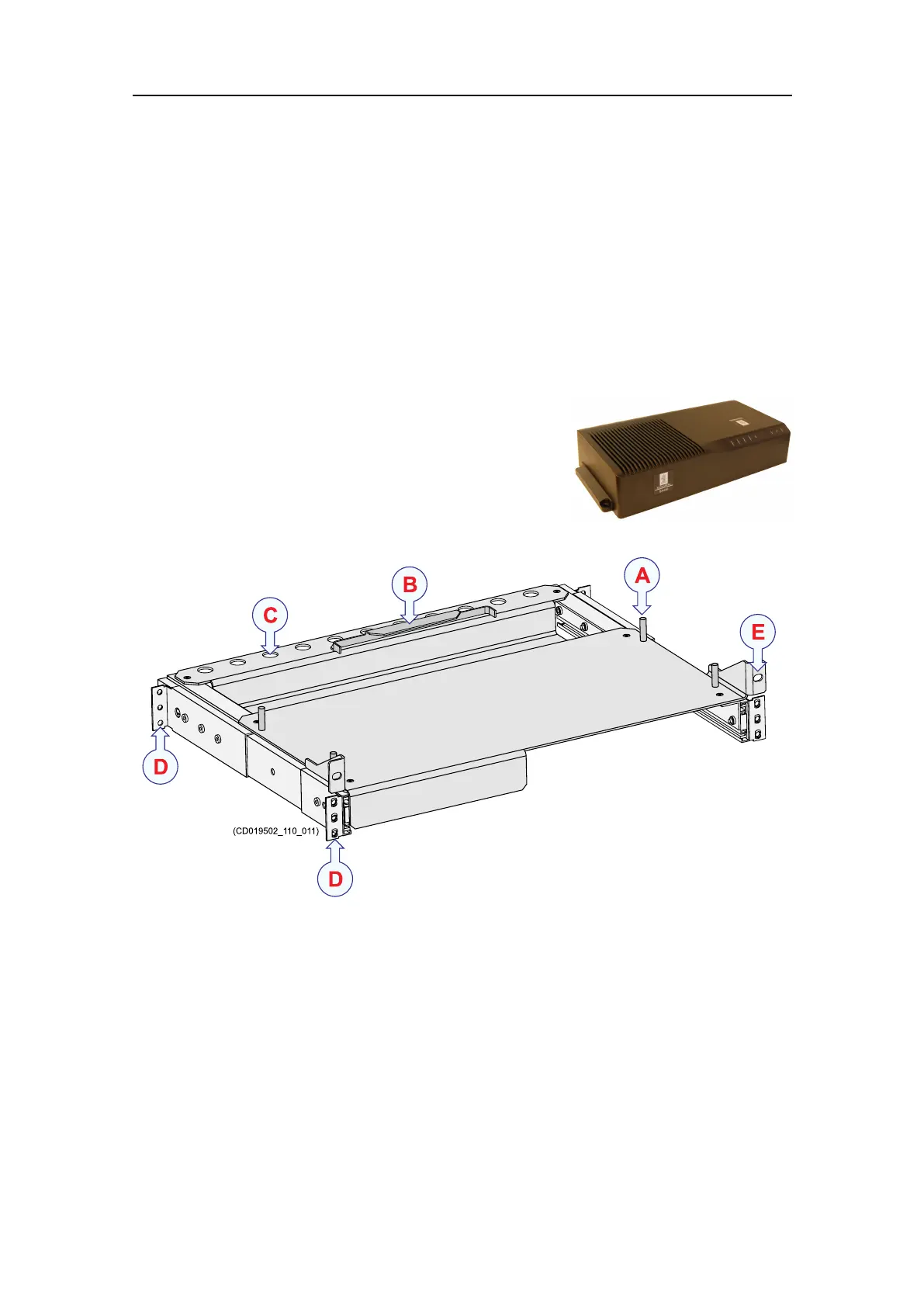

AMountingboltsfortheWBT
BMountingbracketforthepowersupply
CHolesforfasteningandsecuringthecables
DMountingboltsforthedrawerassembly
EMountingboltsforthedrawer
Procedure
1PlacetheWBTontheWBTDrawer.
2Mountthetransceiverandthepowersupplyusingthebrackets,boltsandnuts
provided.
InstallingtheEA440hardwareunits
