Kongsberg EA440 - Page 39

392616/B
39
Context
WerecommendthatyoumountalltheemptydrawersintotheWBTCabinetbefore
youmounttheWBTunitoneachdrawer.

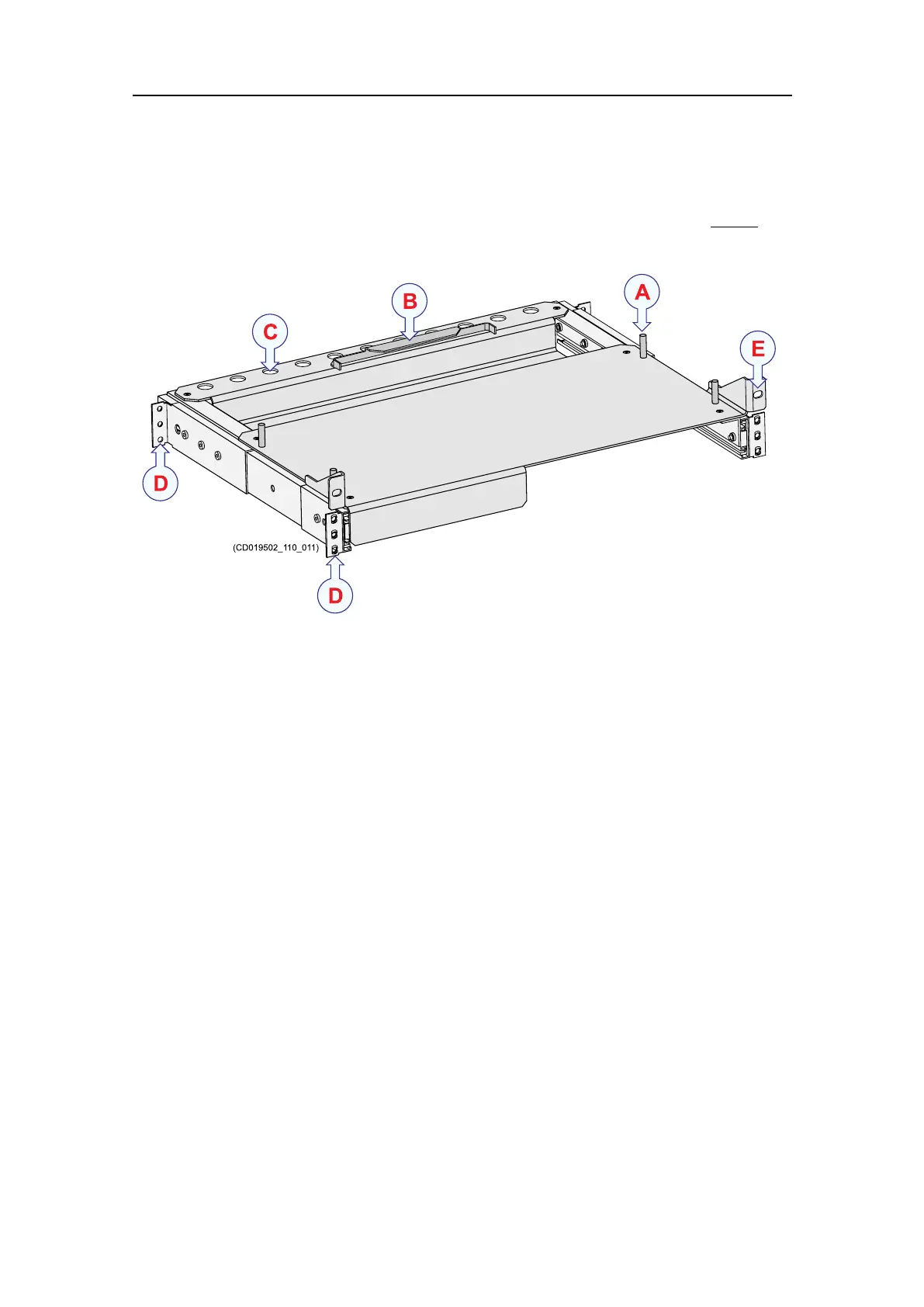

AMountingboltsfortheWBT
BMountingbracketforthepowersupply
CHolesforfasteningandsecuringthecables
DMountingboltsforthedrawerassembly
EMountingboltsforthedrawer
Procedure
1Decidewhereinthecabinetyouwishtomountthedrawers.
2Mounteachdrawerusingsixboltsoneachside(D).
3Pulloutthedrawer.
4Removethepowersupplybracket(B).
5Placethepowersupplyonthedrawer,andmountthebracket(B)tosecureit.
6MounttheWBTusingtheboltsprovided(A).
Furtherrequirements
Connectthecables.
InstallingtheEA440hardwareunits
