500 SERIES INSTALLATION MANUALJULY 2016 PAGE 19
Step 4: Trim/Lift Pump Installation (continued)

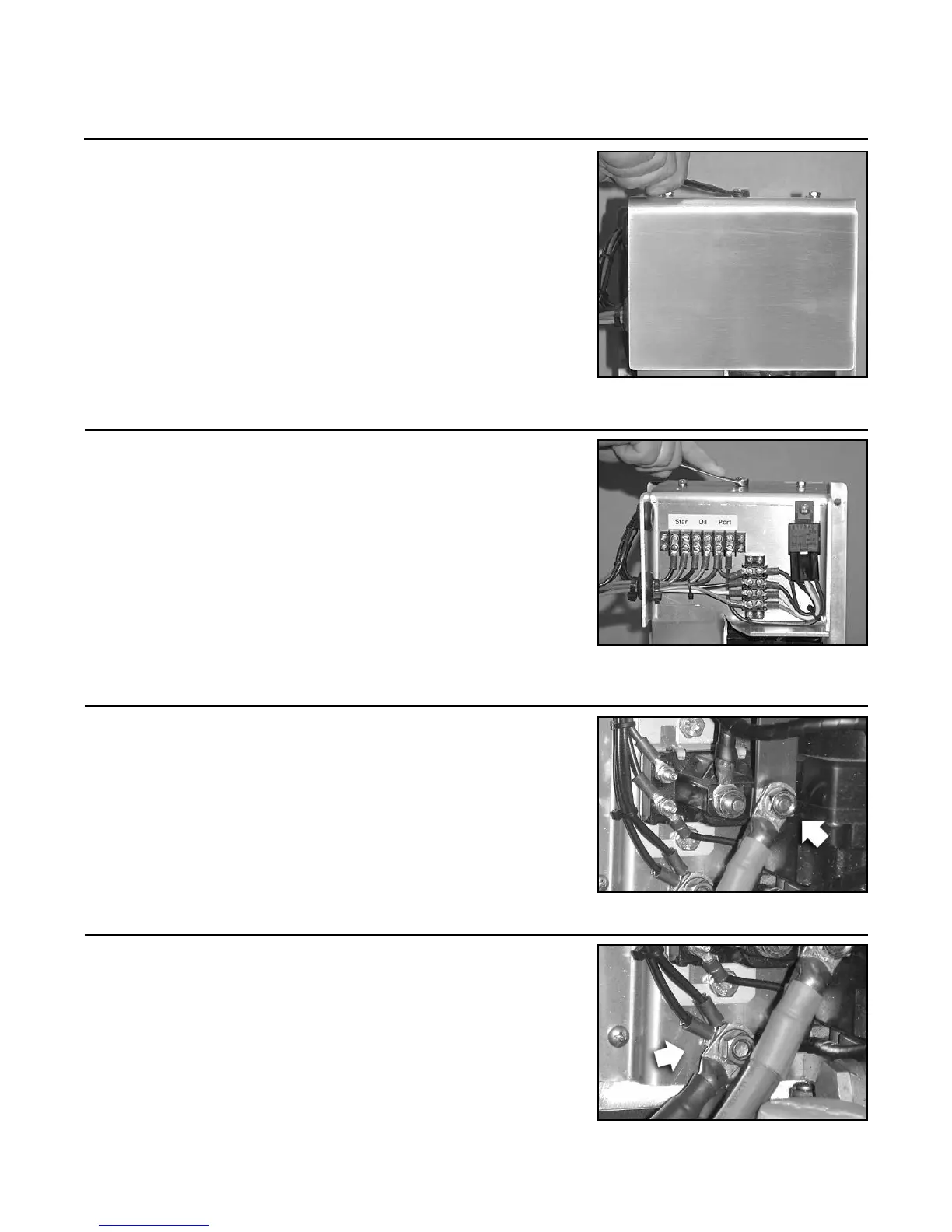

4.3 Remove the cover of the trim/lift pump assembly by
removing the front three (3) bolts and lock washers.
4.4 Remove the three (3) rear bolts and lock washers and
remove the top portion of the trim/lift pump assembly
bracket.
4.5 Attach the positive trim/lift pump power feed (from the
breaker/fuse unit) to one of the solenoid bolts on the link-
bar side.
NOTE: Coat terminal with corrosion protectant.
4.6 Attach the negative trim/lift pump power feed to the
ground bolt.
NOTE: Coat terminal with corrosion protectant.
FIGURE 4E
FIGURE 4F
FIGURE 4G
FIGURE 4H
